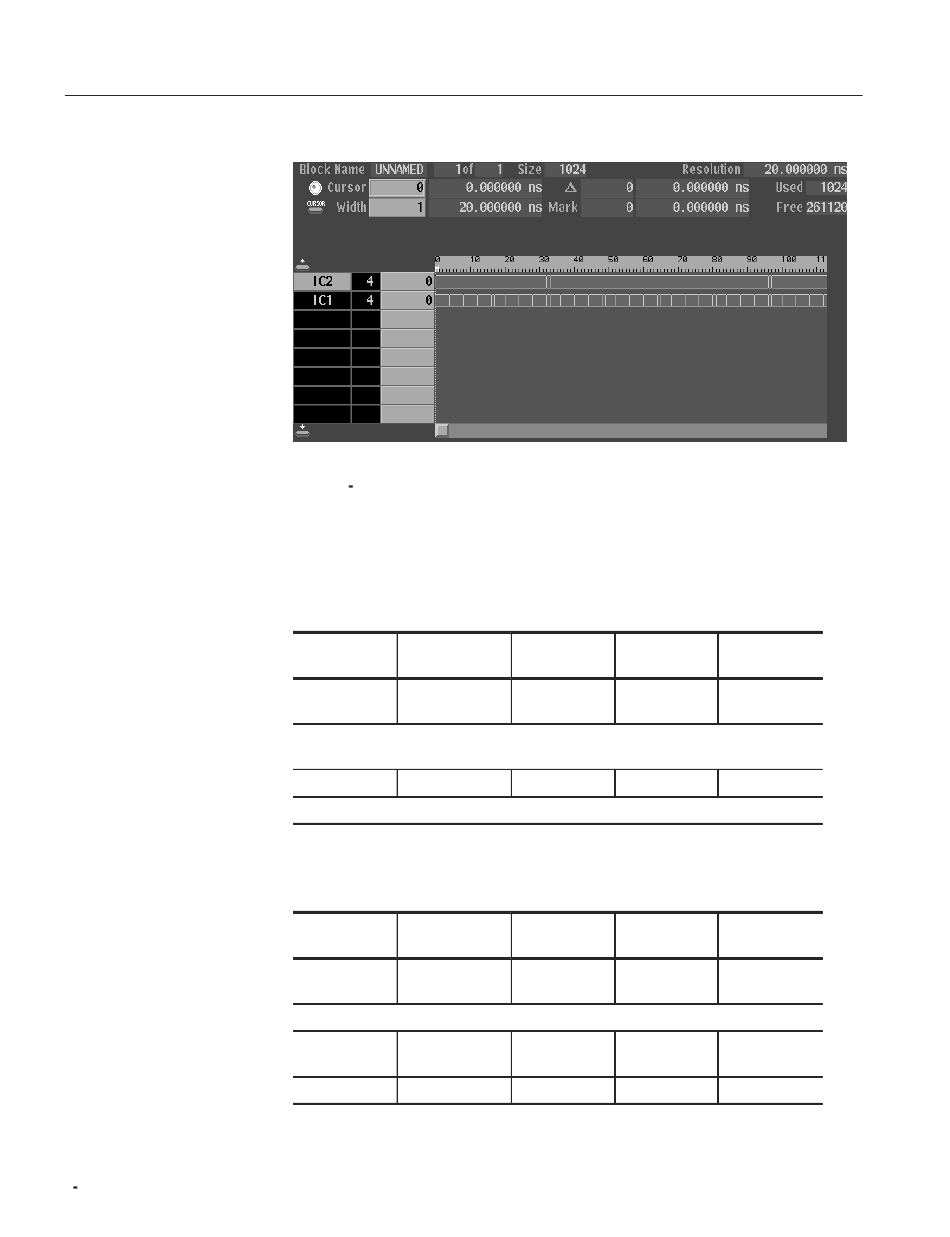

Figure 2-24: Group Data - Tektronix DG2030 User Manual

Operating Examples
Allocating Data Bits to
Output Channels
2 42
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Figure 2 24: Group data
3. Allocate data bits to output channels CH0 to CH7.
a. Clear the output channel for channels CH0 to CH7.
Menu button Bottom button
Output
Condition
Press the front panel up and down arrow buttons to select channel CH0 from the Output
assign list.
Clear the CH1 and CH7 allocations in the same manner.
b. Turn off the output impedance control for each channel.
Menu button Bottom button
Select CH0 from the list displayed in the screen using the knob on the front panel.
Popup menu Side button
Assign
Release
Popup menu Side button
Control
Condition
Change Inhibit
Control
Select OFF OK
Front panel
button
Front panel
button
DG2030 User Manual
