Status Display; Diag Menu - Tektronix DG2030 User Manual

Status Display

Diag Menu

DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Displays the instrument's model number, the firmware version, the instrument's
configuration, and other information. See Figure 3-66.

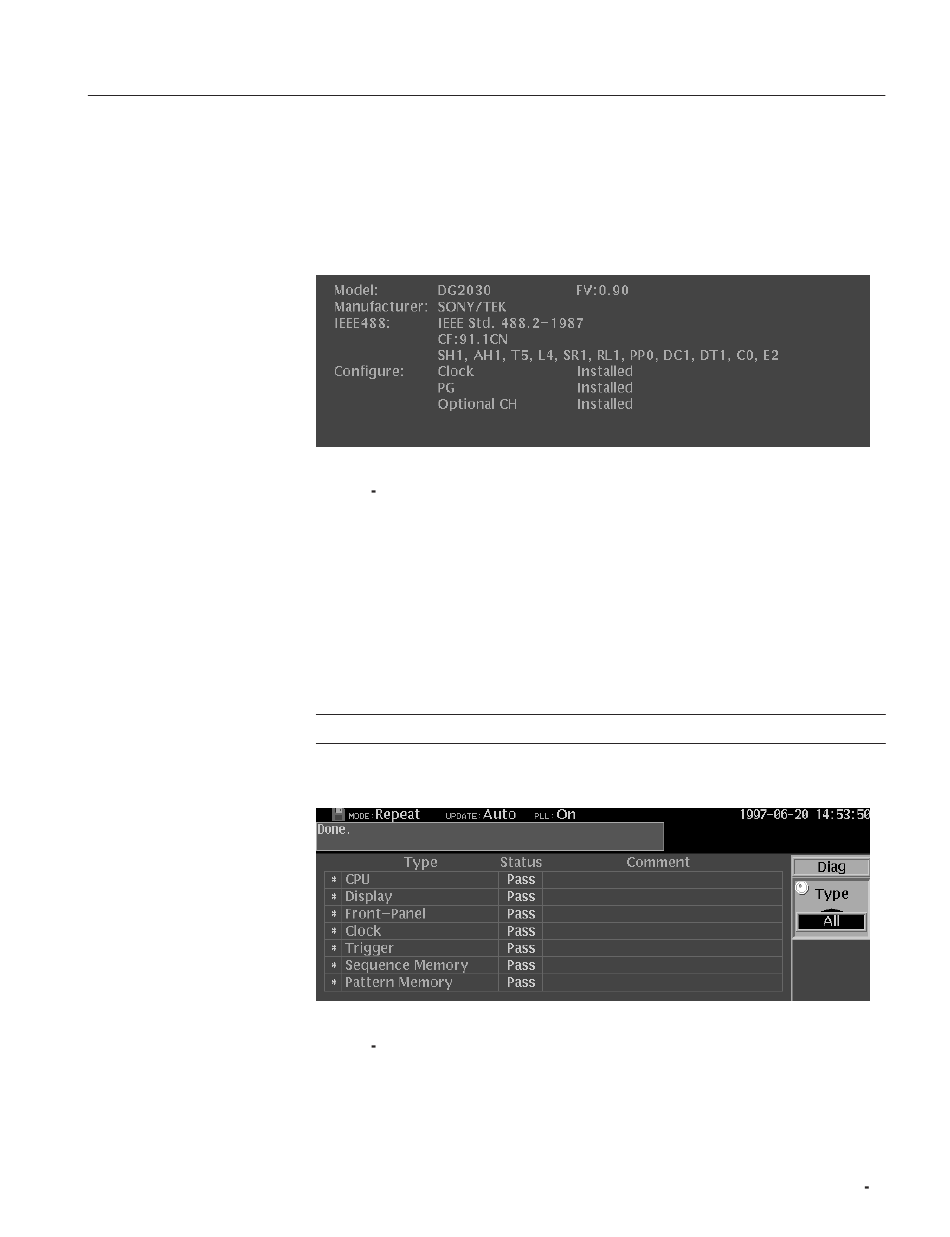

Figure 3 66: Status display
Tests the instrument's internal hardware. Diagnostics can be run as individual
tests, or all tests can be run in one operation. If the diagnostics complete with no
errors, "Pass" is displayed in the Status display area. If an error occurs, "Fail" is
displayed. An error code is displayed in the Comment display area if a
diagnostic test fails. See Figure 3-67.
NOTE. Contact your Tektronix sales representative if any errors occur.
Figure 3 67: Diag menu
