Figure 2-32: Creating A Binary Up-Counter For Block Bk1 - Tektronix DG2030 User Manual

Block 2 Data
Creating Block 3 Data
DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

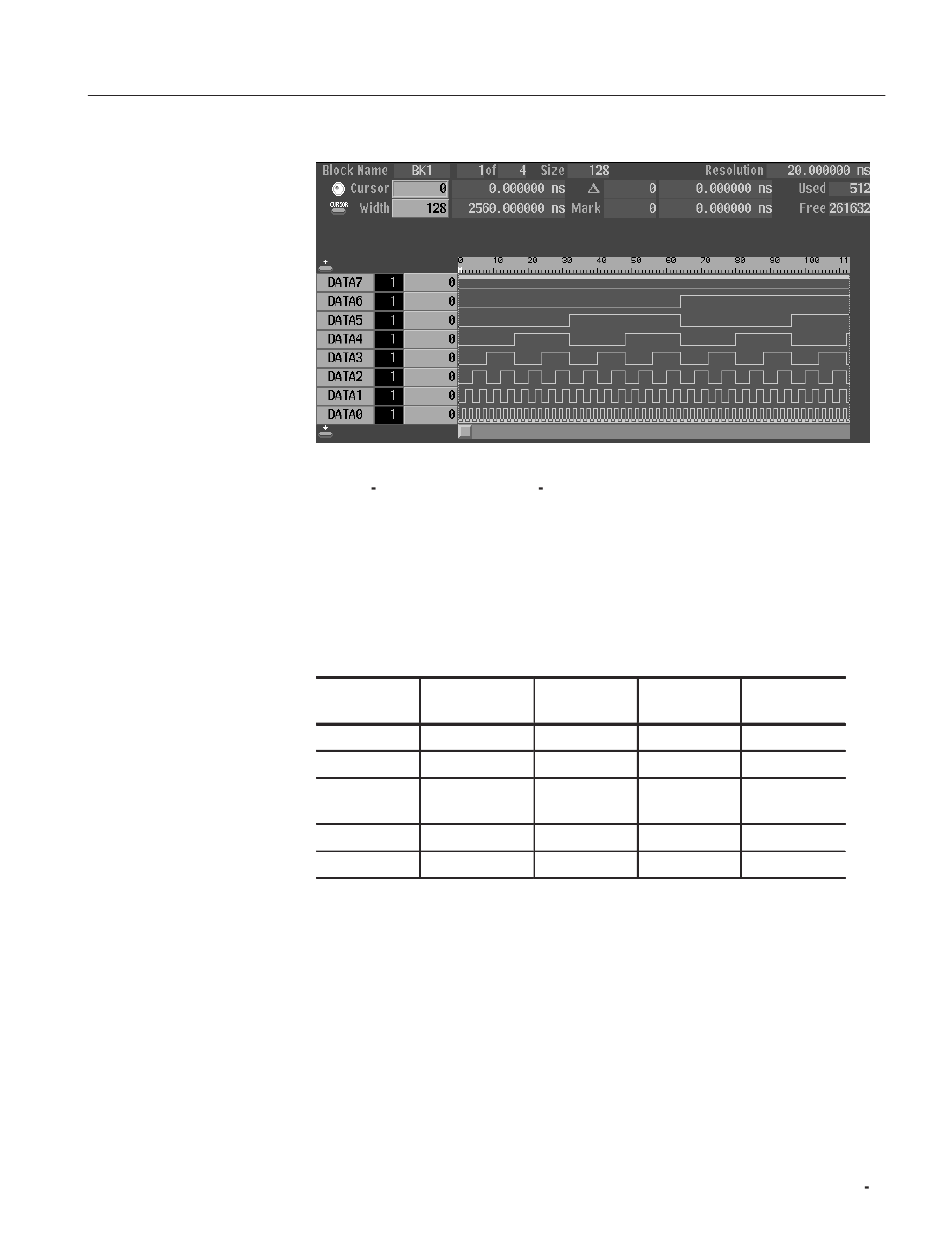

Figure 2 32: Creating a binary up counter for block BK1
The block 2 data is already all zeros. The data can be used as is without editing.
9. Create binary down-counter data in block 3. Confirm that the knob icon
appears in the Cursor window in the upper left of the screen. If the icon is
not in that window, move it there with the front panel CURSOR button.
Menu button Bottom button
Execute
Action
Popup menu Side button
Binary down OK
counter
OK
Operating Examples
Front panel
button
256
ENTER
1
ENTER
EXECUTE
2 53
