Creating Standard Pattern
Data
DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

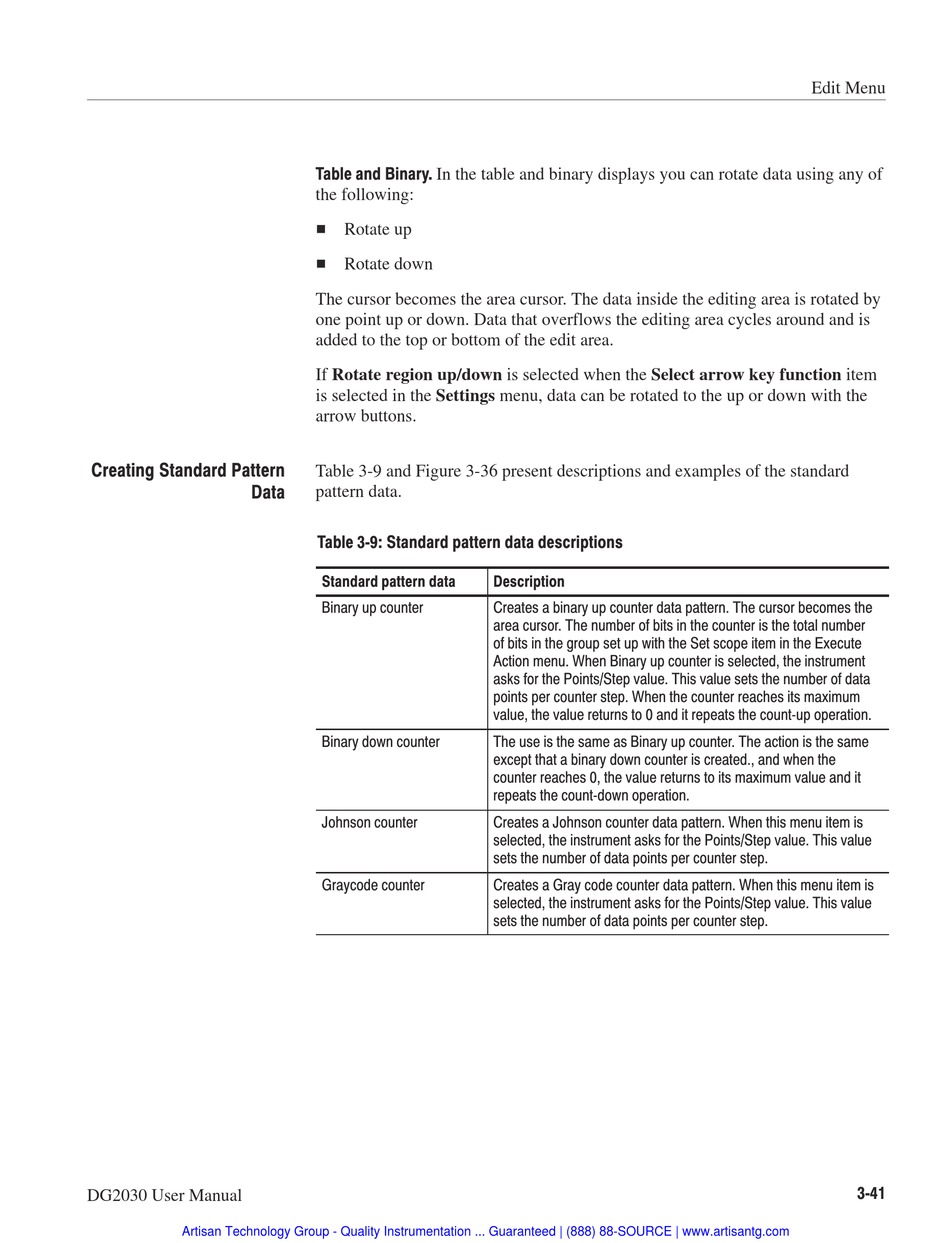

Table and Binary. In the table and binary displays you can rotate data using any of
the following:
H Rotate up
H Rotate down
The cursor becomes the area cursor. The data inside the editing area is rotated by
one point up or down. Data that overflows the editing area cycles around and is
added to the top or bottom of the edit area.
If Rotate region up/down is selected when the Select arrow key function item
is selected in the Settings menu, data can be rotated to the up or down with the
arrow buttons.
Table 3-9 and Figure 3-36 present descriptions and examples of the standard
pattern data.
Table 3 9: Standard pattern data descriptions
Standard pattern data Description
Binary up counter Creates a binary up counter data pattern. The cursor becomes the
area cursor. The number of bits in the counter is the total number
of bits in the group set up with the Set scope item in the Execute
Action menu. When Binary up counter is selected, the instrument
asks for the Points/Step value. This value sets the number of data
points per counter step. When the counter reaches its maximum
value, the value returns to 0 and it repeats the count up operation.
Binary down counter The use is the same as Binary up counter. The action is the same
except that a binary down counter is created., and when the
counter reaches 0, the value returns to its maximum value and it
repeats the count down operation.
Johnson counter Creates a Johnson counter data pattern. When this menu item is
selected, the instrument asks for the Points/Step value. This value
sets the number of data points per counter step.
Graycode counter Creates a Gray code counter data pattern. When this menu item is
selected, the instrument asks for the Points/Step value. This value
sets the number of data points per counter step.
Edit Menu
3 41
