This continues until the destination is full. If the end of the input data is reached
before the destination is full, the current position returns to the start point in the
source data.

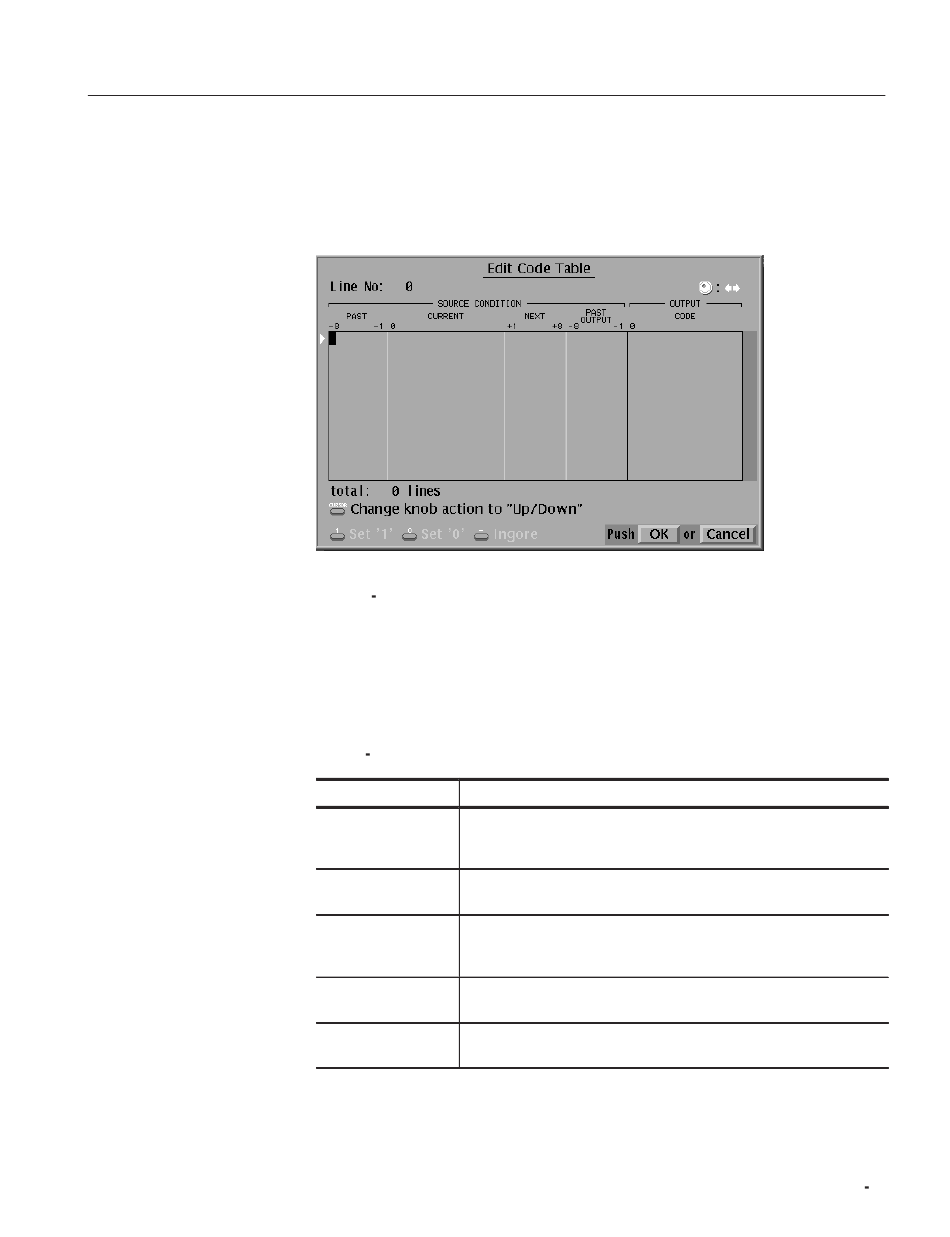

Figure 3 45: Edit Code Table menu
Table 3-15 describes the parameter items in the Edit Code Table menu.
Refer to Conversion Table Examples on page C-6 for examples of how to
convert pattern data to different format.
Table 3 15: Edit Code Table parameters
Parameter
Function
PAST
For the template to match, the data in the source immediately behind
the current position (i.e. data that has already been read) must match
this pattern.
CURRENT
For the template to match, the data in the source at the current position
must match this pattern.
NEXT
For the template to match, the data in the source at a position ahead of
the current position by the width of the pattern in the CURRENT
column must match this pattern.
PAST OUTPUT
For the template to match, the data at the end of the destination (i.e.
most recently written data) must match this pattern.
OUTPUT CODE
When the whole template matches, the data specified in this column is
written to the destination.
Edit Menu
3 53
