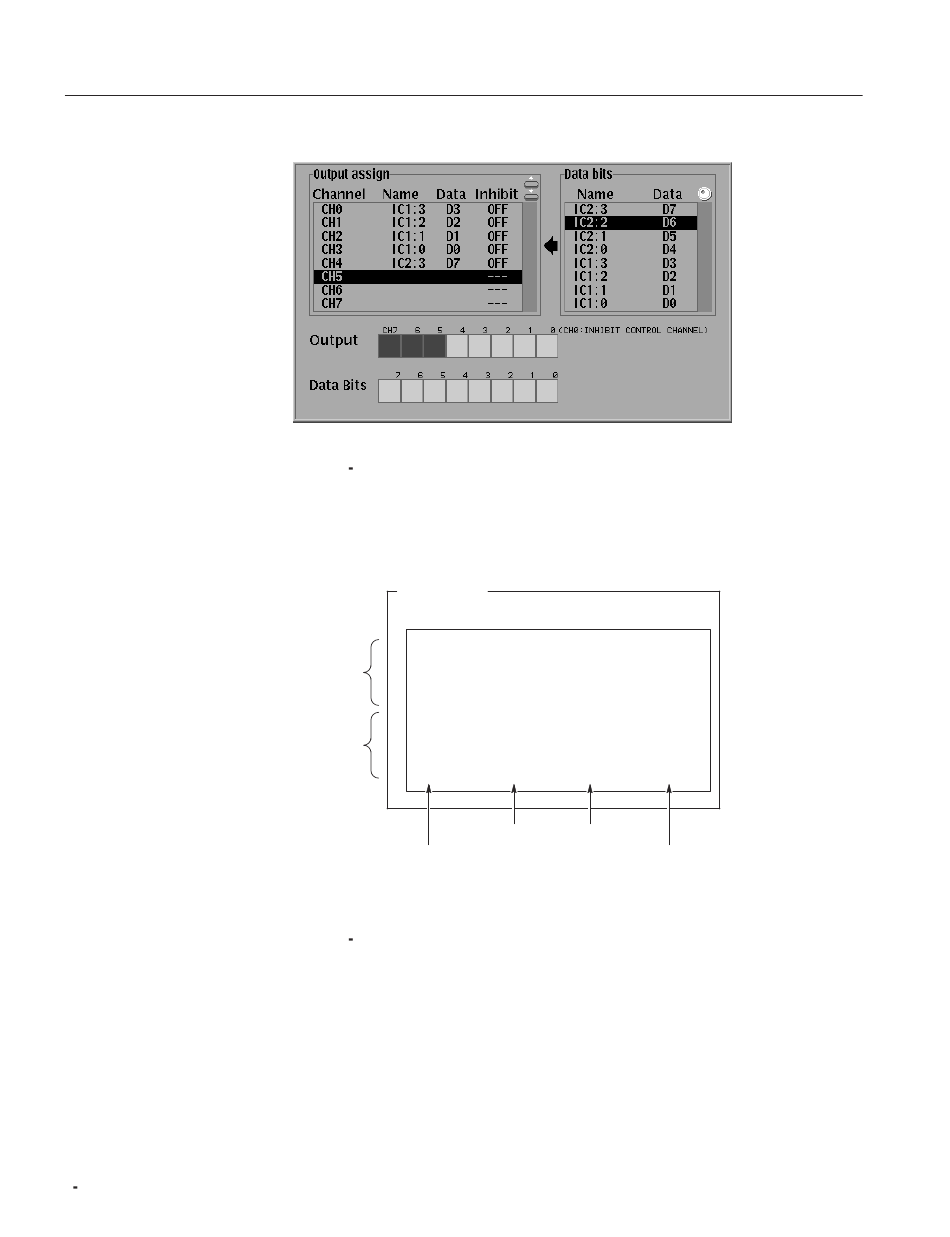

Figure 2 25: Output assign list and channel assignment
To summarize data bits have been allocated, what we have done so far, to the
output channels as shown in Figure 2-26.
Output assign
Channel
CH0
CH1
Data Bits
CH2
D3 to D0
CH3
Allocated
CH4
CH5
Data Bits
CH6
D7 to D4
Allocated
CH7
Output Channels
Figure 2 26: Output channel data bit allocation
Name
Data
Inhibit
IC1:3
D3
OFF
IC1:2
D2
OFF
IC1:1
D1
OFF
IC1:0
D0
OFF
IC2:3
D7
OFF
IC2:2
D6
OFF
IC2:1
D5
OFF
IC2:0
D4
OFF
Group Name
Data Bit
Output Impedance Control. If the
data is not assigned, `- - -' is
displayed in this field.
