BNC Cable: connect to the AUX OUTPUT:
SYNC connector on the DG2030 rear panel.

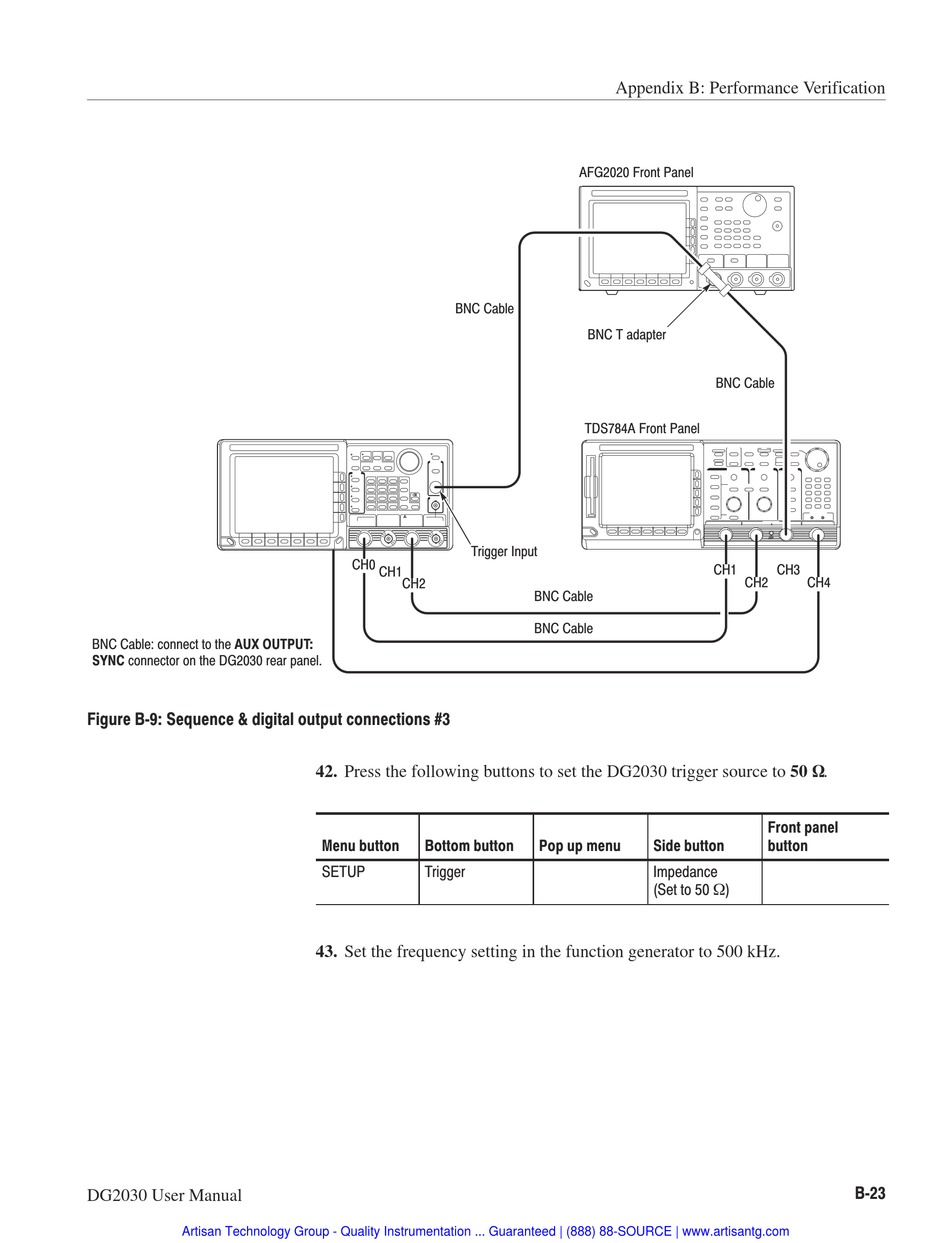

Figure B 9: Sequence & digital output connections #3
DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
BNC Cable
Trigger Input
CH0
CH1
CH2
42. Press the following buttons to set the DG2030 trigger source to 50 W.
Menu button Bottom button
SETUP Trigger
43. Set the frequency setting in the function generator to 500 kHz.
Appendix B: Performance Verification
AFG2020 Front Panel
BNC T adapter
TDS784A Front Panel
CH1
BNC Cable
BNC Cable
Pop up menu Side button
Impedance
(Set to 50 W)
BNC Cable
CH3
CH2 CH4
Front panel
button
B 23
