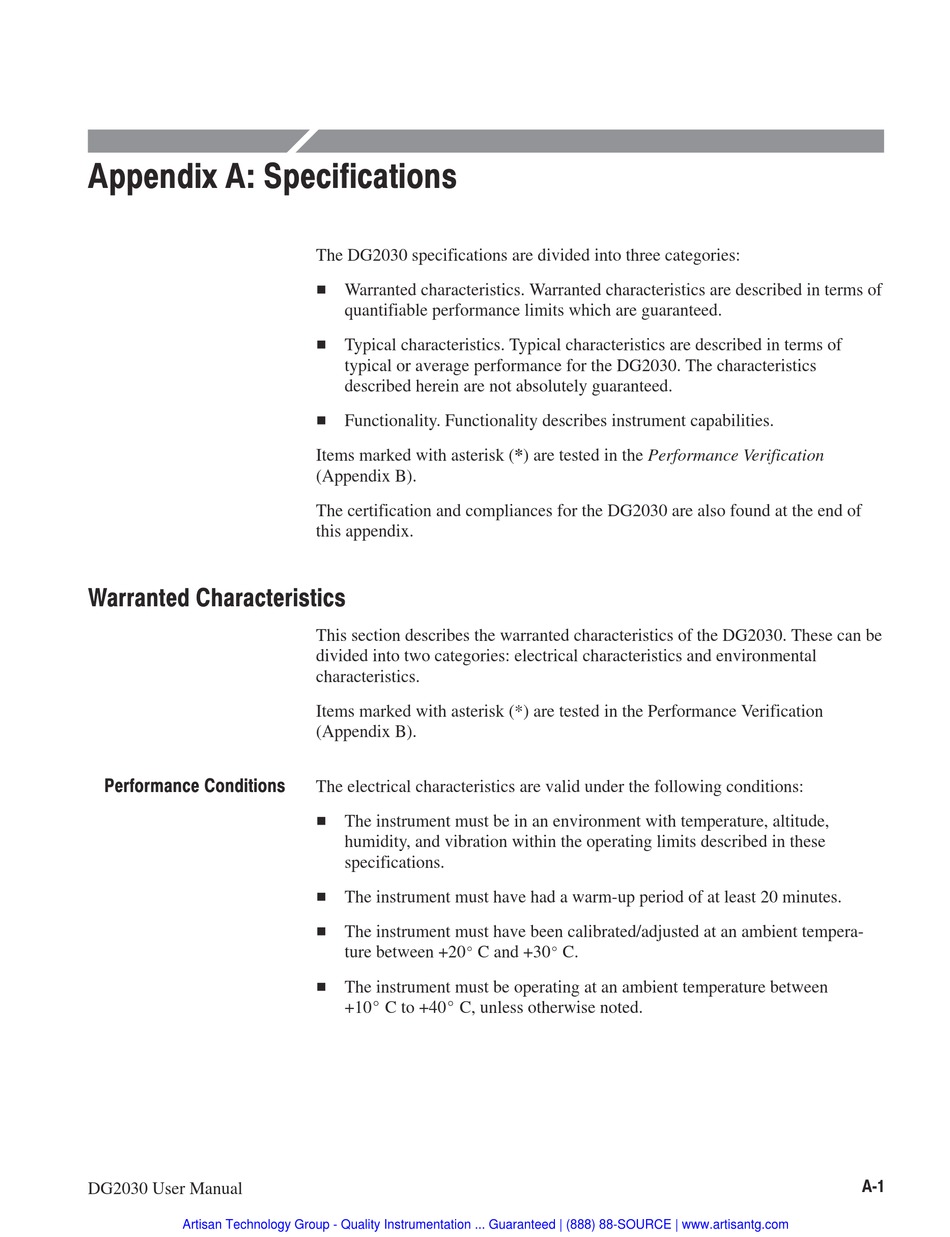

Appendix A: Specifications

Warranted Characteristics

Performance Conditions
DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The DG2030 specifications are divided into three categories:
H Warranted characteristics. Warranted characteristics are described in terms of
quantifiable performance limits which are guaranteed.
H Typical characteristics. Typical characteristics are described in terms of
typical or average performance for the DG2030. The characteristics
described herein are not absolutely guaranteed.
H Functionality. Functionality describes instrument capabilities.
Items marked with asterisk (*) are tested in the Performance Verification
(Appendix B).
The certification and compliances for the DG2030 are also found at the end of
this appendix.
This section describes the warranted characteristics of the DG2030. These can be
divided into two categories: electrical characteristics and environmental
characteristics.
Items marked with asterisk (*) are tested in the Performance Verification
(Appendix B).
The electrical characteristics are valid under the following conditions:
H The instrument must be in an environment with temperature, altitude,
humidity, and vibration within the operating limits described in these
specifications.
H The instrument must have had a warm-up period of at least 20 minutes.
H The instrument must have been calibrated/adjusted at an ambient tempera-
_
ture between +20 C and +30
H The instrument must be operating at an ambient temperature between
+10_ C to +40_ C, unless otherwise noted.
_
C.
