Operating Examples
2 56
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

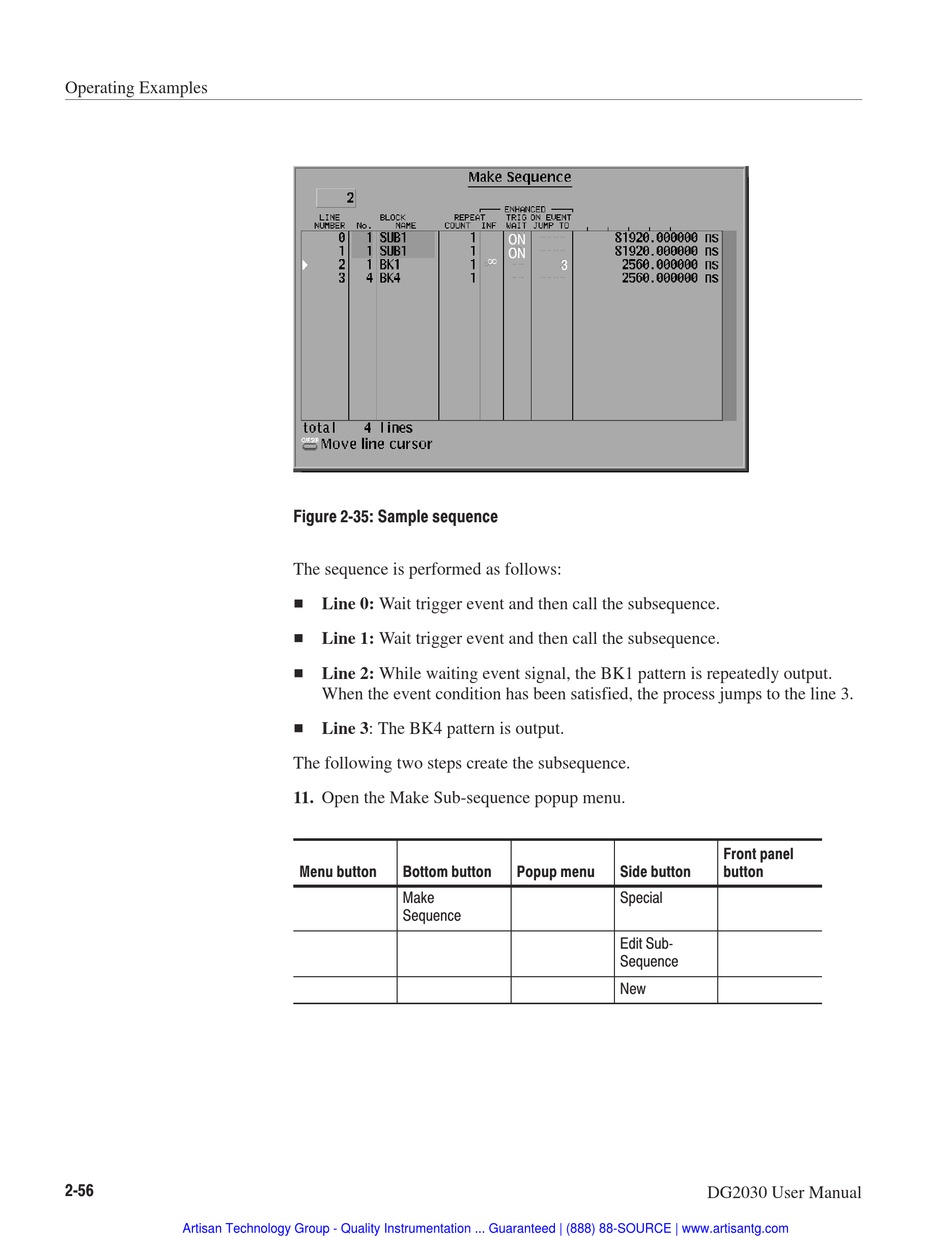

Figure 2 35: Sample sequence
The sequence is performed as follows:
H Line 0: Wait trigger event and then call the subsequence.
H Line 1: Wait trigger event and then call the subsequence.
H Line 2: While waiting event signal, the BK1 pattern is repeatedly output.
When the event condition has been satisfied, the process jumps to the line 3.
H Line 3: The BK4 pattern is output.
The following two steps create the subsequence.
11. Open the Make Sub-sequence popup menu.
Menu button Bottom button
Make
Sequence
ON
ON
R
3
Popup menu Side button
Special
Edit Sub
Sequence
New
Front panel
button
