Operating Examples
Setting Rise/Fall Timing
2 46
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The rise time and fall time of each output signal can be varied within a certain
range.
7. Set the rise time for the output channel CH0 to CH3 to 5 ns and fall time for
those channels to FAST. See Figure 2-27.
Menu button Bottom button
Timing Condition
Select channel CH0 by pressing the front panel up and down arrow buttons.
Set the rise and fall times for channels CH1 to CH3 in the same manner.

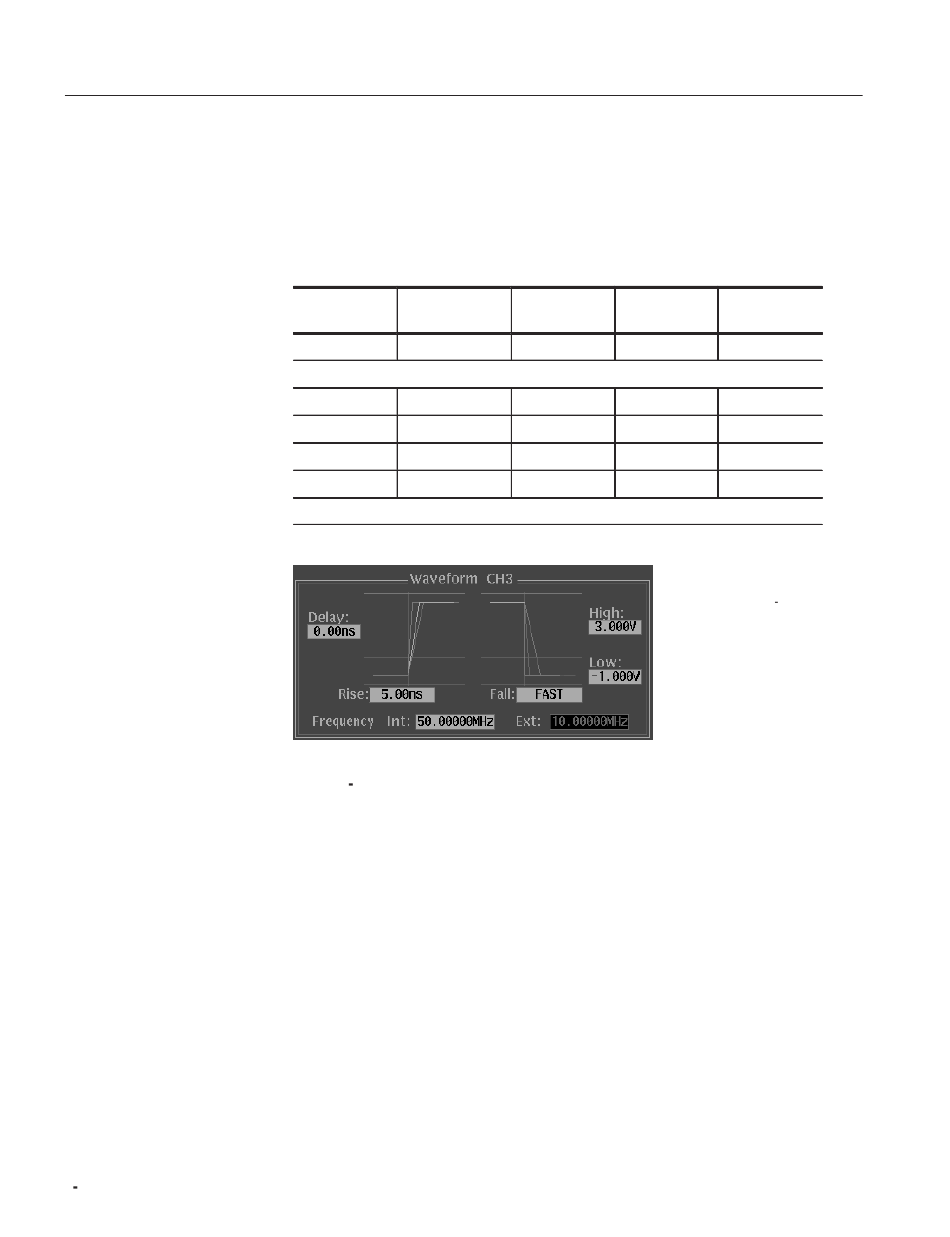

Figure 2 27: Rise /fall time settings
Popup menu Side button
Rise
Fall
Slopes for the rise and fall periods
can be set within the ranges
indicated by the non highlighted
lines. As a slope, FAST or a value
from the range can be selected.
Front panel
button
5
ENTER
0
ENTER
