Assign Condition
DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Assigns the selected data bit to the selected output channel. The currently set
value is overwritten.
Output Channel List

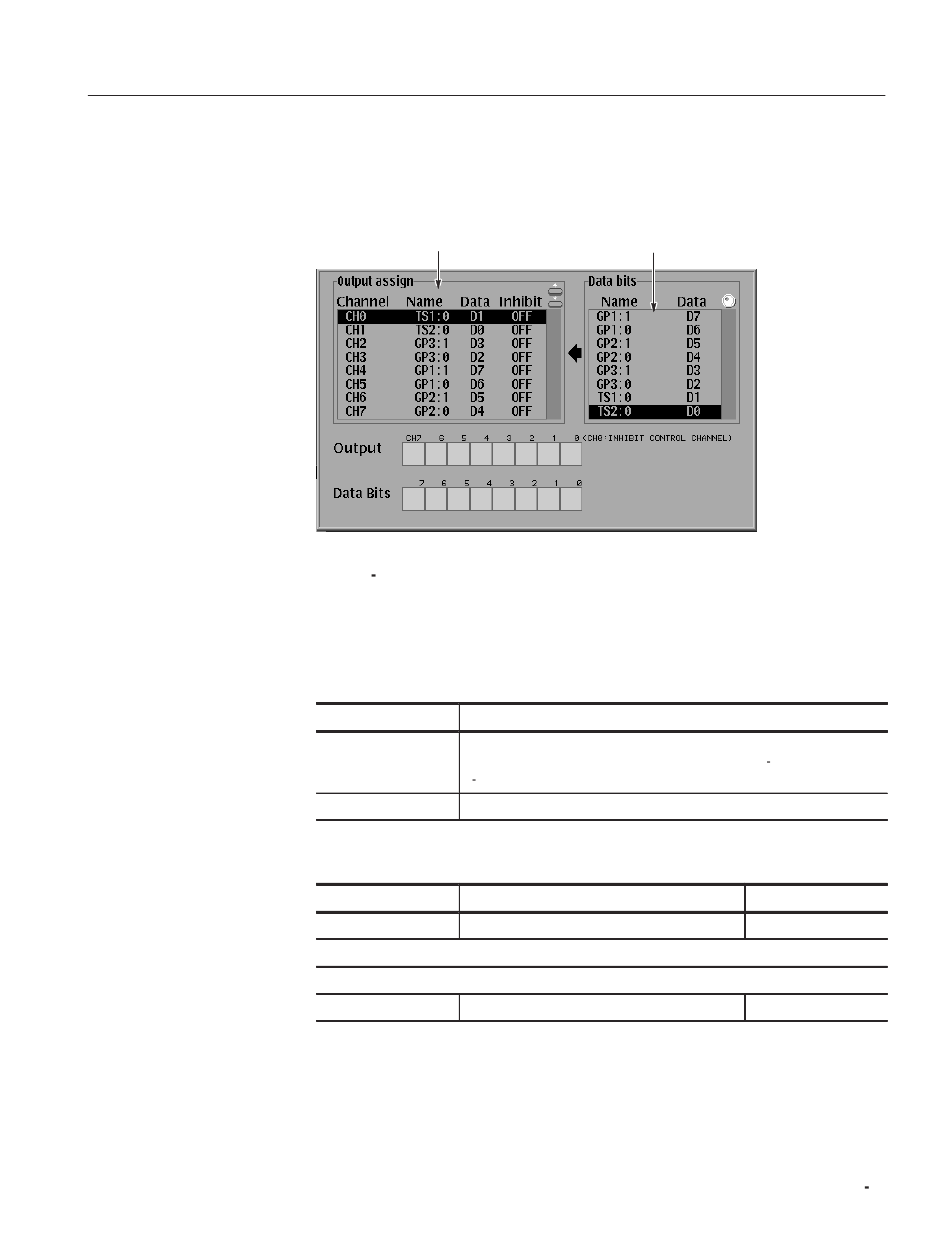

Figure 3 53: Output channel assign popup menu
See Figure 2-8 for the output channel allocation.
Sub Menu
Item Function
Assign Assigns the selected data bit to the selected output channel using the
popup menu brought up at the same time as this sub menu (see Figure
3 53). The currently set value is overwritten.
Release Clear the data for the selected assignment.
Operation. Assign data bit to output channel
Bottom button Popup menu
Output Condition
Select a data bit with the general purpose knob.
Select the channel to be assigned using the up and down arrow buttons.
Data Bits List
Side button
Assign Condition
Assign
Setup Menu
3 69
