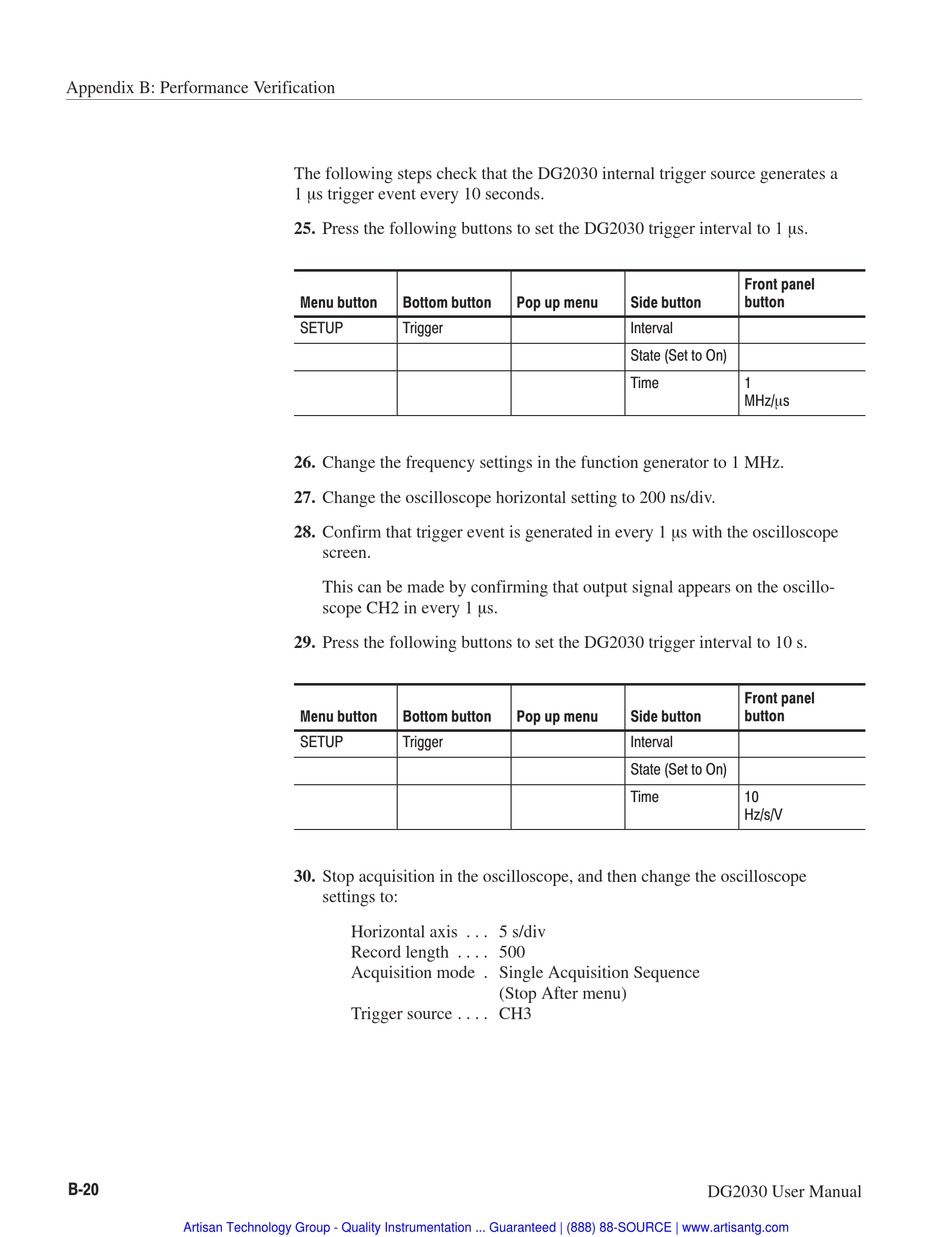

Tektronix DG2030 User Manual page 231

Appendix B: Performance Verification
B 20
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The following steps check that the DG2030 internal trigger source generates a
1 ms trigger event every 10 seconds.
25. Press the following buttons to set the DG2030 trigger interval to 1 ms.
Menu button Bottom button
SETUP Trigger
26. Change the frequency settings in the function generator to 1 MHz.
27. Change the oscilloscope horizontal setting to 200 ns/div.
28. Confirm that trigger event is generated in every 1 ms with the oscilloscope
screen.
This can be made by confirming that output signal appears on the oscillo-
scope CH2 in every 1 ms.
29. Press the following buttons to set the DG2030 trigger interval to 10 s.
Menu button Bottom button
SETUP Trigger
30. Stop acquisition in the oscilloscope, and then change the oscilloscope
settings to:
Horizontal axis . . .
Record length . . . .
Acquisition mode
Trigger source . . . .
Pop up menu Side button
Interval
State (Set to On)
Time
Pop up menu Side button
Interval
State (Set to On)
Time
5 s/div
500
. Single Acquisition Sequence
(Stop After menu)
CH3
Front panel
button
1
MHz/ms
Front panel
button
10
Hz/s/V
