Delay

Run Mode Menu

Repeat
DG2030 User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The delay can be adjusted set in the range –5.0 ns to 18.0 ns in 0.02 ns steps for
each output.
Operation. Set the output delay
Bottom button Popup menu
Timing Condition
Select the channel for which the rise time is to be set using the knob.
This menu sets the run mode used to output pattern data, and sets the pattern data
output update method used when data is changed.
Operation. Set the run mode
Bottom button Popup menu
Run Mode
Pattern data is iteratively output. When no sequence is defined, all of the pattern
data is output iteratively as a single pattern as shown in Figure 3-56. If a
sequence is defined, the sequence ordering and repeat (Repeat Count) functions
are applied. The extended sequence functions (trigger input, event jump, etc.) are
ignored as shown in Figure 3-57.
Pattern Data Output
Pattern Data

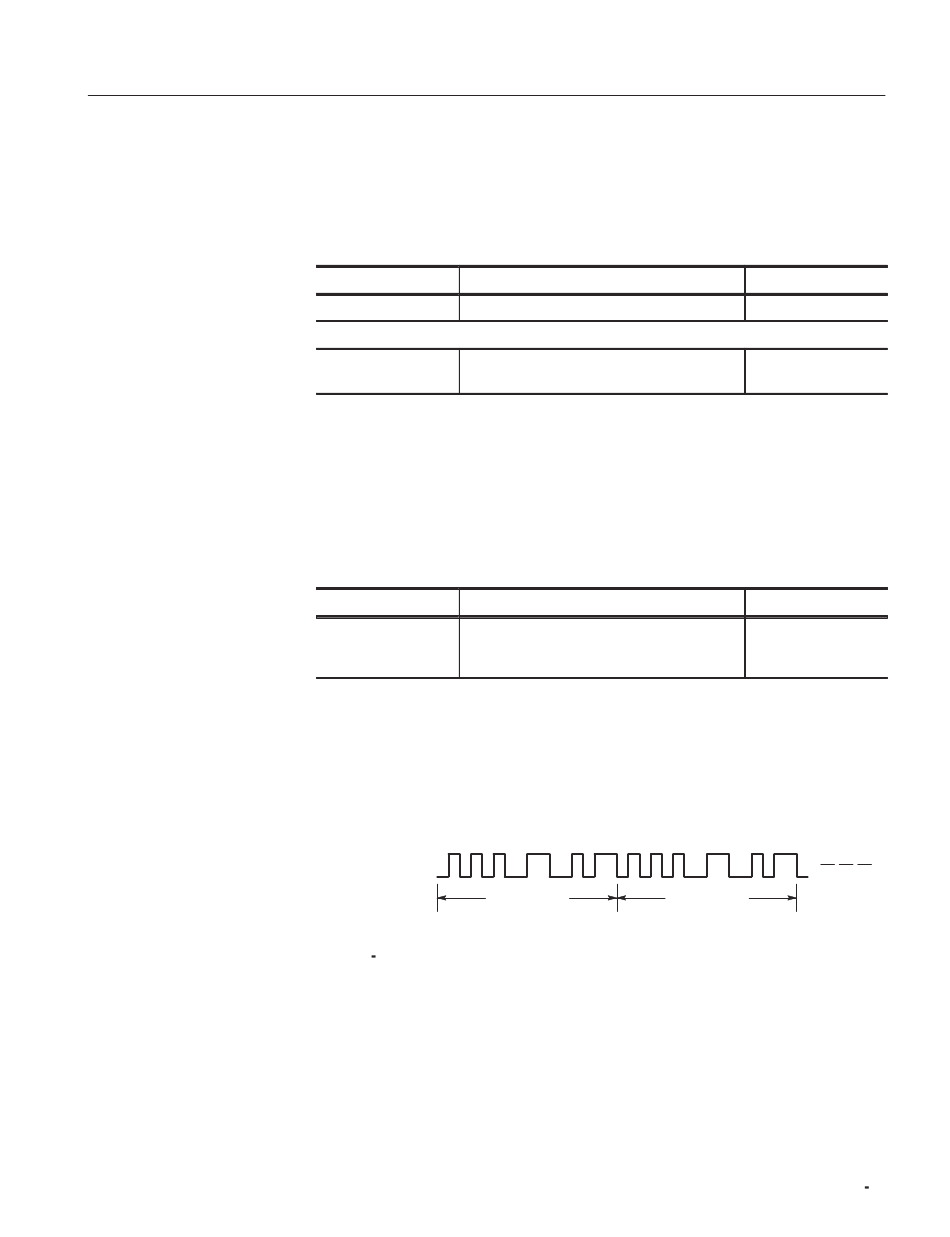

Figure 3 56: Repeat Mode pattern data output (when no sequence is defined)
Setup Menu
Side button
Delay
(the delay setting)
Side button
Select the run mode
(Repeat, Single, Step,
or Enhanced)
Pattern Data
3 75
