Logical Operation - Tektronix DG2030 User Manual

Edit Menu

Logical Operation

3 48
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Performs a logical operation between pattern data in two (source) bits, and

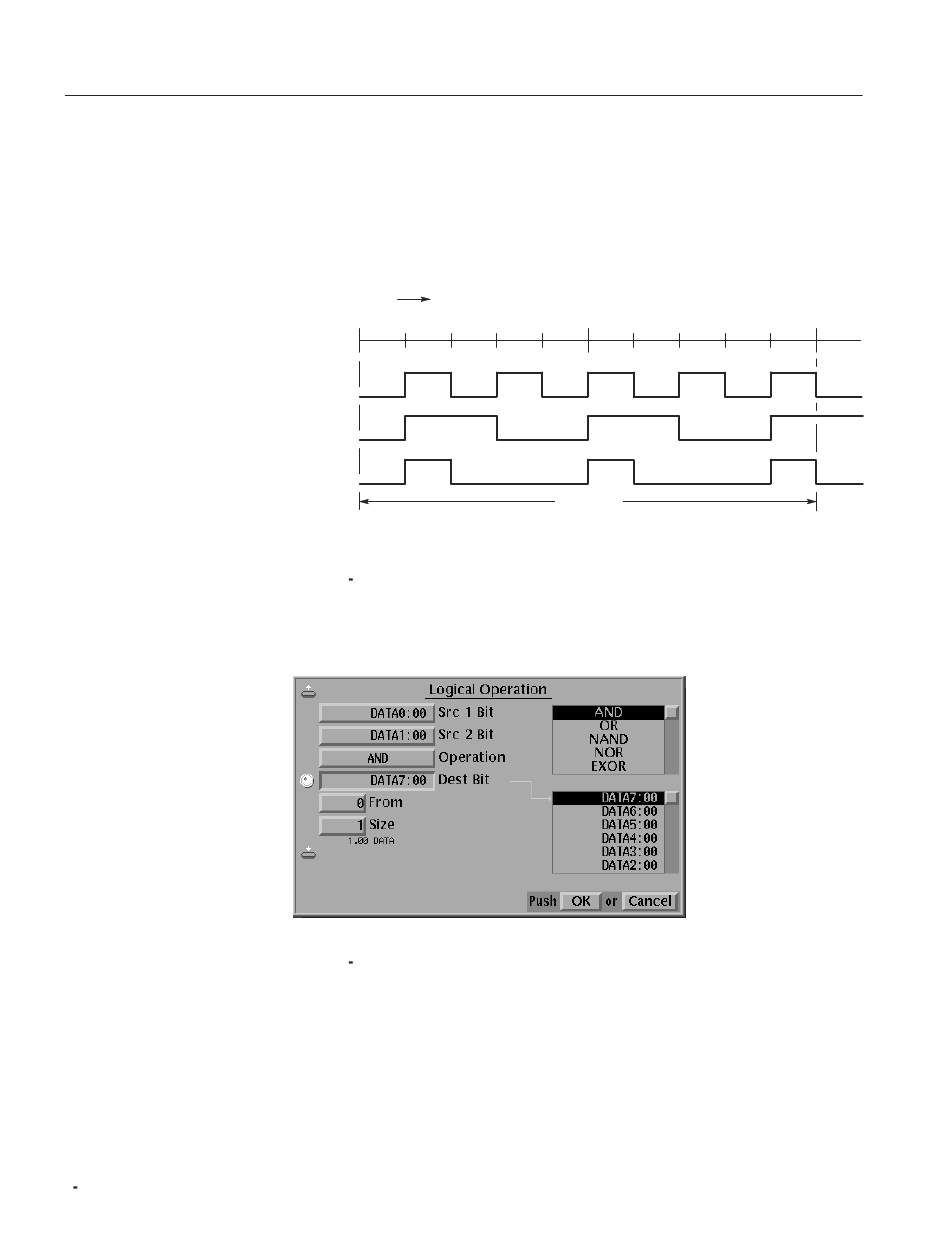

replaces the data in a destination bit with the result. Figure 3-41 shows an
example of a logical operation where the AND operator was selected.
Operation : AND
Region : Entered
Points
0
Src 1 Bit:
DATA0
Src 2 Bit:
DATA1
Dest Bit:
DATA4
From : 0
Figure 3 41: Logical AND Operation Example
Popup Menu.
Figure 3 42: Logical Operation popup menu
Table 3-12 describes the parameter items.
Write the result of the logical AND of the
Src 1 Bit and the Src 2 Bit to the Dest Bit.
50
Size : 100
DG2030 User Manual
