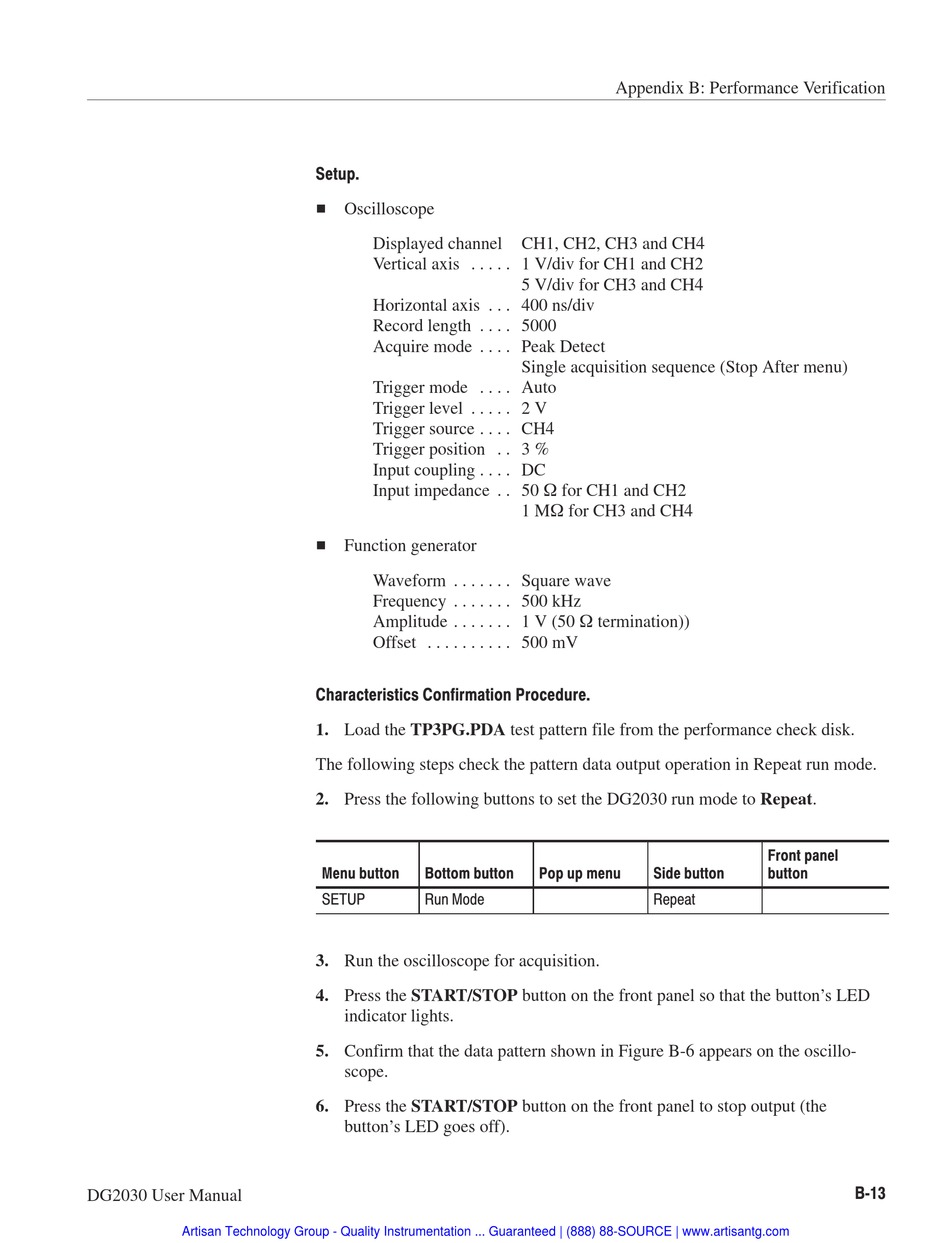

Setup.
H Oscilloscope
Displayed channel
Vertical axis . . . . .
Horizontal axis . . .
Record length . . . .
Acquire mode . . . .
Trigger mode . . . .
Trigger level . . . . .
Trigger source . . . .
Trigger position
Input coupling . . . .
Input impedance
H Function generator
Waveform . . . . . . .
Frequency . . . . . . .
Amplitude . . . . . . .
Offset . . . . . . . . . .
Characteristics Confirmation Procedure.
1. Load the TP3PG.PDA test pattern file from the performance check disk.
The following steps check the pattern data output operation in Repeat run mode.
2. Press the following buttons to set the DG2030 run mode to Repeat.
Menu button Bottom button
SETUP Run Mode
3. Run the oscilloscope for acquisition.
4. Press the START/STOP button on the front panel so that the button's LED
indicator lights.
5. Confirm that the data pattern shown in Figure B-6 appears on the oscillo-
scope.
6. Press the START/STOP button on the front panel to stop output (the
button's LED goes off).
Appendix B: Performance Verification
CH1, CH2, CH3 and CH4
1 V/div for CH1 and CH2
5 V/div for CH3 and CH4
400 ns/div
5000
Peak Detect
Single acquisition sequence (Stop After menu)
Auto
2 V
CH4
. . 3 %
DC
50 W for CH1 and CH2
. .
1 MW for CH3 and CH4
Square wave
500 kHz
1 V (50 W termination))
500 mV
Pop up menu Side button
Repeat
Front panel
button
