Add IP Solutions
1
Figure Notes
1. Connect analog line here.
2. DIP switch 5 must be up.

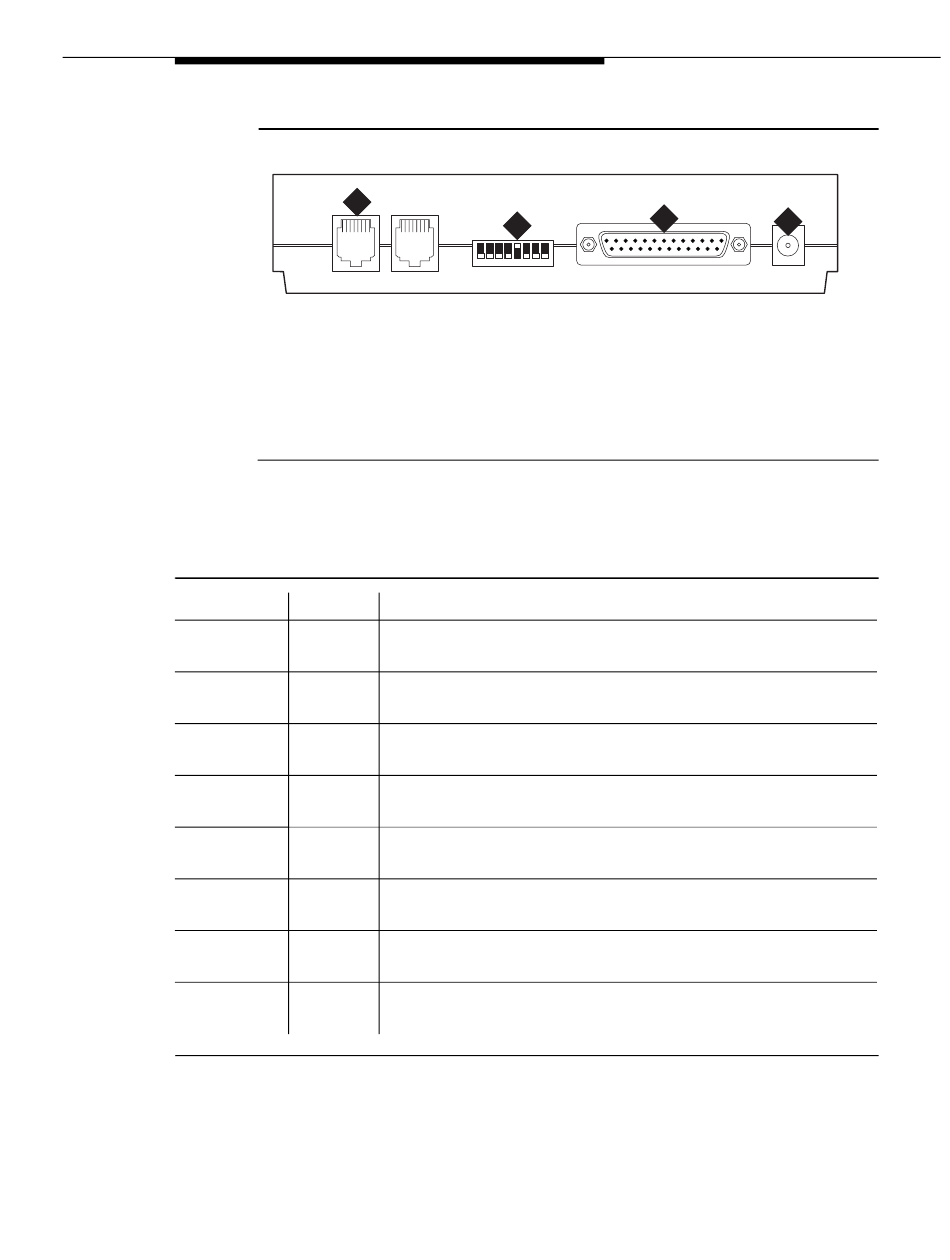

Figure 7-14. External Modem Connections for U.S. Robotics Sportster
Table 7-14. U.S. Robotics Modem DIP Switch Settings
DIP Switch Setting
1 UP
DOWN
2 UP
DOWN
3 UP
DOWN
4 UP
DOWN
5 UP
DOWN
6 UP
DOWN
7 UP
DOWN
8 UP
DOWN
555-233-115
2
1 2 3 4 5 6 7 8
Description
Data Terminal Ready normal
Data Terminal Ready override
Verbal result codes
Numeric result codes
Suppress result codes
Display result codes
Echo offline commands
No echo, offline commands
Auto answer on first ring or higher if specified in NVRAM
Auto answer off
Carrier detect normal
Carrier detect override
Load NVRAM defaults
Load factory defaults
Dumb mode
Smart mode
3
modfrobo KLC 030499
3. Connect MODEM connector here.
4. Connect power connector here.
