Add the Fiber Optic Cable
Install the Pass-thru Kit
1. Snap the SC-SC fiber optic adapter on the pass-thru tool. See
Use the beige adapter even if single-mode fiber is being installed. The
SC-SC adapter is better suited for cable routing in the next steps.
NOTE:
If single-mode fiber is being installed, the beige adapter will be
replaced with a blue adapter, later in this section.
2
Figure Notes
1. Pass-thru Tool

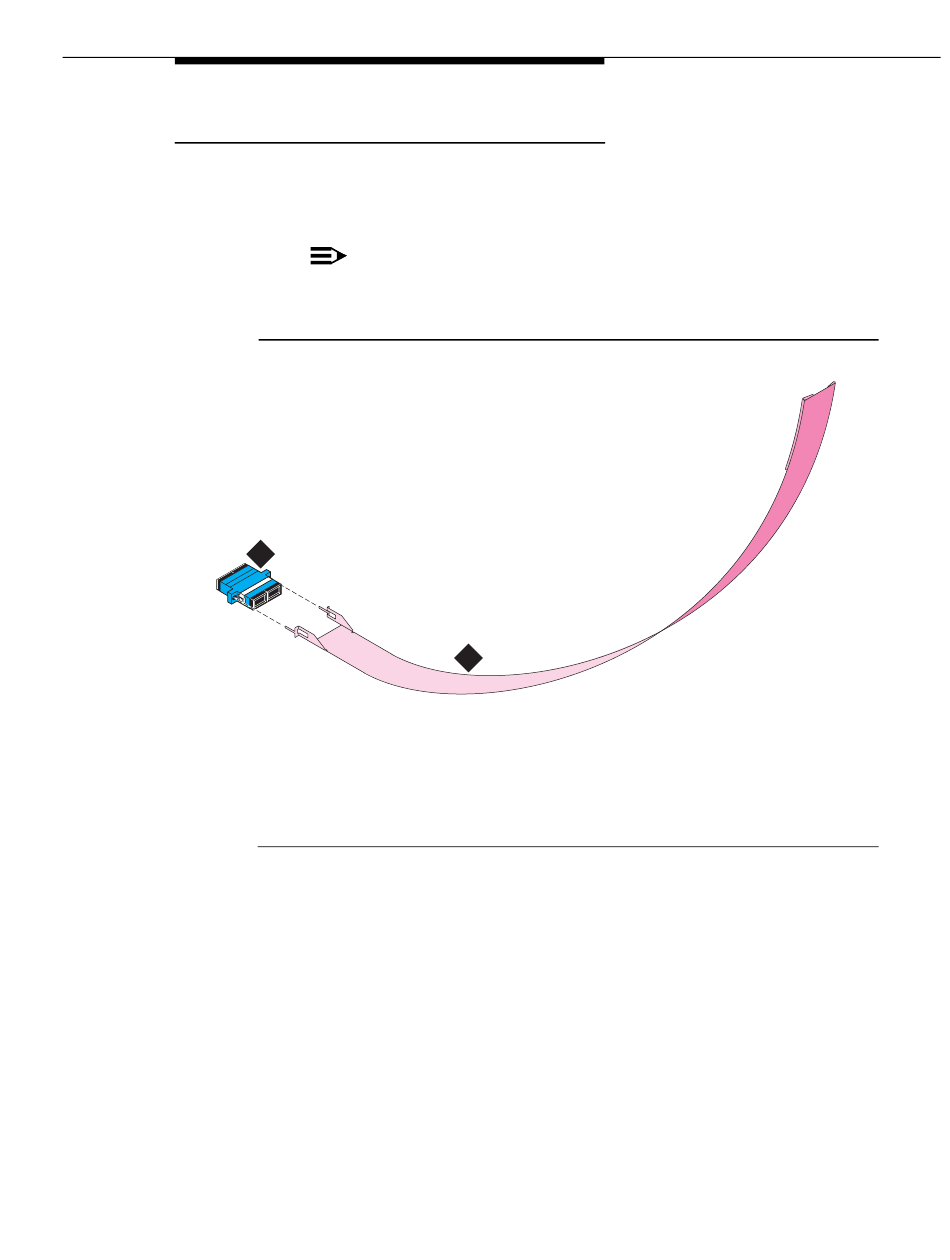

Figure 6-17. Fiber Optic Adapter and Pass-Thru Tool
555-233-115
1
2. SC-SC Fiber Optic Adapter
Issue 7 November 2003
Figure 6-17.
fodacoup LJK 041398
