Install a New EPN Cabinet in an Existing System

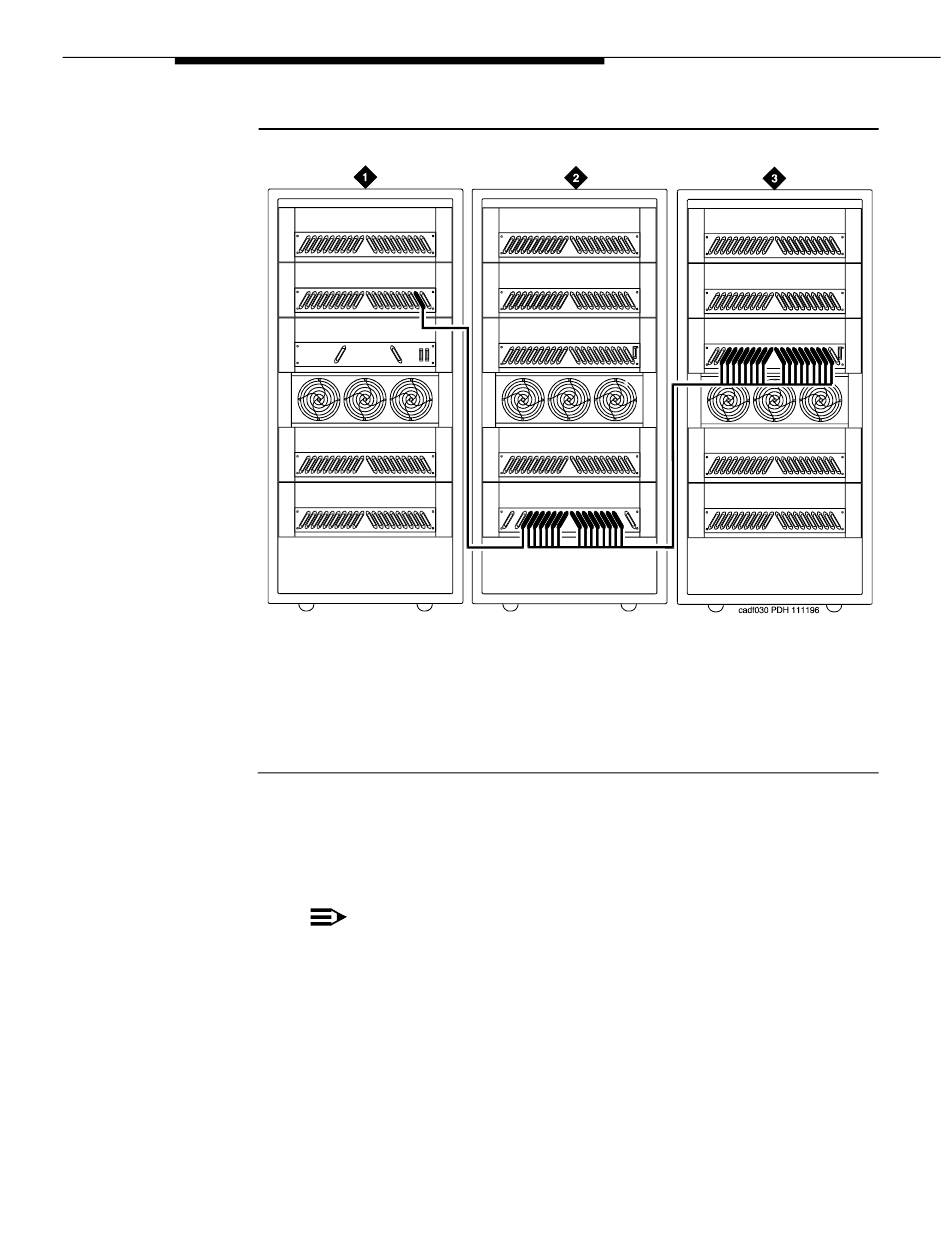

Figure Notes
1. Cabinet 1 (PPN)
2. Cabinet 4 (MCC EPN with One
Duplex Switch Node)
Figure 6-42. Switch-Connected with SNC in EPN
27. Connect an H600-278 Metallic Cable from Slot 2 in the Port Carrier in
position B in Cabinet 4 (4B02) to Slot 19 on the Switch Node Carrier in
position D in Cabinet 4 (4D19).
NOTE:
Both fibers from each PN must connect to the same slot number in
each Switch Node Carrier. For example: if Slot 3A01 of EPN 3
connects to Switch Node Carrier Slot 4E19, then Slot 3B02 of EPN 3
must connect to Switch Node Carrier Slot 4D19.
28. Proceed to
links.
555-233-115
Appendix A, ''Fiber Link Administration''
3. Cabinets 2, 3, and 5 through 16
(MCC or SCC EPNs) H600-278
Metallic Cable
to add the new fiber
Issue 7 November 2003
6-87
