Install a New EPN Cabinet in an Existing System
Connect Power and Ground
1. For an AC- or DC-powered system, connect power and ground to the
cabinet as instructed in Installation and Test for Multicarrier Cabinets
(MCC1) in the Made Easy tool.
2. Connect the approved ground to the new cabinet as instructed in
Installation and Test for Multicarrier Cabinets (MCC1) in the Made Easy
tool.
NOTE:
Do not power up the system until all power and ground connections
are completed.
Interconnect Cabling
For fiber optic cabling information and comcode numbers, refer to Installation and
Test for Multicarrier Cabinets (MCC1) in the Made Easy tool. The fiber
connections installed in this section are later administered using the fiber link
administration instructions in
NOTE:
Use multi-mode fiber transceivers and fiber optic cables between cabinets
unless single-mode is required for distance restrictions.
Direct-Connect New EPN to Existing PPN
(Standard Reliability)
9

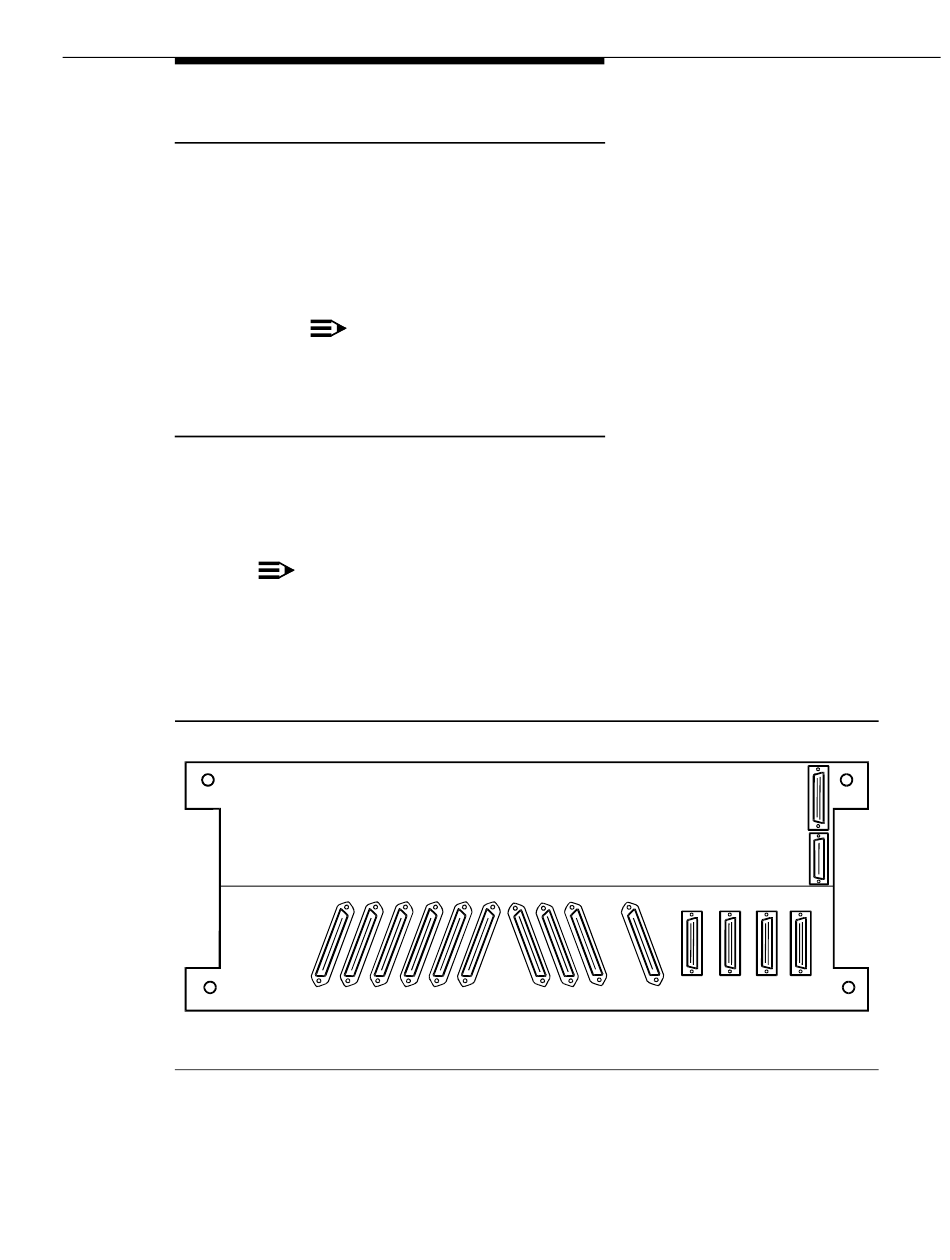

Figure 6-39. Rear of J58890AH Control Carrier (PPN)
