Adding New Carriers and EPN Cabinets
5. Behind port carrier B of each EPN cabinet:
a. Install a lightwave transceiver on the cable connector at slot B02.
b. Connect the other end of the fiber optic cable to the lightwave
c. Carefully attach the fiber optic cable (with cable ties) to the wall of
d. Coil up the surplus length of fiber optic cable, and carefully attach
REAR VIEW
PORT CARRIER - J58890BB
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
C
CONTROL CARRIER - J58890AP
CLOCK AUX TERMINAL
B
CONTROL CARRIER - J58890AP
CLOCK AUX TERMINAL
A
FAN FAN FAN
SWITCH NODE CARRIER - J58890SA
21 20 19 18 17 16 15 14 13 9 8 7 6 5 4 3 2 1
D
SWITCH NODE CARRIER - J58890SA
21 20 19 18 17 16 15 14 13 9 8 7 6 5 4 3 2 1
E
POWER DISTRIBUTION
UNIT
CABINET 1
PPN W/ONE DUPLEX SWITCH NODE

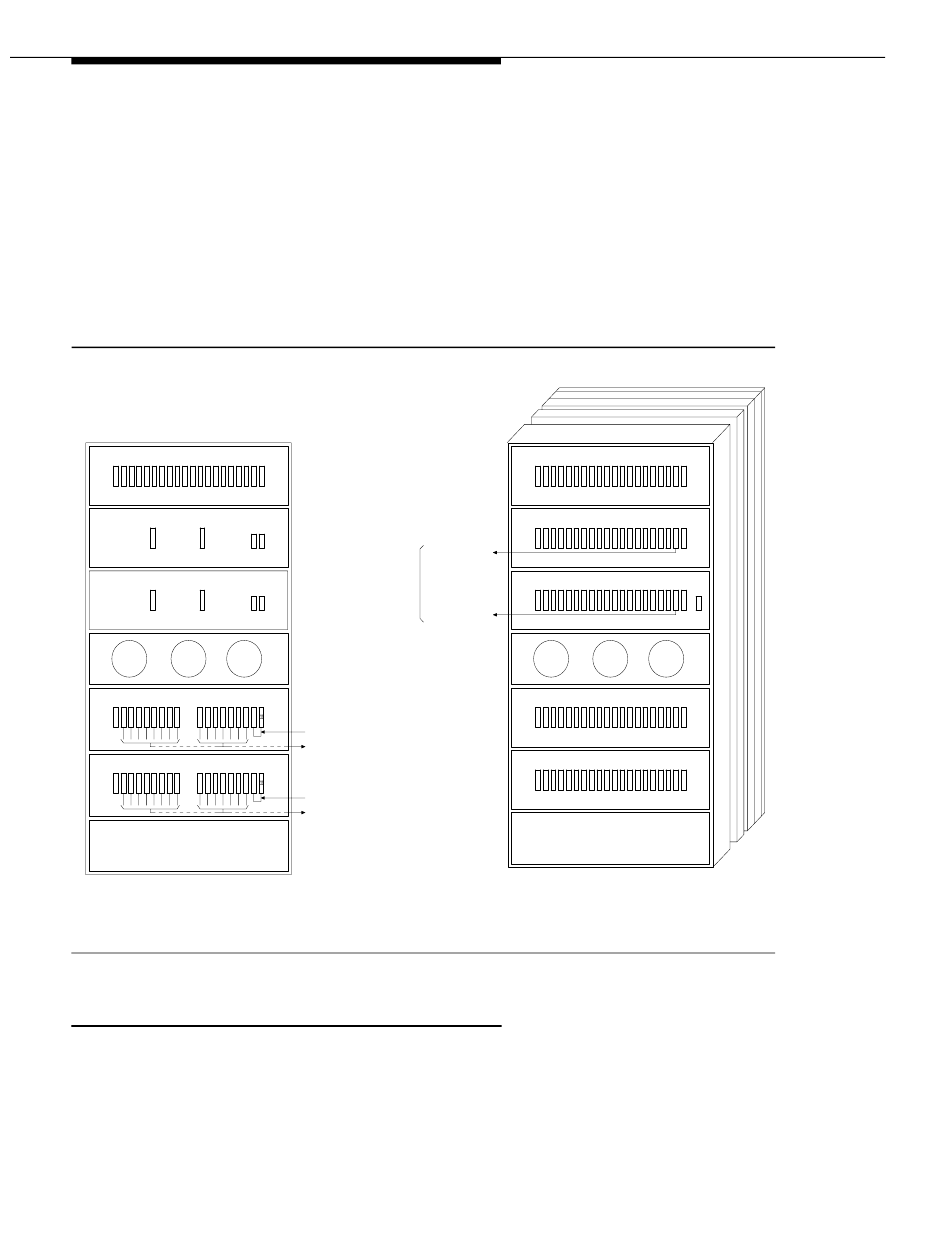

Figure 6-37. Fiber-Optic Connections through Center Stage Switch (Critical-Reliability)
Reseat DEFINITY LAN Gateway System
1. Reseat the LAN Gateway assembly into its backplane connectors.
6-68
Issue 7 November 2003
transceiver, just installed.
the cable tray at the built-in cable-tie positions.
the coil to the wall of the cable tray.
TO CABINET 1, D3-D20
BOTH CONNECTIONS FROM EACH
EPN MUST GO TO THE SAME
SLOT NUMBER (E.G. EPN
CABINET 2, 2A1 TO 1E3 AND
AND CABINET 2, 2B2 TO 1D3).
TO CABINET 1, E3-E20
H600-278
TO CABINET 2 THRU 16, B2
ADD IN ALTERNATING
ORDER: 20, 3, 19, 4,
18, 5, ETC.
H600-278
TO CABINET 2 THRU 16, A1
ADD IN ALTERNATING
ORDER: 20, 3, 19, 4,
18, 5, ETC.
REAR VIEW
PORT CARRIER - J58890BB
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
C
PORT CARRIER - J58890BB
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
B
EXPANSION CONTROL CARRIER - J58890AF
19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 AUX TERM
A
FAN FAN FAN
PORT CARRIER - J58890BB
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
D
PORT CARRIER - J58890BB
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
E
POWER DISTRIBUTION
UNIT
CABINET 2 THRU 16
EPN
555-233-115
