Upgrading a Multicarrier G2 Universal Module to Avaya
DEFINITY Server R EPN running Avaya Communication
Manager
4. Disconnect the "P1" and "P2" cables from the "A" carrier. See
5. Slide the latch up, and disconnect the "P1" cable from the "B" carrier.

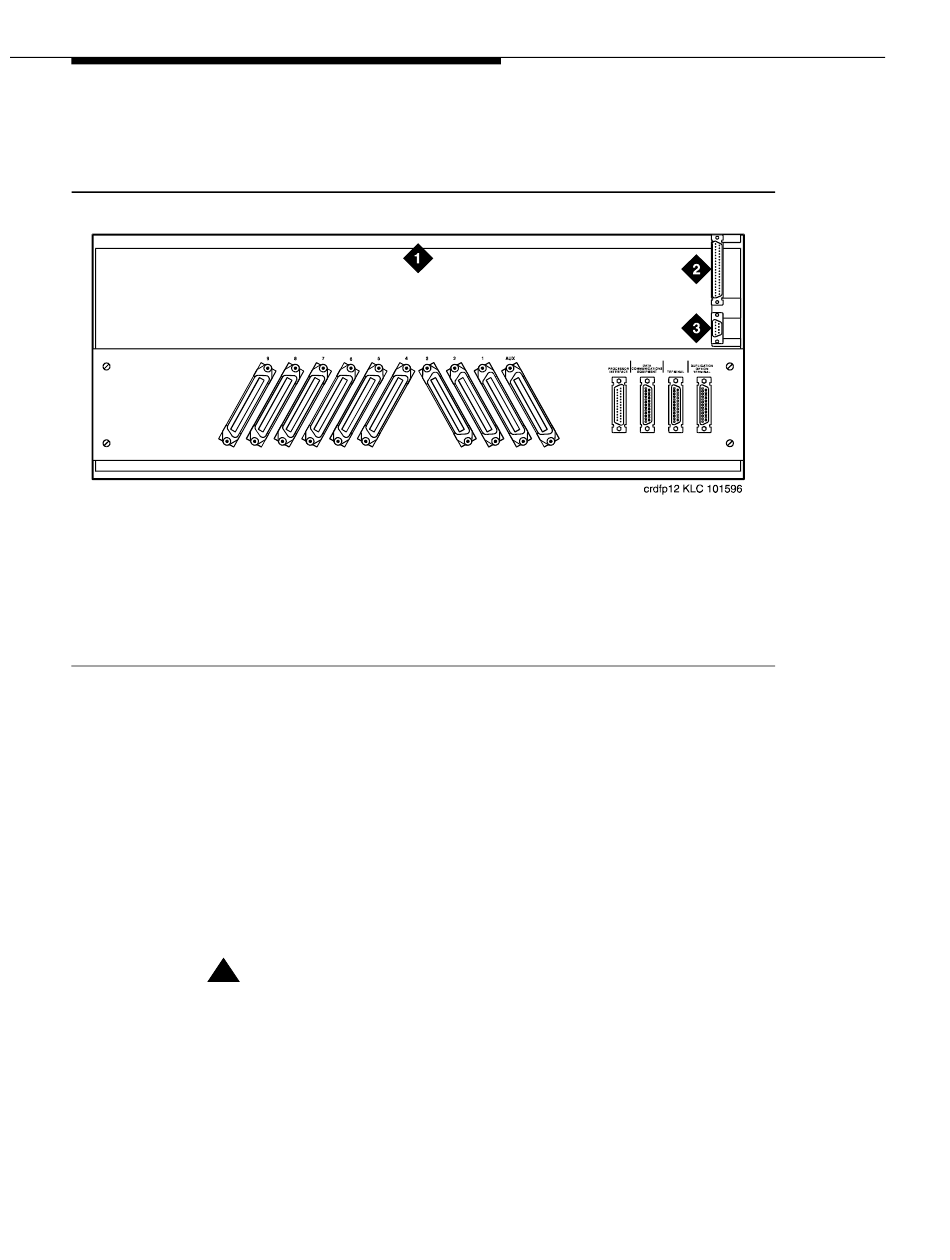

Figure Notes
1. Rear of Control Carrier
2. P2 Connector
Figure 5-7. Location of P1 and P2 Connectors
6. Remove the fan trim plate by pulling it straight off.
7. Clean or replace the air filter (403326820) if necessary.
8. In the front of the carrier, remove the 4 screws (top 2 first) holding the "A"
carrier to the cabinet frame. Use a long handle screwdriver or 5/16-inch
socket with a 10-inch (25 cm) extension.
9. Behind the carrier, remove the 2 screws holding the "A" carrier's rear
connector panel to the cabinet frame.
10. Slide the carrier forward 1 to 2 inches (2.5 to 5 cm). Be sure that no cables
or wiring harnesses are caught on the cabinet/carrier framework.
!
CAUTION:
Cables and wiring harnesses can be damaged if they catch on the
framework and if too much pressure is applied in removing the carrier.
11. Remove the carrier by sliding it out the front of the cabinet.
