Add IP Solutions
Connect the Modem
NOTE:
These instructions are for connecting the U.S. Robotics modem supplied to
U.S. customers only. If using a different modem, follow the manufacturer's
instructions on connecting the modem.
1. Connect the RS232 port of the modem to the MODEM connector of the
TN802B external cable assembly.
NOTE:
Check the labels near the connectors; the MODEM and COM2
connectors look the same.
2. Connect an analog telephone line to the left most analog-line port on the
modem as shown in
3. Make sure that the modem's DIP switches are set as shown in
Figure 7-10
4. Plug the modem into an AC power outlet.
5. Turn on the modem using the switch on the front of the modem.
1
Figure Notes
1. Connect analog line here.
2. DIP switch 5 must be up.

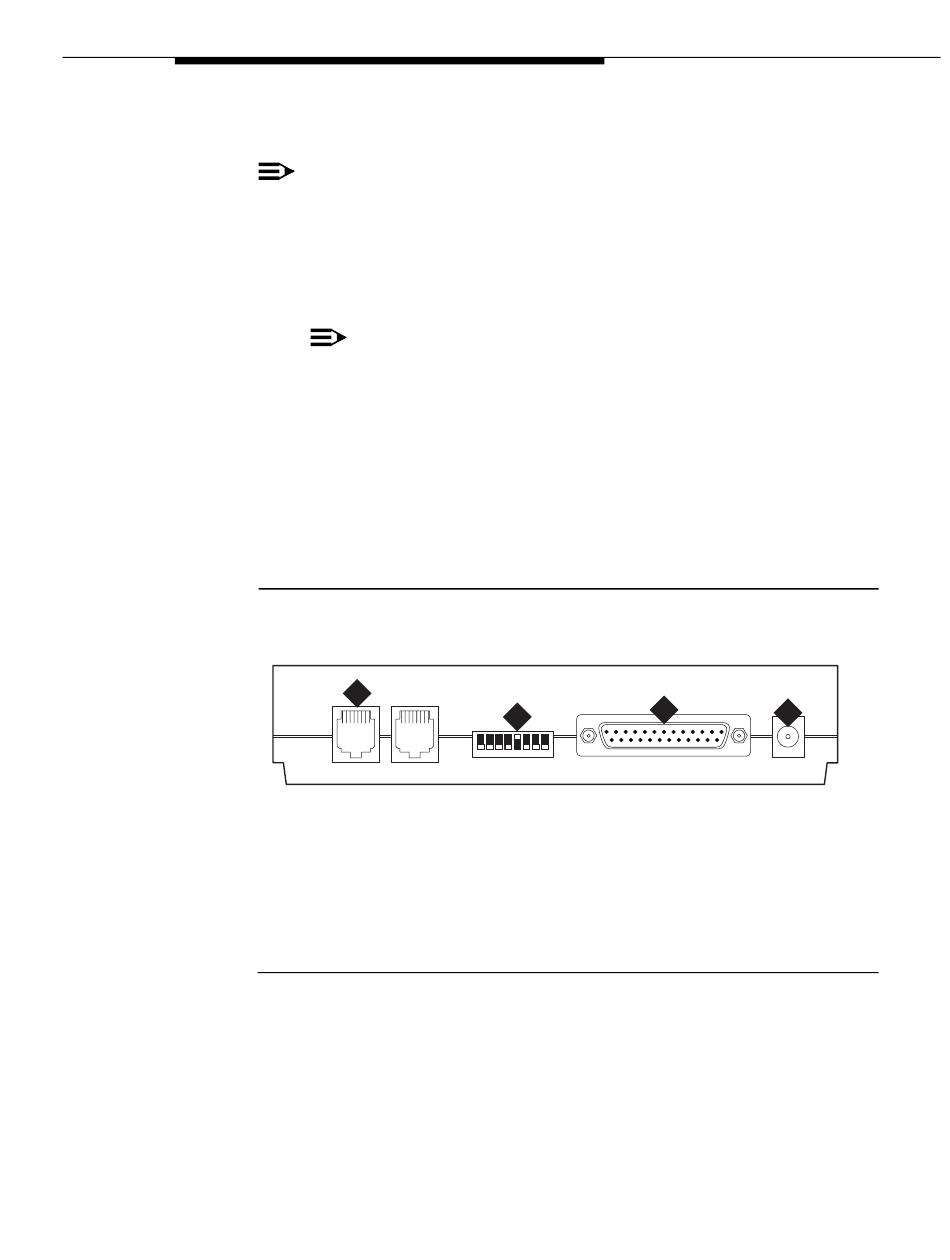

Figure 7-10. External Modem Connections for U.S. Robotics Modem
555-233-115
Figure 7-10.
and Table 7-12.
2
1 2 3 4 5 6 7 8
3. Connect MODEM connector here.
4. Connect power connector here.
3
4
modfrobo KLC 030499
