Upgrades and additions

Hide thumbs Also See for DEFINITY Server R:

Table of Contents

Interconnect Port Networks with Fiber Optic Cabling

Figure Notes

1. Cabinet 1 PPN with 1 Switch Node

2. Cabinet Stack 2-16 EPN

3. Metallic Cable (H600-278)

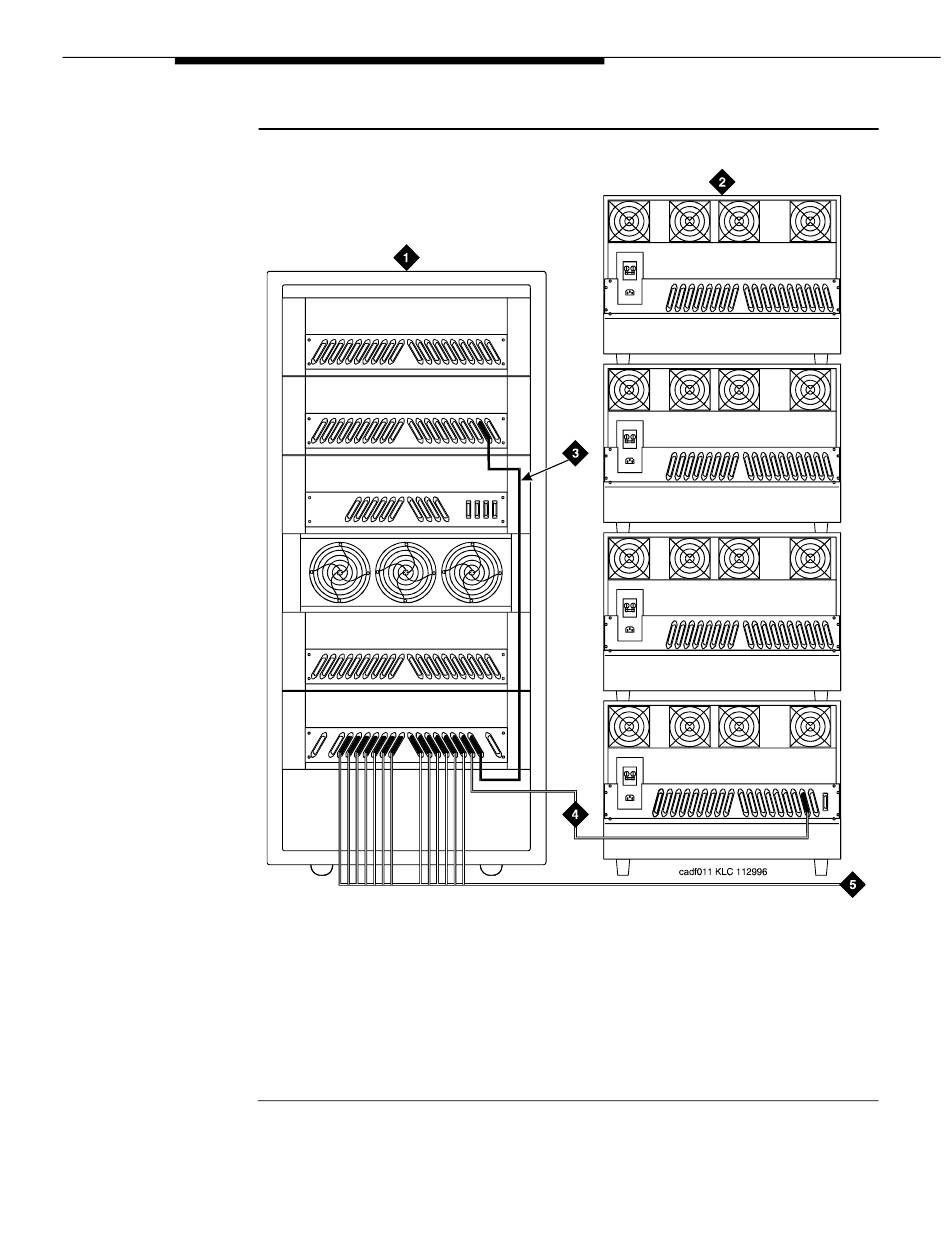

Figure 4-16. Fiber Optic Connections Through Center Stage Switch

4. Add Links to EPNs in Alternating Order

(20, 3, 19, 4, 18, 5, and so forth)

5. To additional EPNs

Issue 7 November 2003
