Adding New Carriers and EPN Cabinets
TDM/LAN CABLE
WP91716 L6
TDM/LAN CABLE
WP91716 L6
NOTE:
ON PORT CARRIER J58890BB-1, CONNECT THE TDM/LAN CABLE OR TDM/LAN TERMINATOR TO
SLOT 02. ON PORT CARRIERS J58890BB-2 AND -3, CONNECT THE TDM/LAN CABLES TO SLOT 01.

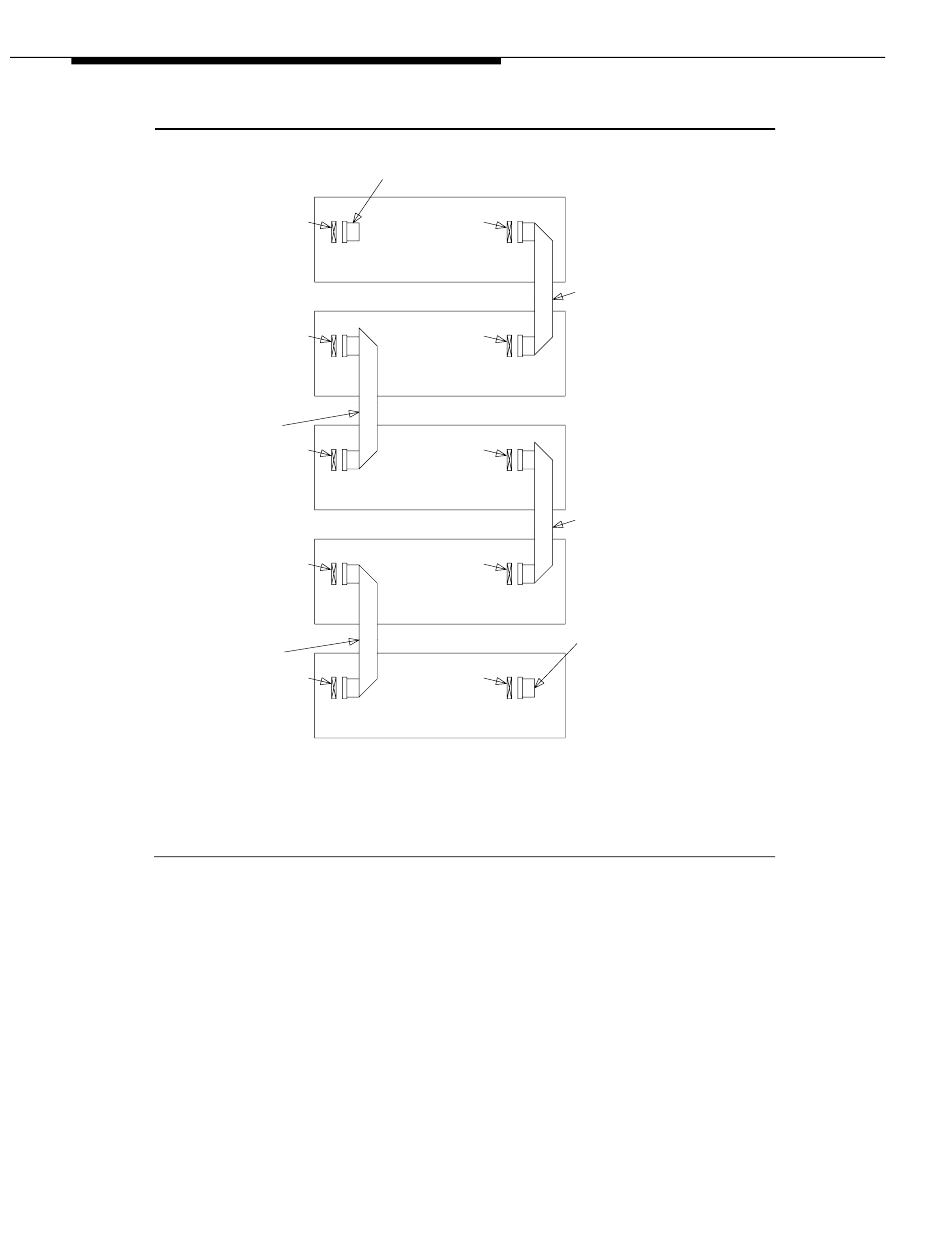

Figure 6-8. TDM/LAN Connections for Standard-Reliability PPN
6-18
Issue 7 November 2003
TDM/LAN BUS TERMINATOR
(ZAHF4)
SLOT 21 SEE NOTE
PORT CARRIER
SLOT 21 SEE NOTE
PORT CARRIER
SLOT 21 SLOT 01
CONTROL CARRIER
SEE NOTE
SLOT 21
PORT CARRIER
SEE NOTE
SLOT 21
PORT CARRIER
REAR VIEW
J58890BB
C
TDM/LAN CABLE
WP91716 L6
J58890BB
B
J58890AP-1
A
TDM/LAN CABLE
WP91716 L7
J58890BB
D
TDM/LAN BUS
TERMINATOR
(ZAHF4)
J58890BB
E
555-233-115
