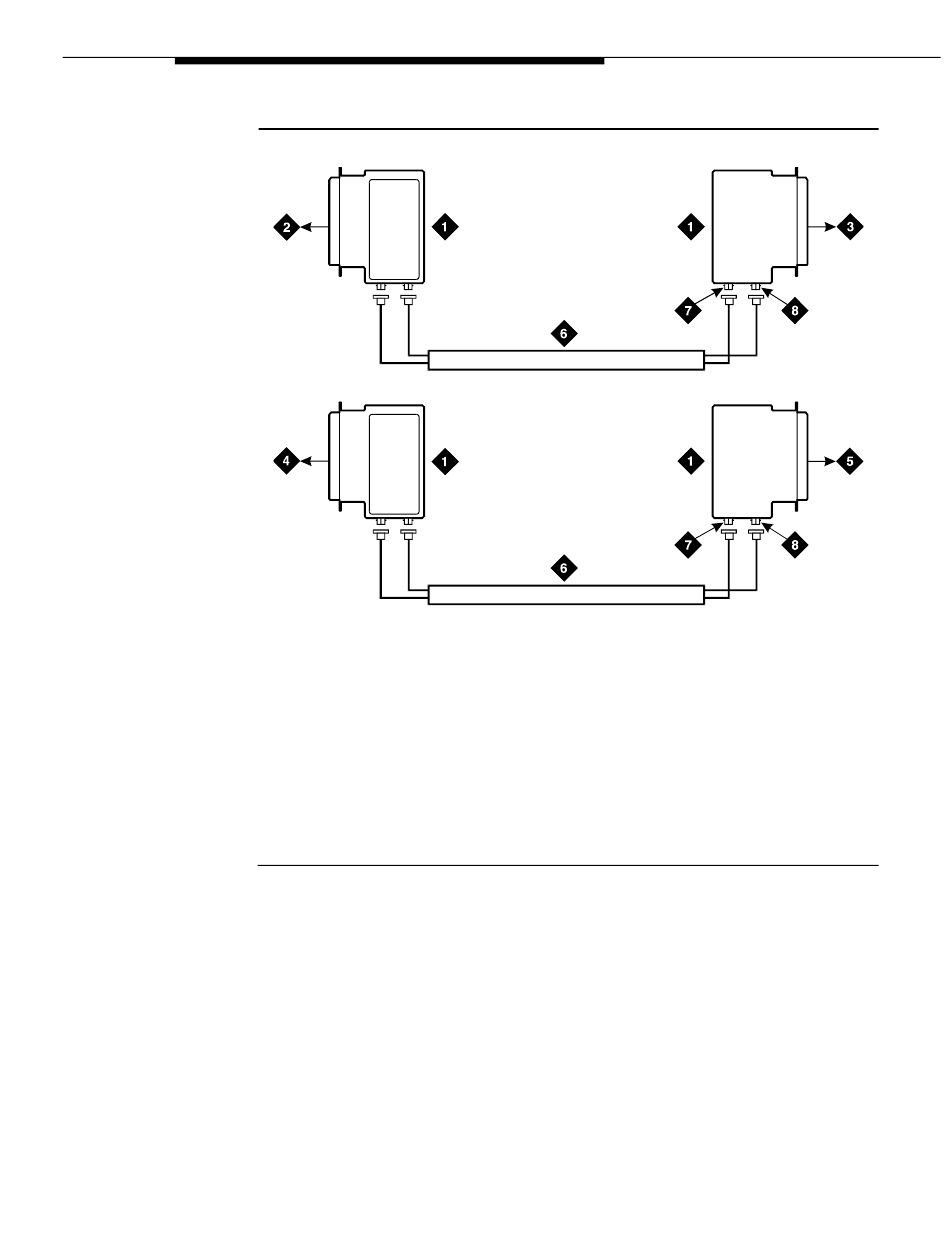

Interconnect Port Networks with Fiber Optic Cabling
Figure Notes
1. Lightwave Transceiver
2. To PPN Carrier D Slot 1D02
3. To EPN 1 Carrier A Slot 2A01
(Cabinet Stack 2)
4. PPN Carrier C Slot 1C02
Figure 4-15. Fiber Optic Connections PPN to EPN1
555-233-115
RX TX
4 3
RX TX
2 1
4 3
2 1
5. EPN1 Cabinet B Slot 2B02
6. Fiber Optic Cable
7. TX Connector
8. RX Connector
