vacon • 46 Installation
®
5.8.2 Updating the OPTEA and OPTE9 option board firmware with VACON Loader
®
The VACON Loader can be downloaded from http://drives.danfoss.com website. It has been
®
bundled with the VACON Live software package.
To update the option board firmware, follow the steps below.
® ® ®
NOTE! With VACON 20, the baud rate 9600 must be used. With VACON 20 X and VACON 20 CP,
the following baud rates are supported: 9600, 19200, 38400 or 57600.
Step 1. Connect your PC to the controller by using the USB/RS485 cable.
Then select the firmware file which you want to load to the option board and double click it. This will
®
start the VACON Loader software. You can also start the program from the Windows Start menu.
In this case, select the firmware file using the "Browse" button (see Figure 16).
®

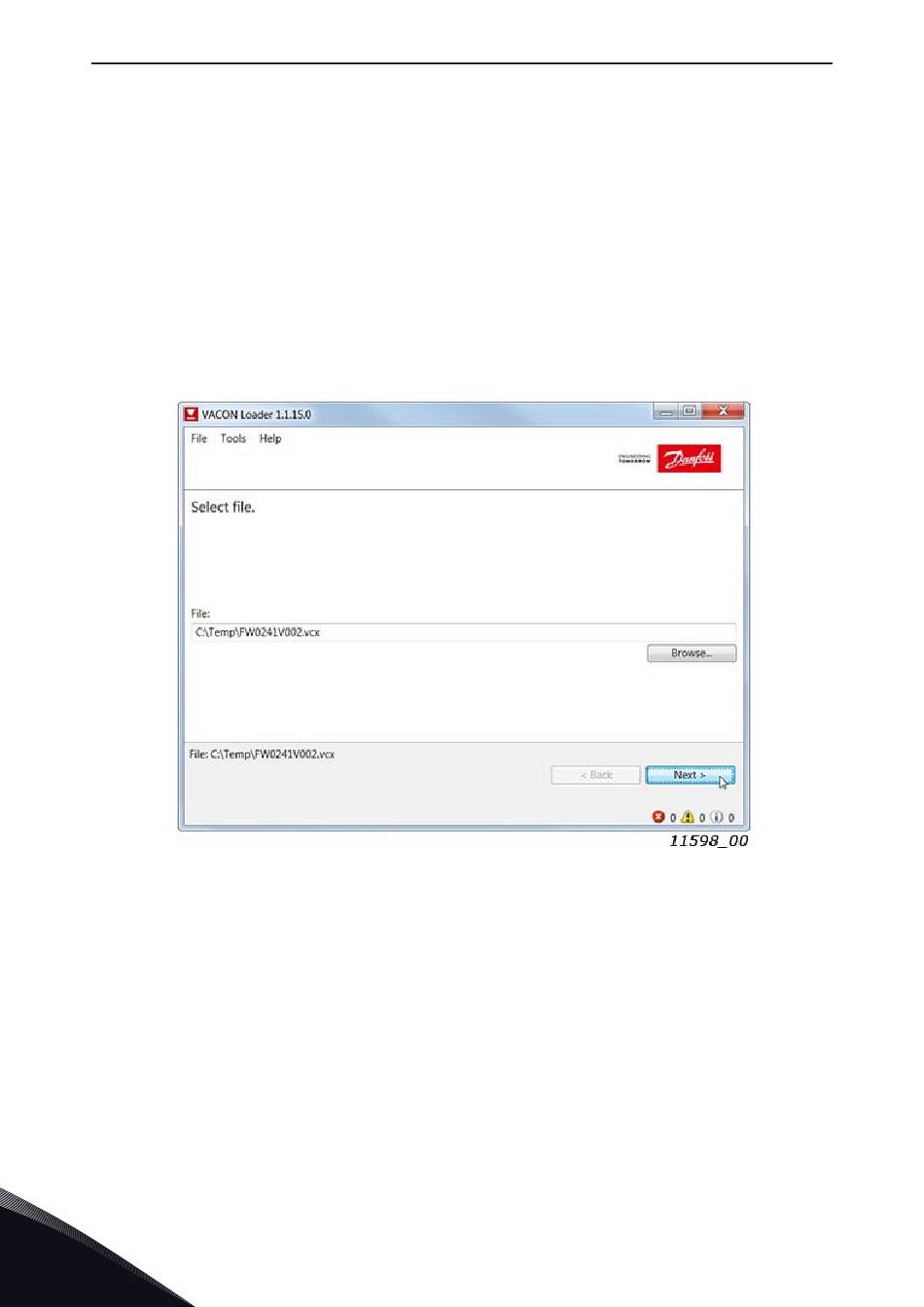

Figure 16. VACON Loader: File selection
