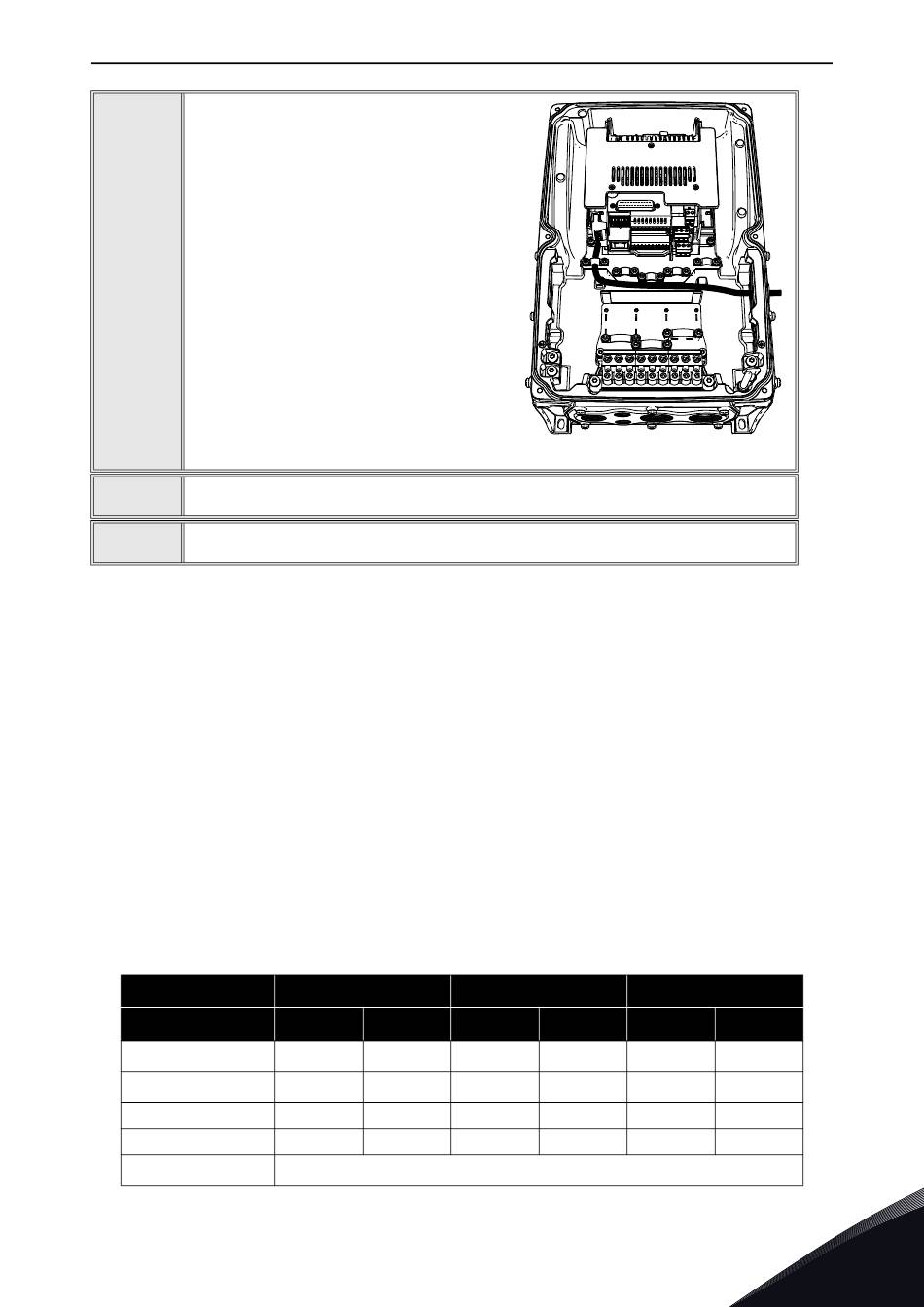

Installation
Attach a cable gland on the hole in the
cable entry plate. Pull the Ethernet cable
through the hole.
NOTE! The Ethernet cable must go
through the correct cable entry plate to
avoid going near the motor cable.
7
8
Put the cable entry plate back.
9
Close the cover of the AC drive.
5.8

PC Tools

Before connecting the Ethernet option board to the network, its IP addresses must be set according
to the network. By default, the option board uses a DHCP server to get an IP address. If your network
does not have a DHCP server, you need to set an IP address manually. This can be accomplished
with the PC tools described in this chapter or with the AC drive's keypad (see Chapter 6
"Commissioning").
For more information about IP addresses or a DHCP server, contact your network administrator.
5.8.1

PC tool support

This table describes what PC tools are supported in each AC drive type. The connection type "serial"
means a direct connection to the AC drive. The connection type "Ethernet" means a connection via
the board's Ethernet port. Table below applies to both OPTEA and OPTE9 boards. These PC tools can
be downloaded from http://drives.danfoss.com
Table 14. The supported PC tools with different AC drives
Tool
®
VACON Loader
®
VACON Live
NCIPConfig
NCDrive
NCLoad
Local contacts: https://www.danfoss.com/en/contact-us/contacts-list/
website.
®
VACON 100 family
Serial Ethernet
x
x x
x
Not supported, VACON
®
VACON NXS/NXP
Serial Ethernet
x
x
x
®
Loader must be used
vacon • 45
11642_00
®
VACON 20 family
Serial Ethernet
x
x
x
5
