INJECTOR TEST

Preparation
1 ECU
2 Test Coupling(No.1-60)
3 Test Coupling(No.61-120)
4 Measuring Beaker
5 Shop Made Cable
Tools Required
129 589 00 21 00 Test Box
210 589 08 63 00 Ecu Test Cable
Connection of the Equipment

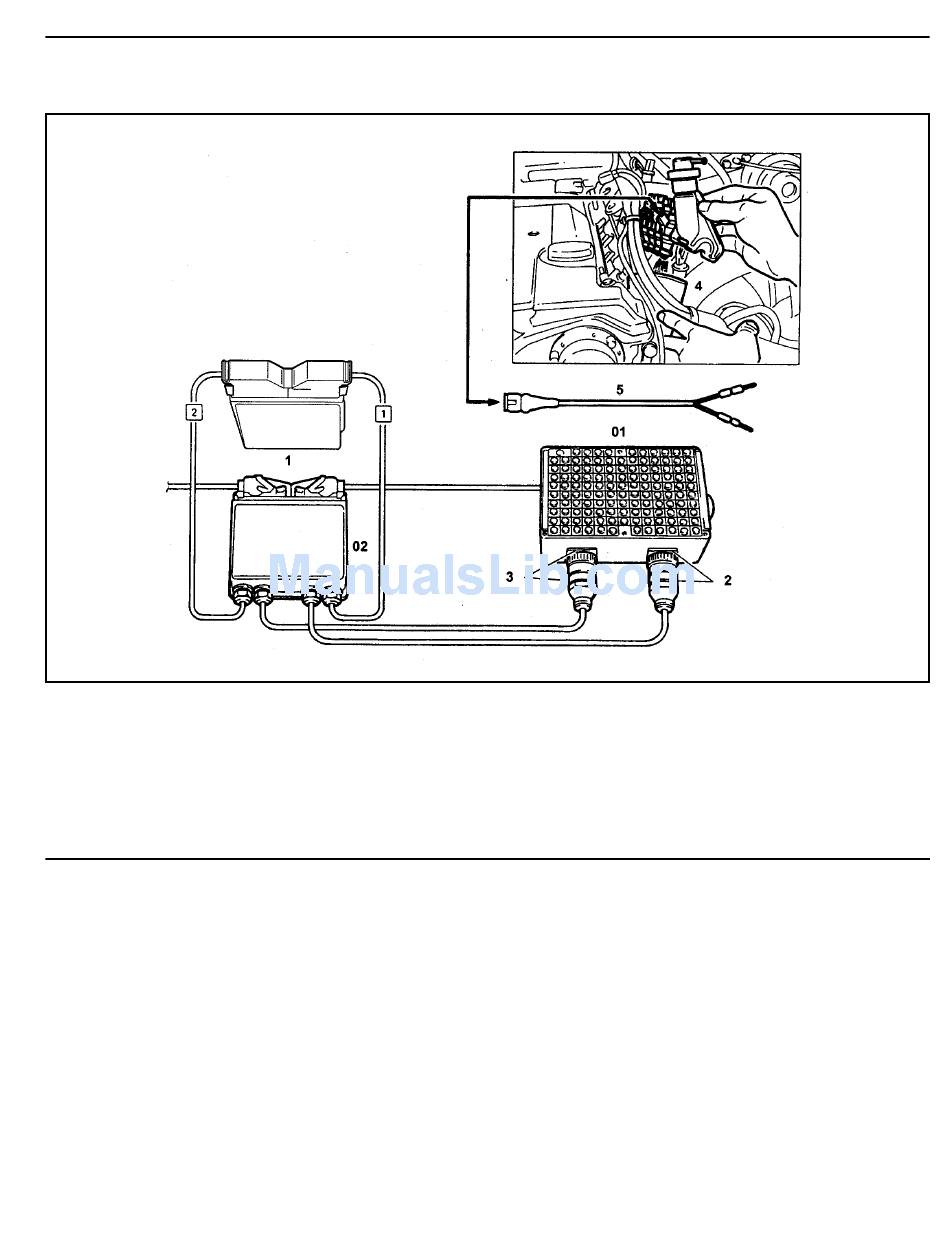

1. Connect the test box to the ECU as shown in the figure.
2. Remove the 2-pin coupling from injector.
3. Remove the fuel distributor and injector with a unit. At this
time, do not remove the supply and return line.
4. Connect the shop made cable to the injector with a firing
order.
5. Collect the fuel from injector.
M162 ENGINE CONTROLS 1F1-33
03 Test Box
04 ECU Test Cable
