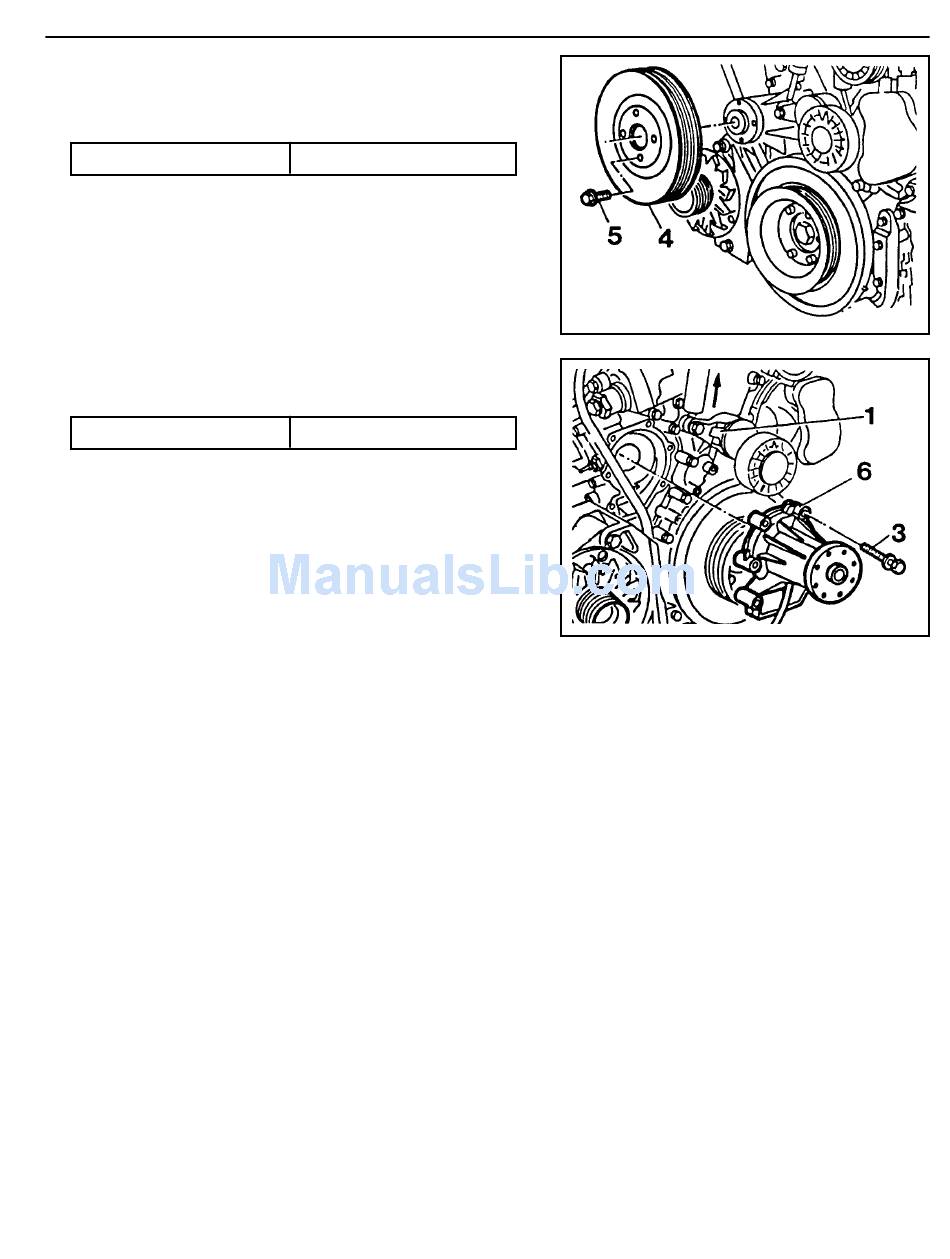

Removal & Installation Procedure
1. Loose the bolts(5) and remove the pulley (4).
Installation Notice
Tightening Torque
2. Loose the bolts (3).
Installation Notice
Tightening Torque
3. Pull the tensioning lever(1) to the arrow direction.
4. Remove the coolant pump(6).
Notice
Clean gasket residues on the sealing surface of coolant
pump and replace the gasket.
5. Installation should follow the removal procedure in the
reverse order.
10 Nm
10 Nm
