5A-46 AUTOMATIC TRANSMISSION

PARKING MECHANISM

When Park is selected the manual lever extends the park rod rearwards to engage the parking pawl (refer to (figure
4.5). The pawl will engage the external teeth on the ring gear thus locking the output shaft to the transmission case.
When Park is not selected a return spring holds the parking pawl clear of the output shaft, preventing accidental
engagement of Park.

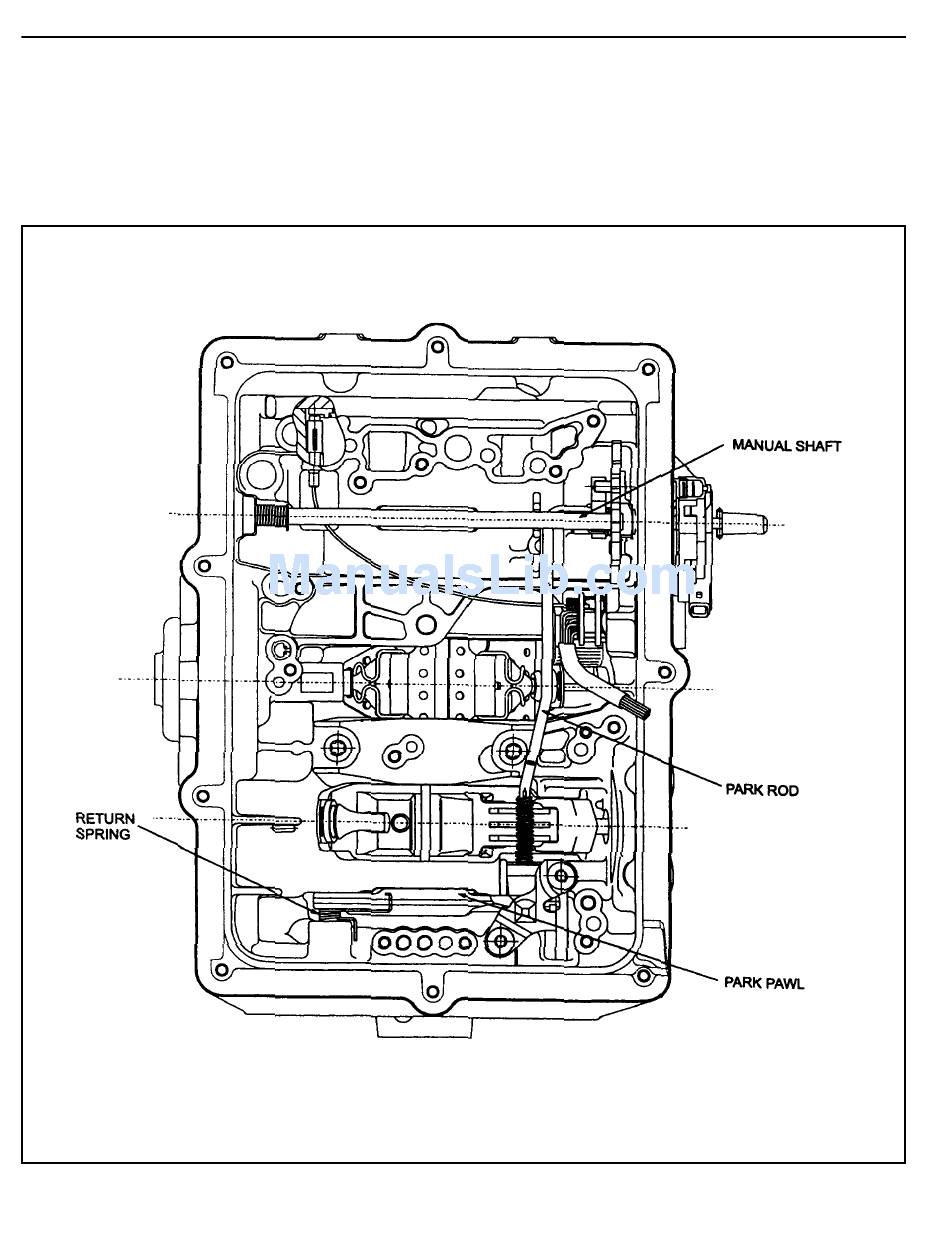

Figure 4.5 - Park Rod and Cross Shaft
