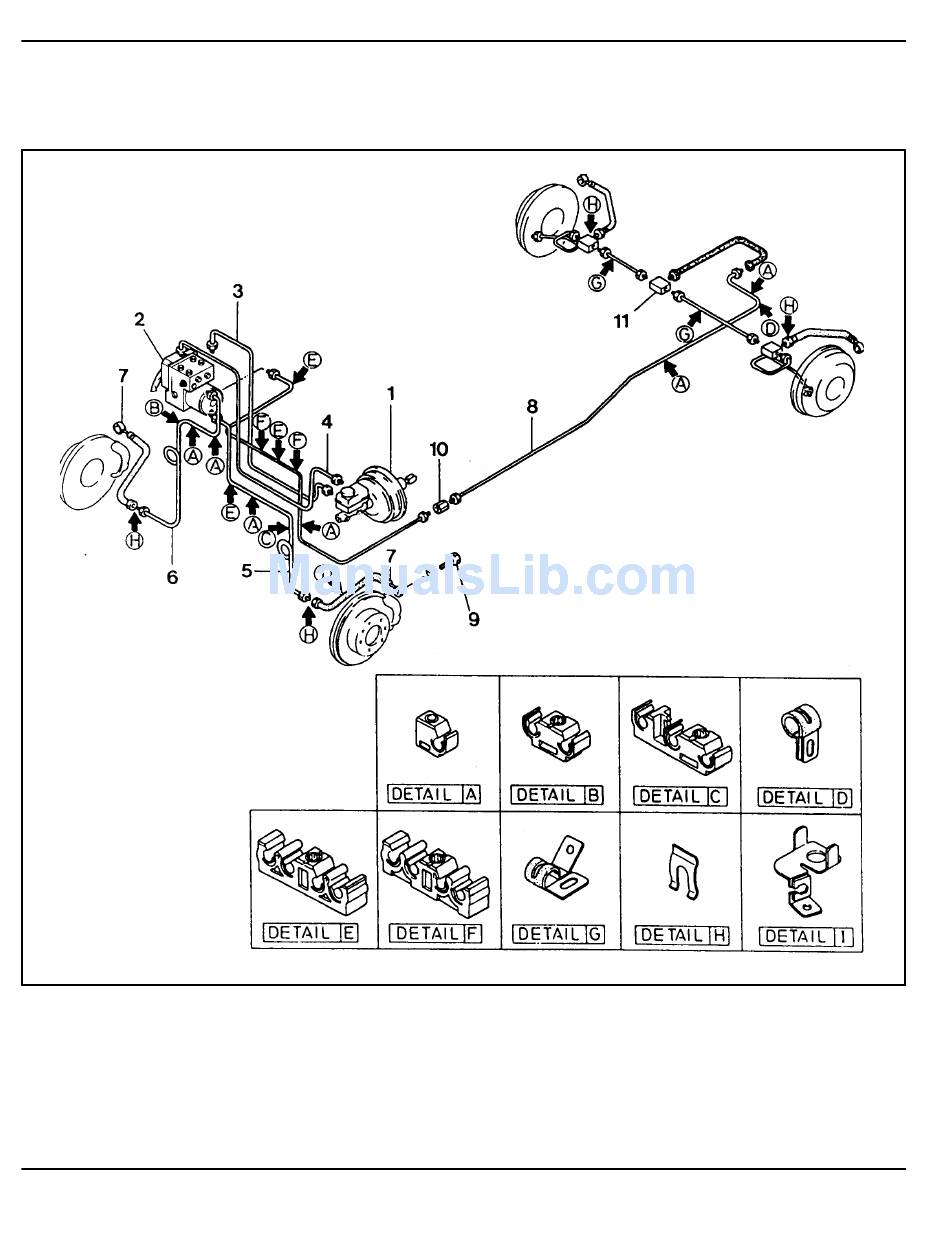

4A-4 HYDRAULIC BRAKES
ABS
1 Actuation Assembly (Booster+TMC)
2 ABS Control Unit
3 Master Cylinder 2nd Tube (Secondary)
4 Master Cylinder 1st Tube (Primary)
5 Front Tube (LH)
6 Front Tube (RH)
COMPONENT LOCATOR
7 Brake Hose
8 Rear Tube
9 Bolt ...................................................... 25-35 Nm
10 2-way Connector
11 3-way Connector
