1E1-6 M162 ENGINE ELECTRICAL

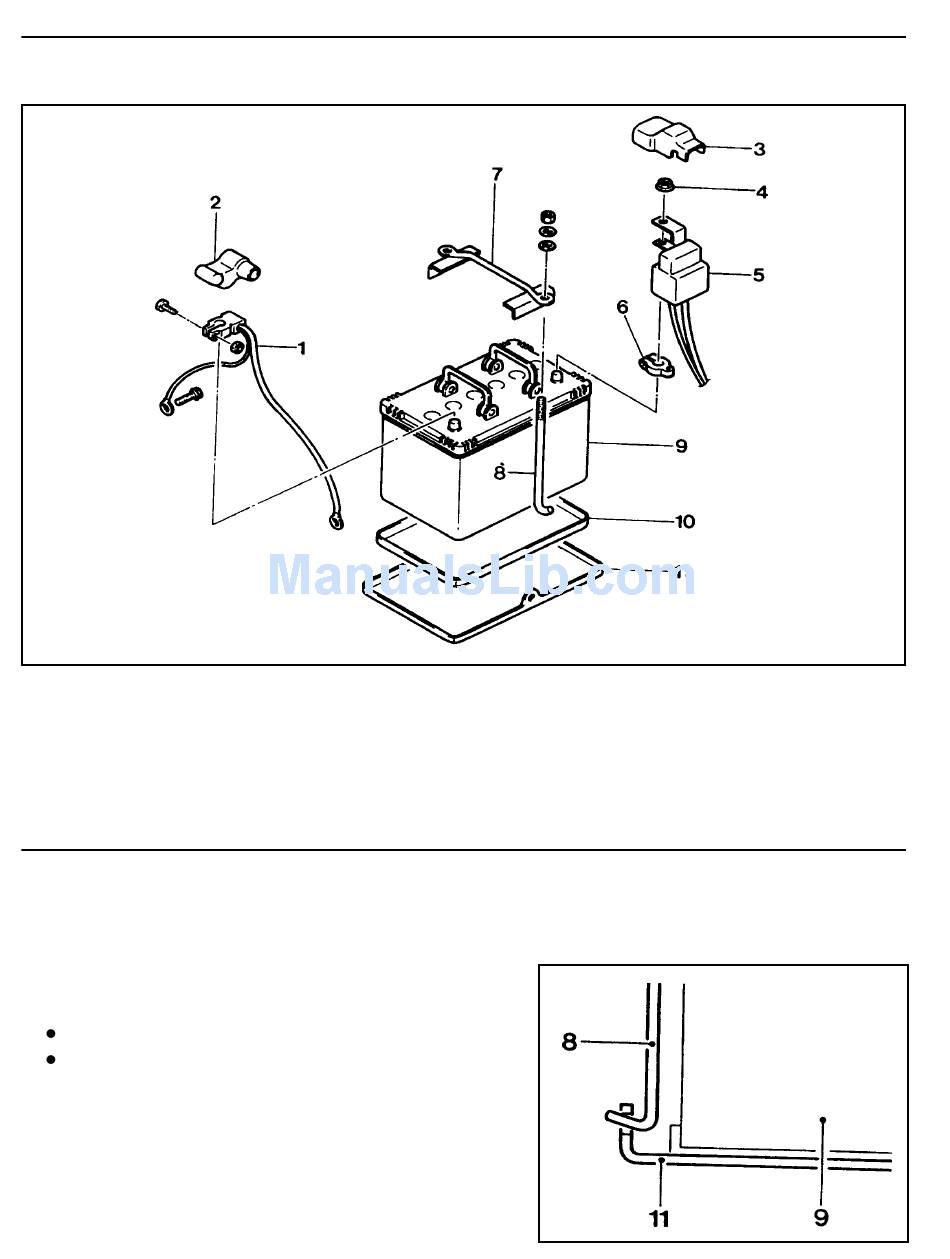

BATTERY
1 Cable Terminal (-)
2 Cable Terminal Cap (-)
3 Cable Terminal Cap (+)
4 Nut
5 Fuseblink Box
6 Terminal (+)
Removal & Installation Procedure
Notice
Disconnect the battery negative cable first.
Insert the clamp bolt (8) into the battery tray hole (11)
from inside when installing.
7 Battery holddown Bracket
8 Battery Clamp Bolt
9 Battery
10 Sub Tray
11 Battery Tray
