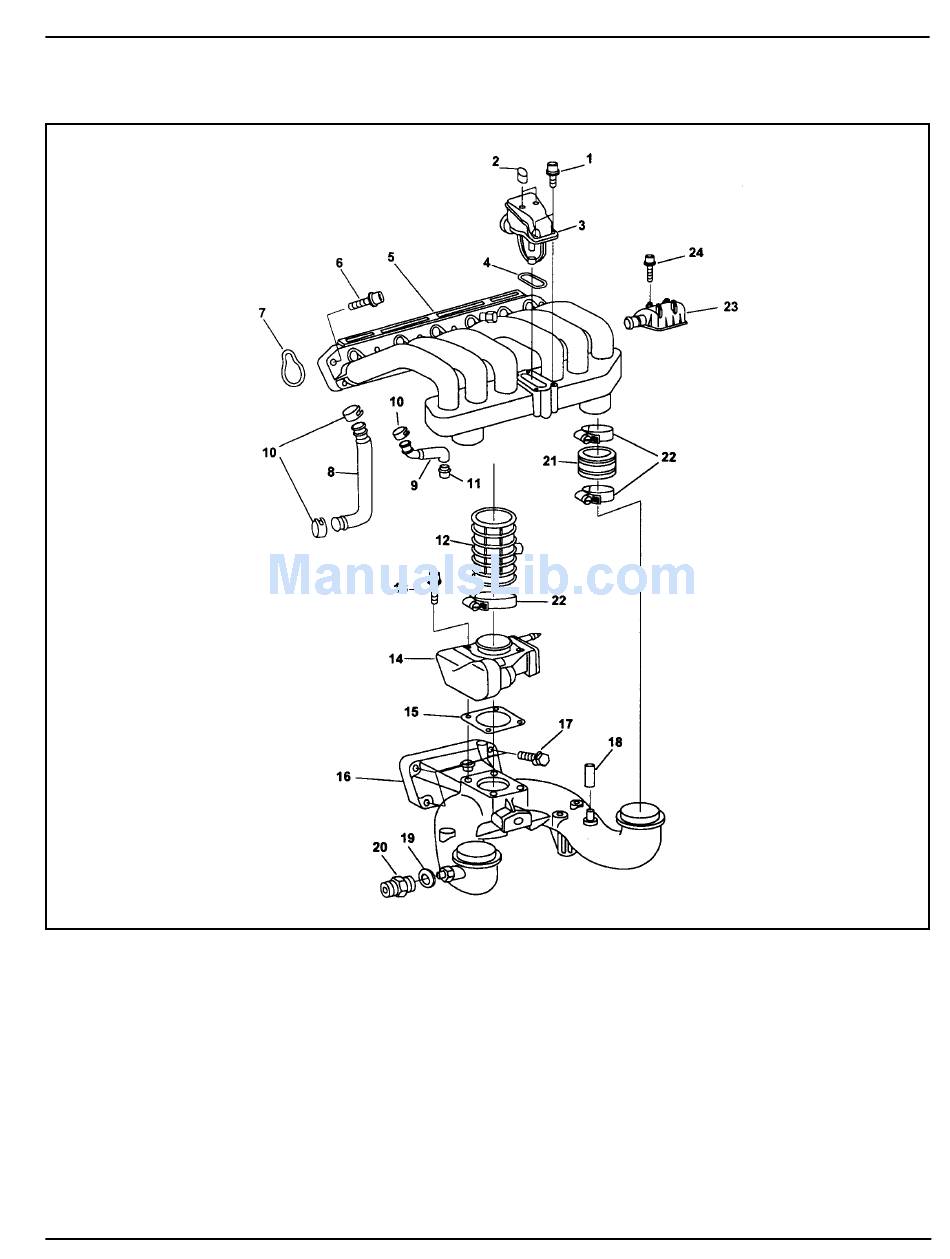

INTAKE MANIFOLD

Preceding Work : Removal of fuel distributor and injection valve
1 Bolt (M6 X 40, 4 pieces) ......................... 9-11 Nm
2 Softcap
3 Resonance Flap
4 Gasket ................................................... Replace
5 Upper Intake Manifold
6 Bolt (M8 x 50, 9 pieces) ................. 22.5-27.5 Nm
7 Gasket ................................................... Replace
8 Blow-by Hose
9 Blow-by Hose
10 Clamp
11 Blow-by Nipple
12 Inlet Air Housing
M162 ENGINE INTAKE & EXHAUST 1G1-5
13 Bolt (M6 x 40, 4 pieces) ......................... 9-11 Nm
14 Throttle Body - Electric
15 Gasket ................................................... Replace
16 Lower Intake Manifold .........................................
17 Bolt (M8 x 40, 4 pieces) ................. 22.5-27.5 Nm
18 Nipple .................................................... Replace
19 Seal Ring
20 Connection House
21 Clamp
22 Noise Damper Assembly
23 Tapping Screw
