1B2-66 M161 ENGINE MECHANICAL

CAMSHAFT

Preceding Work : Removal of cylinder head cover
Removal of camshaft adjust actuator and cylinder head front cover

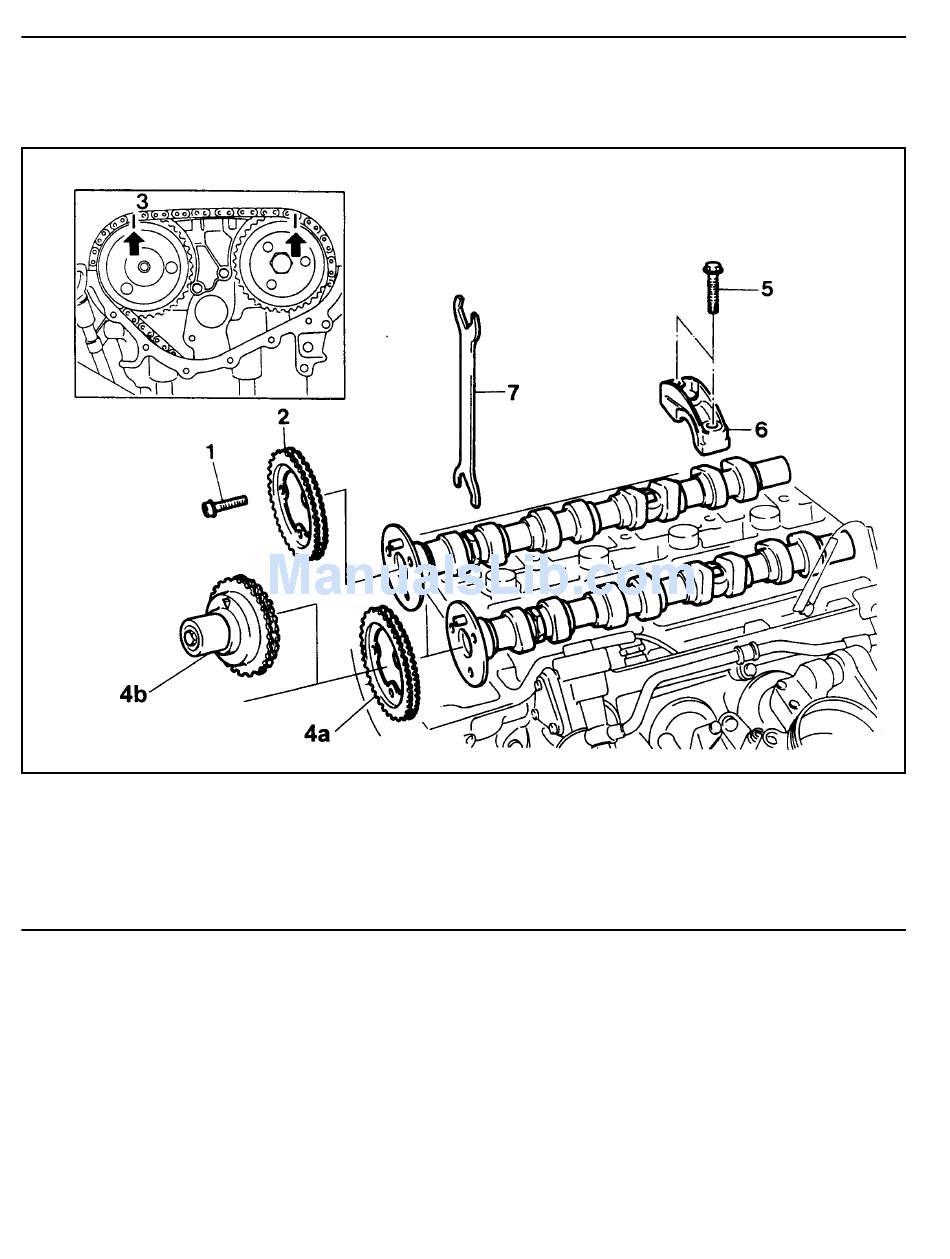

1 Bolt (M7 X 13, 3 pieces) ......... 1st Step 18-22 Nm
2nd Step 90°+ 5° Rotation Added
2 Exhaust Camshaft Sprocket
3 Timing Chain
4a Intake Camshaft Spocket (E20)
4b Camshaft Adjuster and Camshaft Sprocket (E23)
5 Bearing Cap Bolt (20 pieces) ......... 22.5-27.5 Nm
6 Camshaft Bearing Cap
7 Wrench (Special Tool)
