Cylinder Head Guide Rail - SSANGYONG 1999 Musso Service Manual

1B2-86 M161 ENGINE MECHANICAL

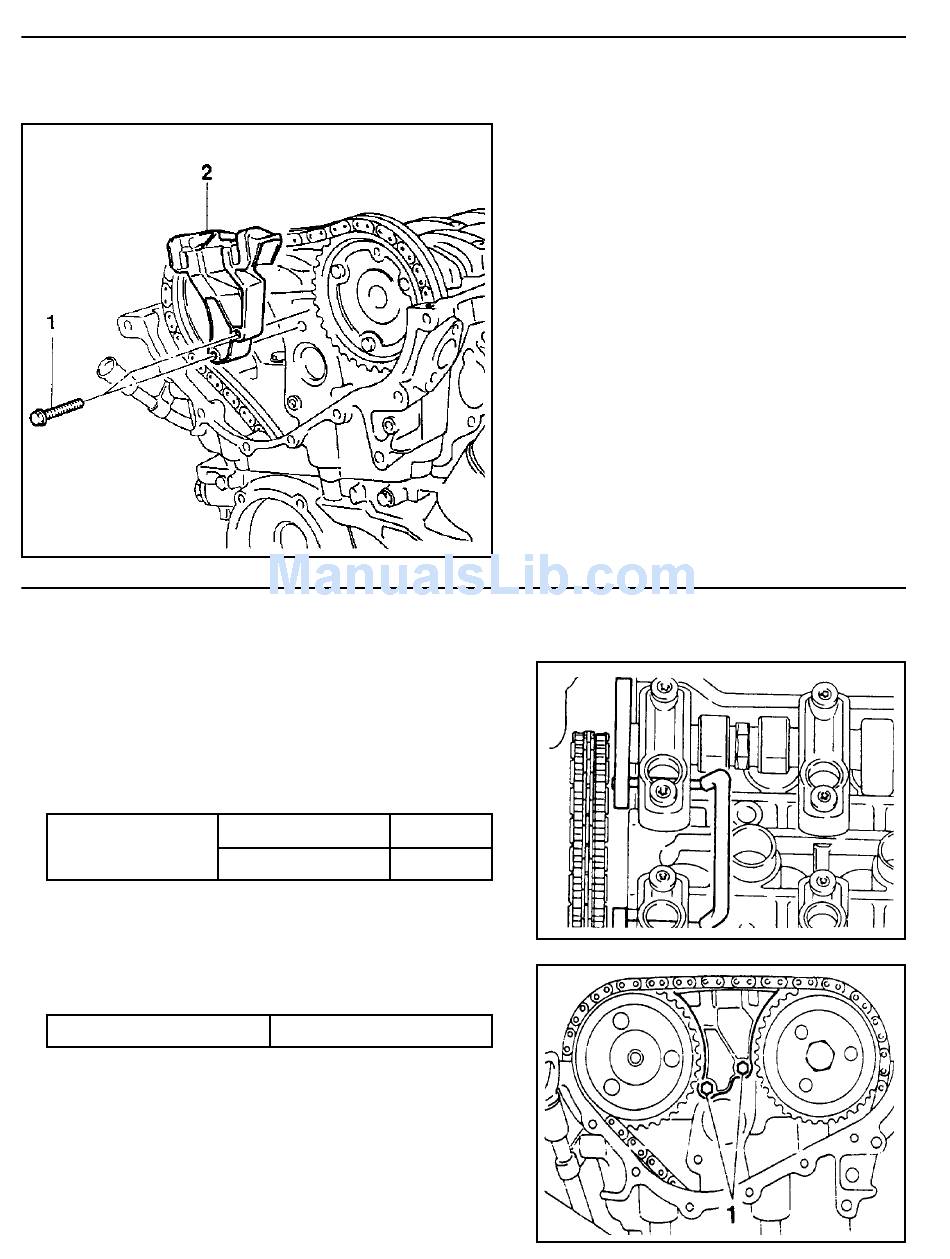

CYLINDER HEAD GUIDE RAIL

Preceding Work : Removal of cylinder head cover
Removal & Installation Procedure
1. Position the number 1 cylinder to ATDC20° guide rail.
2. Install the pin (special tool : 111 589 03 15 00) into the no.1
and no.6 bearing cap hole.
3. Remove the chain tensioner.
Installation Notice
Tightening Torque
4. Unscrew the bolt (1) and remove the guide rail.
Installation Notice
Tightening Torque
5. Installation should follow the removal procedure in the
reverse order.
Screw Plug
Tensioner Assembly 72 - 88 Nm
9 - 11 Nm
1 Bolt (M6 X 45, 2 pieces) .................. 9-11 Nm
2 Guide Rail
40 Nm
