STARTING MOTOR
Removal & Installation Procedure
1. Disconnect the ground cable.
2. Unscrew the nut and disconnect the battery cable(1).
Installation Notice
Tightening Torque
3. Unscrew the nut and disconnect the engine electric wire
(2).
Installation Notice
Tightening Torque
4. Unscrew the mounting bolts (3) of starting motor.
Installation Notice
Tightening Torque
5. Remove the starting motor.
6. Installation should follow the removal procedure in the
reverse order.
12 - 15 Nm
6 - 7 Nm
35 - 48 Nm

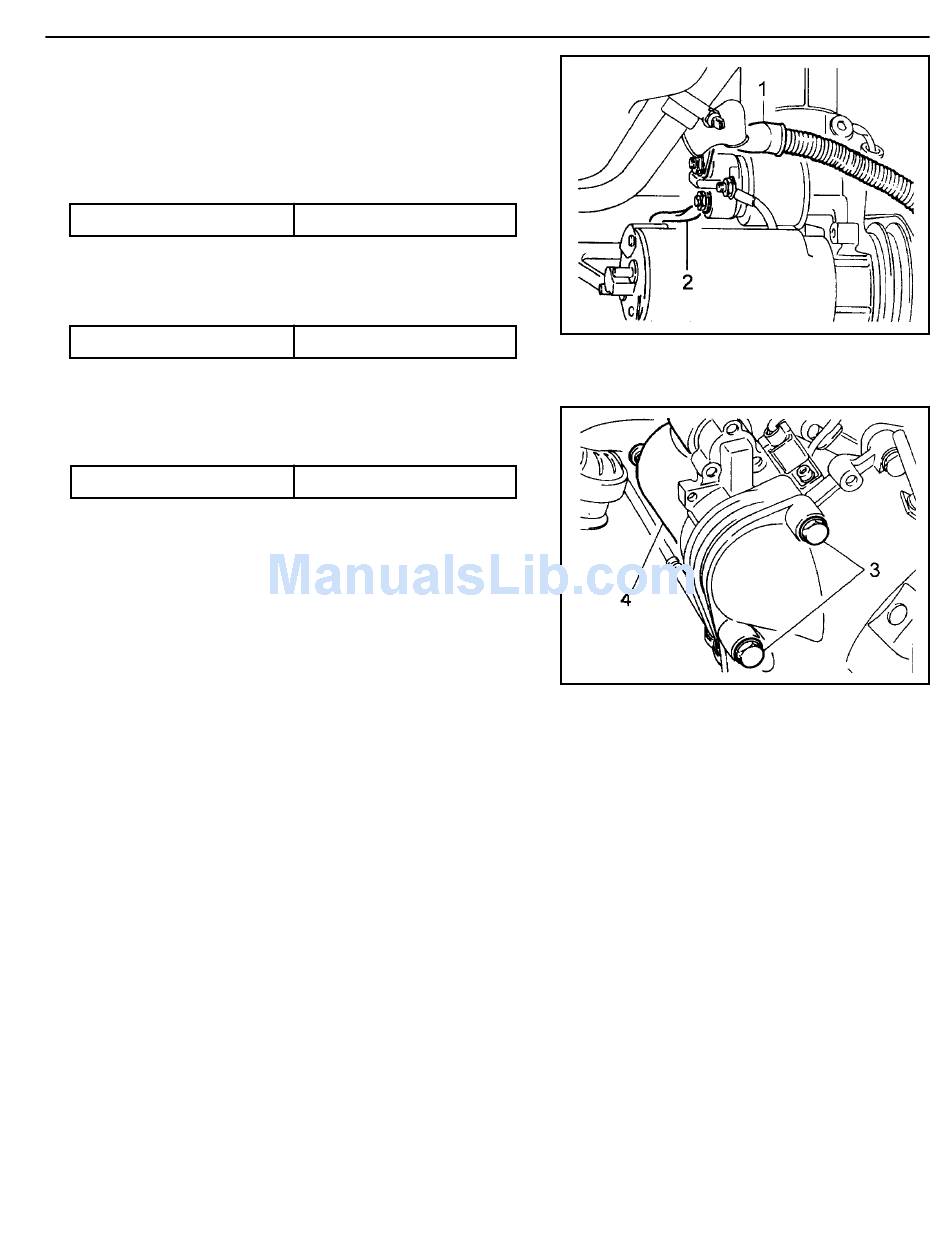

M162 ENGINE ELECTRICAL 1E1-5
1
Battery Cable
2
Engine Electric Wire
3
Fixing Bolt
4
Starting Motor
