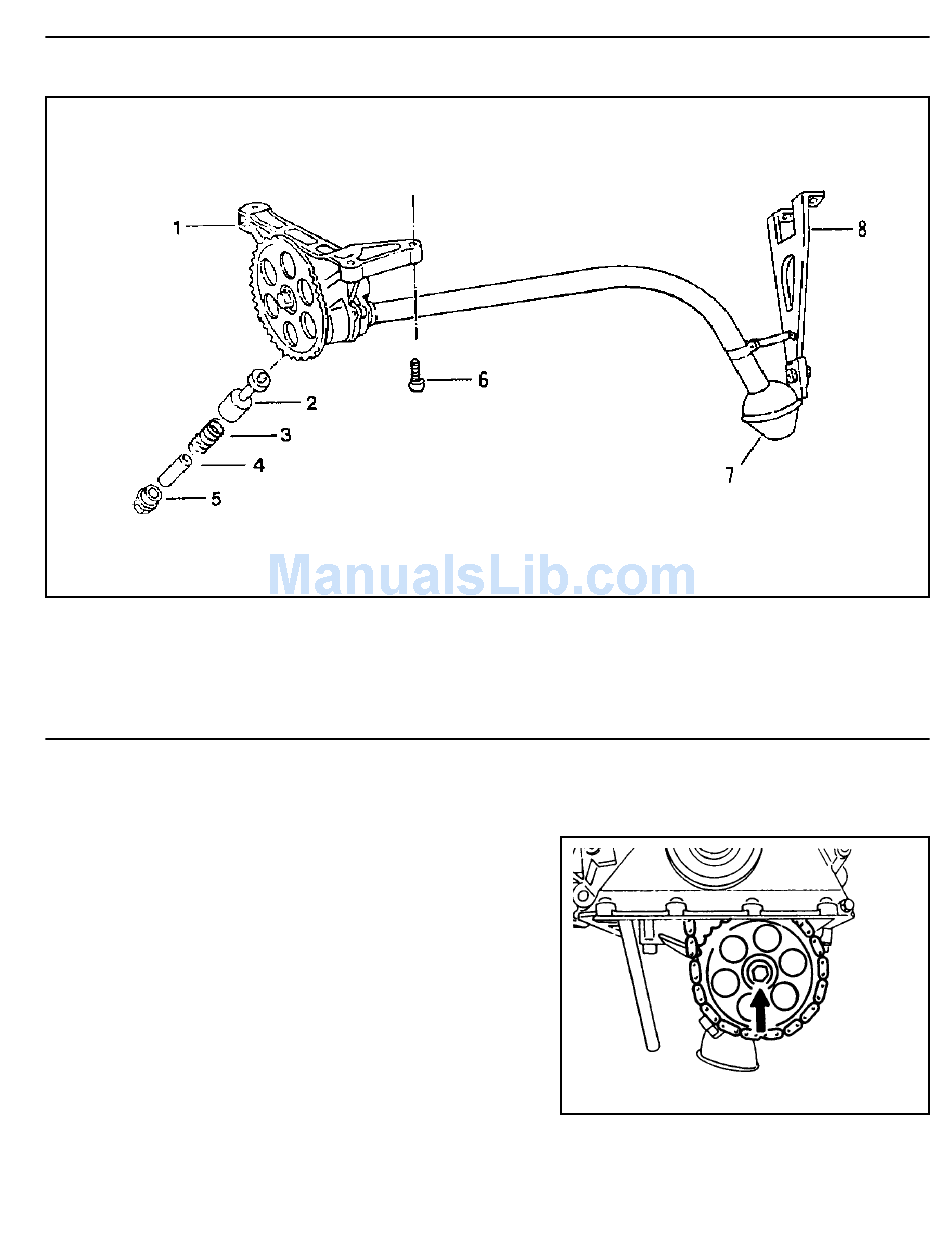

OIL PUMP
1 Oil Pump
2 Piston
3 Pressure Spring
4 Guide Pin
Disassembly Procedure
1. Remove the oil pan.
2. Unscrew the mounting bolt of spracket.
OM600 ENGINE MECHANICAL 1B3-175
5 Screw Plug ................................................ 50 Nm
6 Combination Bolt ...................................... 25 Nm
7 Oil Strainer
8 Bracket
