2A-8 SUSPENSION DIAGNOSIS

ACTUATOR INSPECTION

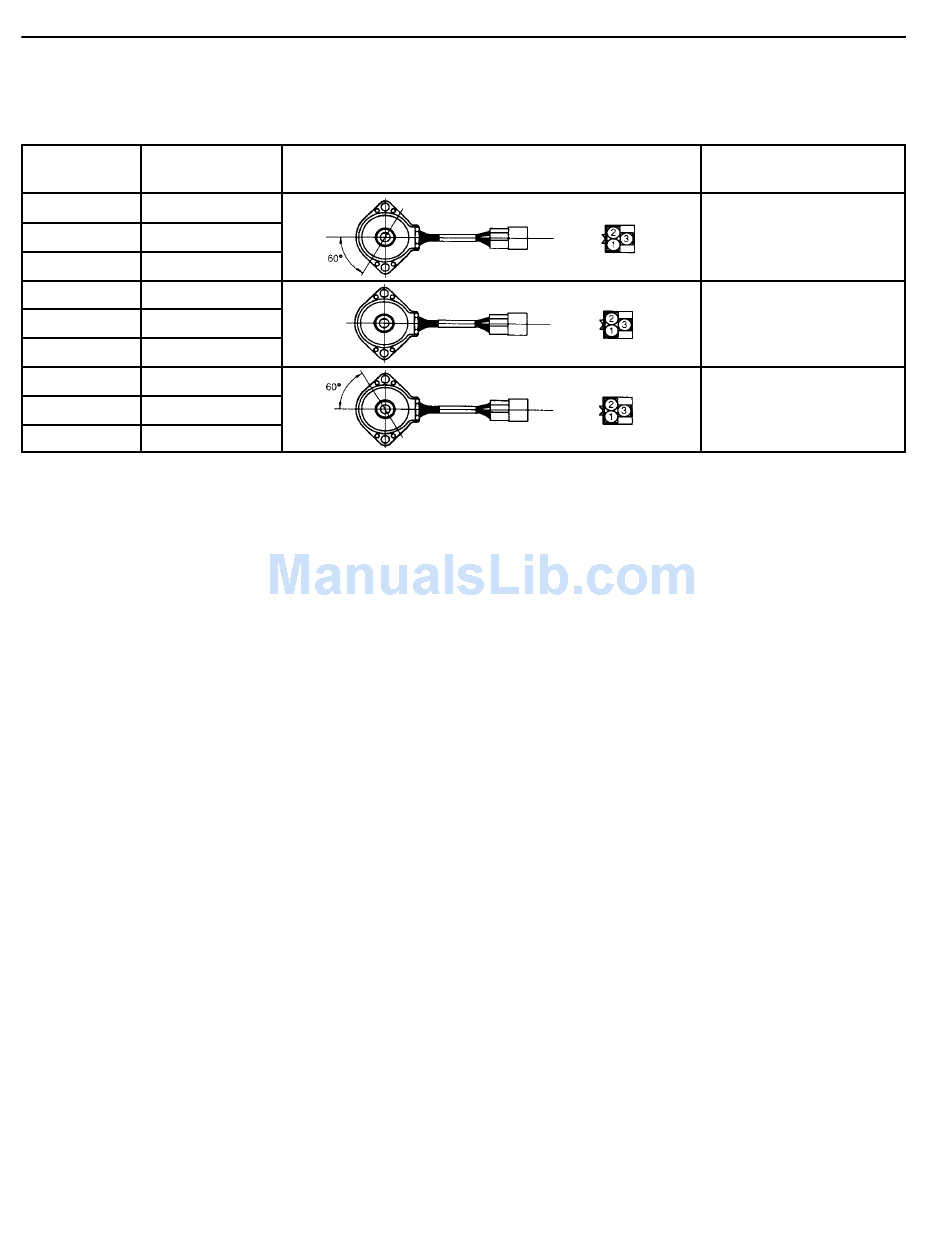

Output position of the actuator should be changed as below when battery voltage is applied between actuator
connector terminals.
Connector
Battery Voltage
terminal
1 (White)
2 (Black)
OPEN
3 (Red)
1 (White)
2 (Black)
3 (Red)
OPEN
1 (White)
OPEN
2 (Black)
3 (Red)
Position of The Actuator Output
-
+
+
-
+
-
Remark
SOFT Mode
MEDIUM Mode
HARD Mode
