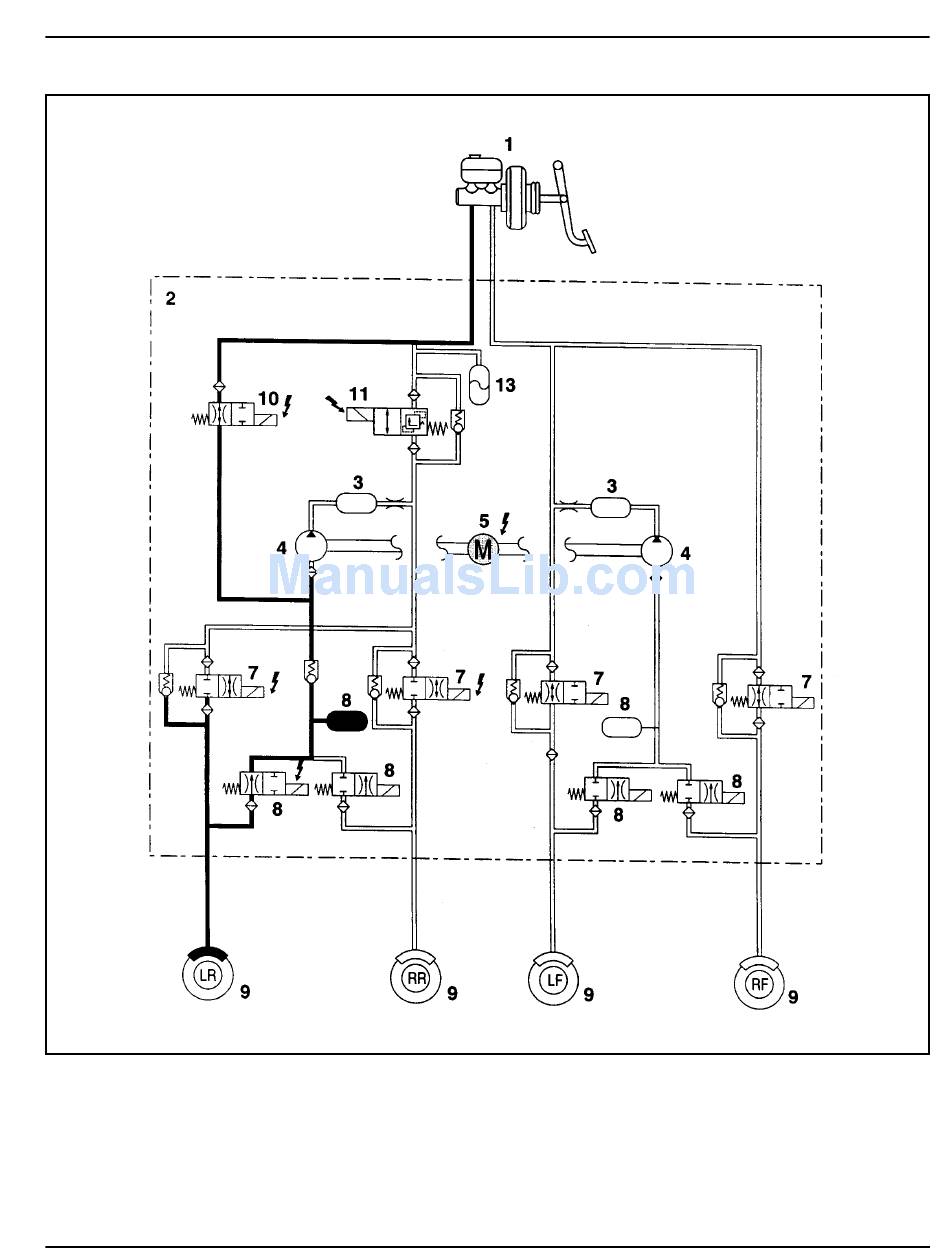

Pressure Decreased
1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor
6 Accumulator Chamber
ANTILOCK BRAKE SYSTEM 4F-25
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Wheel
10 Prime Valve (ASV)
11 Pilot Valve (USV)
12 Check Valve
13 ISD (Integrated Suction Damper)
