Tekelec T1000 Hardware Manual

Tekelec 1000 application server hardware manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Tekelec 1000 Application Server
Hardware Manual
910-0095-001 Revision J
November 2007

Advertisement

Table of Contents
loading

Related Manuals for Tekelec T1000

Summary of Contents for Tekelec T1000

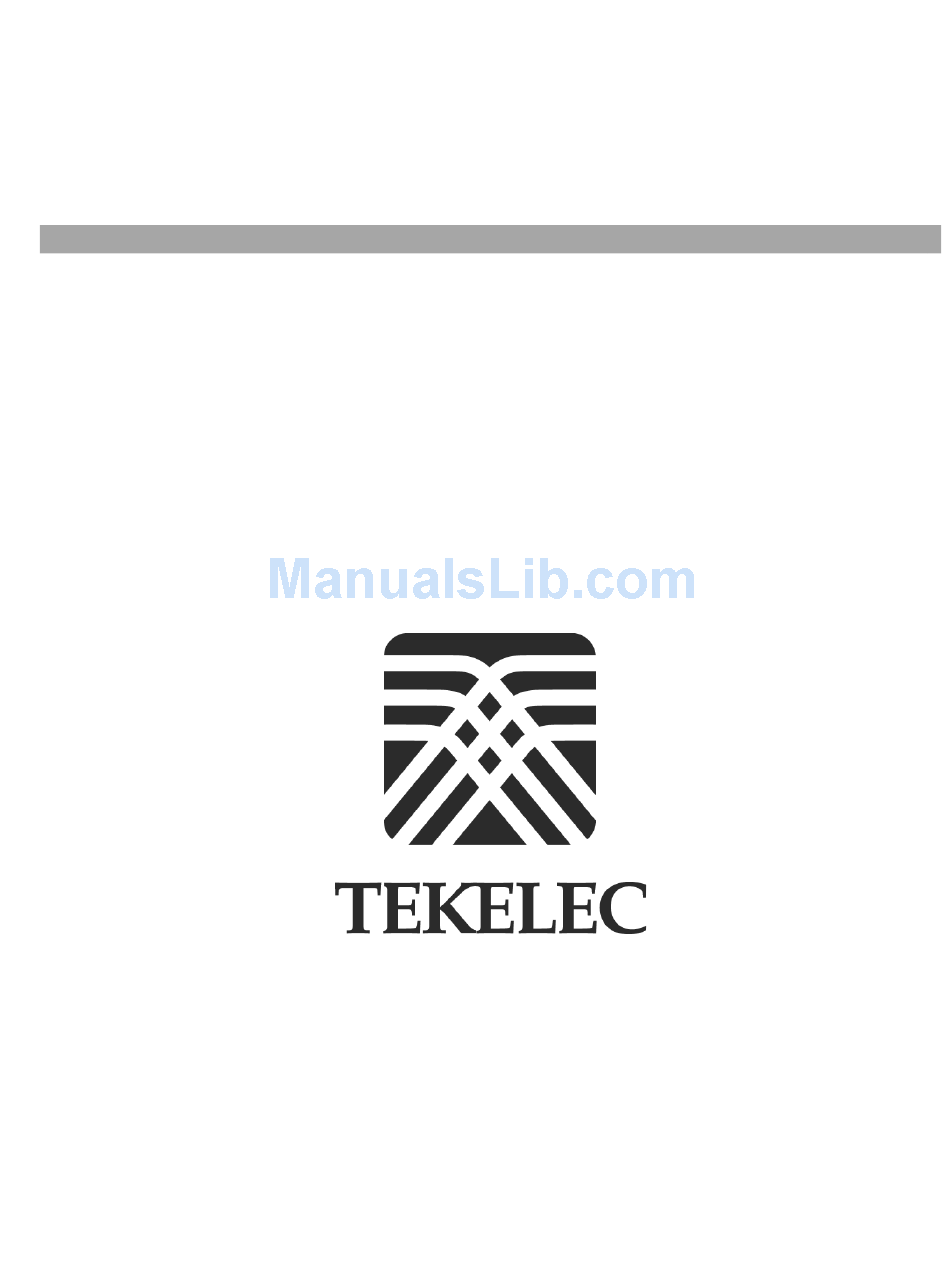

  • Page 1 Tekelec 1000 Application Server Hardware Manual 910-0095-001 Revision J November 2007...
  • Page 2 Information in this documentation is subject to change without notice. Unauthorized use, copying, or translation of this documentation can result in civil or criminal penalties. Any export of Tekelec products is subject to the export controls of the United States and the other countries where Tekelec has operations.

  • Page 3: Table Of Contents

    Grounding and Power Requirements ..........2-8 Chapter 3. T1000 AS Hardware System Overview Introduction ....................3-2 T1000 AS Hardware System in a DC Environment ......3-3 T1000 AS Hardware System in an AC Environment......3-5 T1000 AS Hardware Features..............3-5 T1000 AS Rear I/O Panel ..............
  • Page 4 How to Power Up a Heavy Duty Frame ........6-14 How to Power Up Added T1000 AS Unit in DC Environment. 6-14 How to Power Up a T1000 AS Unit in an AC Environment..6-14 910-0095-001 Revision J, November 2007...
  • Page 5 How to Slide T1000 AS Chassis Back into Frame ......7-9 How to Remove T1000 AS Chassis from a Frame ....... 7-10 How to Return a T1000 AS Chassis to the Frame ......7-14 How to Replace T1000 AS FRUs ............7-18 How to Replace an Air Filter ............
  • Page 6 Table of Contents — Draft — How to Locate T1000 AS Part Numbers ..........B-3 Air Filter Part Number Information..........B-3 Fan Assembly Part Number Information........B-3 Removable Media Disk Drive Assembly Part Number Information ............B-7 Hard Disk Drive Assembly Part Number Information....B-10 PCI Card Part Number Information ..........
  • Page 7 Figure 2-2. Combined UL Mark for the United States and Canada ..2-5 Figure 2-3. Hazardous Substances ...............2-5 Figure 2-4. Door Grounding Strap Placement ..........2-10 Figure 3-1. T1000 AS Hardware System in DC Environment ....3-4 Figure 3-2. T1000 AS Hardware System in AC Environment ....3-5 Figure 3-3. Tekelec 1000 Chassis ..............3-6 Figure 3-4.
  • Page 8 Figure 7-13. Hard Disk Drive Jumper Pins and Settings ......7-30 Figure 7-14. T1000 AS Chassis Label Locations ........7-31 Figure 7-15. Hard Disk Drive Label on T1000 AS Chassis ..... 7-31 Figure 7-16. Hard Disk Drives ..............7-32 Figure 7-17. T1000 AS Front Top Cover ............ 7-35 Figure 7-18.
  • Page 9 Figure B-6. T1000 AS Front Top Cover ............B-9 Figure B-7. T1000 AS Chassis Label Locations ........B-10 Figure B-8. Base Unit/Hard Disk Label on T1000 AS Chassis ....B-11 Figure B-9. T1000 AS Chassis Front View ..........B-12 Figure B-10. T1000 AS Chassis Label Locations ........B-13 Figure B-11.
  • Page 10 Table 2-1. Space Requirements ..............2-7 Table 3-1. Tekelec 1000 Chassis Dimensions ..........3-10 Table 6-1. Post-Installation Checklist ............6-13 Table 7-1. T1000 AS Field Replaceable Units (FRUs) ........ 7-3 Table A-1. Basic Interfaces ................A-3 Table A-2. Optional Interfaces (on PCI Cards) ......... A-3 Table C-1.
  • Page 11 Procedure 6-6. Connect Chassis Ground: T1000 AS Chassis to Ground on Rectifier .................6-11 Procedure 6-7. Verify AC ground ...............6-12 Procedure 6-8. Power Up T1000 AS Unit in an AC Environment..6-15 Procedure 7-1. Replace an Ethernet Switch, Router, Hub, or Console Server....................7-4 Procedure 7-2.
  • Page 12 Drive Assembly..................B-11 Procedure B-5. How to Locate RMA Numbers for PCI Cards ....B-14 Procedure B-6. How to Locate RMA Numbers for a T1000 AS ChassisB-17 Procedure B-7. Preparing Crate and Dolly for Return to Tekelec..B-23 Procedure C-1. Configure Modem with Script ........C-11...
  • Page 13 About This Manual Introduction.......................1-2 Where to Find Information in This Manual..........1-2 Where to Find Other Information ..............1-3 Programs Needed to View Linked Documents ........1-4 Documents That Show How to Perform a Procedure ......1-4 Installation Documents ................1-5 Applications Documents................1-6 Documentation Packaging and Updates............1-6 Documentation Admonishments ..............1-6 Customer Assistance ..................1-7 910-0095-001 Revision J November 2007...

  • Page 14: Chapter 1. About This Manual

    T1000 AS hardware systems. Chapter 4, “How to Install a T1000 AS Frame” Describes how to install a heavy duty frame which is delivered from manufacturing with T1000 AS units mounted in a heavy-duty frame for use in a DC environment.

  • Page 15: Where To Find Other Information

    NOTE: Documentation about T1000 AS hardware components (such as breaker panels or Ethernet switches) that are supplied by other companies is shipped with the T1000 AS hardware system. When unpacking a frame or individual components, be sure to obtain this documentation and store it where it can be accessed later.

  • Page 16: Programs Needed To View Linked Documents

    SHIPPING CRATE, HEAVY DUTY, EAGLE • access_in_frame.mpg, video that shows how to slide T1000 AS chassis out from frame and open lid (also see Procedure , “How to Slide T1000 AS Chassis Out from Frame,” on page 7-7) • replace_filter.mpg, video that shows how to replace a filter (also see Procedure , “How to Replace an Air Filter,”...

  • Page 17: Installation Documents

    AC environments. NOTE: Some applications and application sets do not support installation of T1000 AS hardware systems in AC environments. When installation in an AC environment is not supported, the links shown in this section will open documents that state “This application set does not support installation in AC environments.”...

  • Page 18: Applications Documents

    Documentation Packaging and Updates Applications Documents T1000 AS units support a variety of applications. For more information, refer to application documentation. NOTE: Application documentation may also contain information about additional hardware. Documentation Packaging and Updates Customer documentation is upgraded whenever significant changes are made that affect system operation or configuration are made.

  • Page 19: Customer Assistance

    Customer Assistance The Customer Care Center offers a point of contact through which customers can receive support for problems that may be encountered during the use of Tekelec’s products. The Customer Care Center is staffed with highly trained engineers to provide solutions to your technical questions and issues seven days a week, twenty-four hours a day.
  • Page 20 Customer Assistance 910-0095-001 Revision J November 2007...
  • Page 21 Safety and Pre-Installation Requirements Introduction.......................2-2 Safety Information ....................2-2 Regulatory Compliance and Certification ............2-4 Pre-Installation Site Requirements..............2-5 Generic Site Requirements................2-6 Grounding and Power Requirements .............2-8 910-0095-001 Revision J November 2007...

  • Page 22: Introduction

    • Site requirements that should exist before Tekelec products are installed Safety Information Safety icons and text are used throughout Tekelec manuals to warn the reader of the potential of personal injury, service interruption, and equipment damage. For information about what each of the icons mean, see “Documentation Admonishments”...
  • Page 23 Safety Information DANGER: Do not wear metal, chains, rings, watches, or jewelry or carry exposed metal, keys or tools in pockets when working on system equipment or other related electrostatic-sensitive components. Always wear a wrist strap or other electrostatic protection when handling printed circuit boards and other electrostatic-sensitive devices.

  • Page 24: Regulatory Compliance And Certification

    Forcing the card into a slot may damage the ejector handle or pin. Regulatory Compliance and Certification Tekelec products are tested to meet the following regulatory standards: • Network Equipment Building System (NEBS) level 3 as listed in Telcordia SR-3580.

  • Page 25: Pre-Installation Site Requirements

    SJ/T 11363-2006 standard. Pre-Installation Site Requirements Before installing any T1000 AS hardware system, ensure that the requirements described in both of the following sections have been met. • “Generic Site Requirements” on page 2-6 •...

  • Page 26: Generic Site Requirements

    • Maximum: 4000 meters above sea level at ambient temperature of 40° C (104° F) HVAC Requirements Tekelec products are designed to bring cool air in from the bottom front and exit heated air out the top rear of the installed equipment. The required HVAC (Heating, Ventilation, and Air Conditioning) capacity depends on the installed equipment.

  • Page 27: Table 2-1. Space Requirements

    Earthquake Resistance All Tekelec system configurations are designed to assure that the system remains operational during and after an earthquake, even when the system is located on the upper floors of a zone 4 central office.

  • Page 28: Grounding And Power Requirements

    WARNING: Always install an isolator pad between the frame and ground. Tekelec frames are shipped with isolator pads to completely isolate the frames from ground. If a non-Tekelec frame is used, an isolator pad must be provided. 910-0095-001 Revision J November 2007...
  • Page 29 T1000 AS unit uses only Ethernet connections. Ethernet connections are the only network connections intended for use with the AC powered T1000 AS unit. If the AC-powered T1000 AS unit uses serial RS232 connections, the grounding in a standard serial cable will provide the logic ground necessary for the data transmission.

  • Page 30: Figure 2-4.Door Grounding Strap Placement

    NOTE: If breakers are tripped by an overload, they must be switched completely OFF and then ON to reset. The following table contains detailed information on T1000 AS power requirements in a DC environment: DC_PowerReqmts.pdf, 2-10...
  • Page 31 Pre-Installation Site Requirements Power Requirements in an AC Environment An Alternating Current environment must supply two 20 Amp feeds from separate circuits. 910-0095-001 Revision J November 2007 2-11...
  • Page 32 Pre-Installation Site Requirements 2-12 910-0095-001 Revision J November 2007...
  • Page 33 T1000 AS Hardware System Overview T1000 AS Hardware System in a DC Environment........3-3 T1000 AS Hardware Features .................3-5 T1000 AS Rear I/O Panel ................3-8 T1000 AS Status Indicators ...............3-8 T1000 AS Chassis Installation and Replacement........3-9 Breaker Panels ....................3-11 Breaker Panel LEDs .................3-12 Breaker Panel Power................3-13...

  • Page 34: Introduction

    Ethernet communication equipment, already installed by Tekelec manufacturing in a heavy duty frame. — Some applications allow a single T1000 AS unit to be added to a heavy duty frame that has been previously installed and already contains one to four T1000 AS units.

  • Page 35: T1000 As Hardware System In A Dc Environment

    T1000 AS Hardware System in a DC Environment T1000 AS Hardware System in a DC Environment In a Direct Current (DC) environment, a T1000 AS hardware system consists of the following hardware components, which are assembled in a heavy-duty frame...

  • Page 36: Figure 3-1. T1000 As Hardware System In Dc Environment

    T1000 AS Hardware System in a DC Environment Figure 3-1. T1000 AS Hardware System in DC Environment TekServer Unit Frame DC Envioronment 2 Breaker panels Drip pan Site specific system hardware TekServer units (maximum configuration shown) 03_ts_frame_flat-front 910-0095-001 Revision J November 2007...

  • Page 37: T1000 As Hardware System In An Ac Environment

    (the frame can be either 19 inches or 23 inches wide): • One T1000 AS unit, which is loaded at the factory with platform software and application software. For an overview of the T1000 AS units, see “T1000 AS Hardware Features”...

  • Page 38: Figure 3-3. Tekelec 1000 Chassis

    P O W E _ i s _ t s Figure 3-4 shows an exploded view of the T1000 AS chassis. This view shows where the various hardware components, especially the Field Replaceable Units (FRUs), are located. 910-0095-001 Revision J November 2007...

  • Page 39: Figure 3-4. Exploded View Of T1000 As Chassis

    5. Peripheral Component Interconnect (PCI) cards 6. Entire T1000 AS chassis For more information about FRUs, see Chapter 7, “Field Replaceable Units.” For more information about the hardware components, see Appendix A, “T1000 AS Hardware Feature Information.” 910-0095-001 Revision J November 2007...

  • Page 40: T1000 As Rear I/O Panel

    VGA, serial port, E1 or T1 clock inputs, and two USB ports) • The power board I/O (logic ground connection) Power entry is at the rear of the Tekelec 1000 platform. There are two right angle power connectors (A and B feeds) on the power board that are accessible through the rear I/O panel.

  • Page 41: T1000 As Chassis Installation And Replacement

    “T1000 AS Diagnostics” on page A-6. T1000 AS Chassis Installation and Replacement The T1000 AS chassis is installed in the frame using slides that have inner and outer rails. The outer slide rail is attached to the frame and the inner slide rail is attached to the T1000 AS chassis (see Figure 5-1 on page 5-3).

  • Page 42: Cable Management Arms

    Cable Management Arms The T1000 AS is installed on slides for easy access. When the chassis is slid in or out, strain on the cables is relieved by one of the following cable management systems: •...

  • Page 43: Breaker Panels

    Figure 3-7. T1000 AS with Side Cable Management Arms • Rear Cable Management Arm The Rear Cable Management Arm attaches to the rear of the T1000 AS and unfolds as the T1000 AS is slid out. NOTE: Rear Cable Management Arm systems are no longer being shipped with new T1000 AS installations.

  • Page 44: Breaker Panel Leds

    Breaker Panels Figure 3-8. Front of Breaker Panel Breaker Panel 1 Mounting screws Mounting screws Front View Breaker positions A1-A7 Breaker positions B1-B7 BREAKER ALARM INPUT POWER ALARM RESET BREAKER Breaker Panel 2 Front View Breaker positions A1-A7 Breaker positions B1-B7 BREAKER ALARM INPUT...

  • Page 45: Breaker Panel Power

    Some T1000 AS hardware systems contain a console server, which provides access to the console ports of the T1000 AS units and allows Tekelec Customer Care Center to access remotely the T1000 AS units. A console server is used only during maintenance and failure conditions.

  • Page 46: Rectifier

    Rectifier Breaker Settings To turn on power from the rectifier to the T1000 AS unit, open the door at the right of the rectifier and turn all the breakers to ON. 3-14...
  • Page 47 How to Install a T1000 AS Frame Introduction.......................4-2 How to Unpack the T1000 AS Frame and Conduct Inventory....4-2 How to Install a T1000 AS Frame..............4-2 Recommended Tools..................4-3 How to Prepare the Floor for Heavy Duty Frames.......4-4 How to Anchor the HD Frame to the Floor ...........4-6 How to Anchor to Overhead Rack of HD Frame ........4-17...

  • Page 48: Introduction

    T1000 AS units and associated equipment. For information about installing a T1000 AS unit in an AC environment and about installing an additional T1000 AS unit into a heavy-duty frame that already contains from one to four T1000 AS units, see Chapter 5, “How to Install...

  • Page 49: Recommended Tools

    • Anchor the frame to the ceiling using an overhead rack. See page 4-17. Recommended Tools All Tekelec tools should be labeled “Property of TEKELEC” with either a press-on Field Tool Identification label (P/N 658-0941-01) or Field Tool Identification wrap (P/N 658-0941-02).

  • Page 50: How To Prepare The Floor For Heavy Duty Frames

    How to Install a T1000 AS Frame How to Prepare the Floor for Heavy Duty Frames Frame layout is site specific; Figure 4-1 on page 4-4 shows the most typical frame layout. The recommended minimum aisle spacing is 3 ft. (91.5 cm) front and rear.
  • Page 51 How to Install a T1000 AS Frame Create another chalk line that allows 6 inches between each frame for correct spacing. Align the template (isolator pad) again against the front chalk line and continue the process of aligning, marking, and moving the template (isolator pad) until the site specific number of frame spaces has been laid out.

  • Page 52: How To Anchor The Hd Frame To The Floor

    How to Install a T1000 AS Frame Next, perform one of the following procedures, depending on the anchoring method you choose: • Procedure 4-5, “Anchor the Frame to the Slab Beneath the Raised Floor,” on page 4-11 • Procedure 4-6, “Anchor Frame to Raised Floor with Support Channel,” on page 4-14 •...

  • Page 53: Figure 4-2. Anchor Assembly For Slab Floors

    How to Install a T1000 AS Frame Figure 4-2. Anchor Assembly for Slab Floors Anchor Anchor Assembly Assembly Exploded View See Note 5/8 inch rod Threaded rod Twist off nut 5/8 inch nut Torque nut (red plastic cover) Fiber Small steel...
  • Page 54 How to Install a T1000 AS Frame From each anchor remove all pieces above the metal sleeve. Retain the pieces for use in step 7. Lay the isolator pad on the floor with the holes in the isolator pad aligned over the anchor assemblies.

  • Page 55: Figure 4-3. Anchor Installation Of Hd Frame Into Slab Floor

    How to Install a T1000 AS Frame Figure 4-3. Anchor Installation of HD Frame into Slab Floor Bottom of Frame and isolator pad Anchor (4 places) Large steel washer Round fiber (insulator) washer Square metal washer Qty=3 Isolation pad Tighten the top nut of the anchor assembly with a socket wrench until the twist off nut above the plastic red cover breaks free.

  • Page 56: Figure 4-4. Anchor Assembly For Raised Floor Over Concrete

    How to Install a T1000 AS Frame How to Anchor on Raised Floors To anchor a frame on a raised floor, use the procedure in one of the following sections : • “How to Anchor to Concrete Floor Under a Raised Floor” on page 4-10 •...
  • Page 57 How to Install a T1000 AS Frame Procedure 4-5. Anchor the Frame to the Slab Beneath the Raised Floor Ensure that Procedure 4-3, “Create Cable and Anchor Holes for Raised Floors,” on page 4-5 has already been performed. Perform the following substeps for each hole associated with each frame to be installed on the raised floor: NOTE: The threaded rod must be absolutely perpendicular to the floor.

  • Page 58: Figure 4-5. Anchoring On Raised Floor Over Concrete Slab

    How to Install a T1000 AS Frame Insert each threaded rod/anchor assembly into its hole, with the cone nut at the bottom, and tighten with a 3/4 inch (19mm) wrench until the top nut of the torque nut breaks free (this nut is called the twist-off nut in Figure 4-4 on page 4-10).
  • Page 59 How to Install a T1000 AS Frame Over each threaded rod, install the following components in the order shown (see Figure 4-4 on page 4-10): Nylon shoulder washer (through the holes in the frame and isolator pad and into the raised floor)

  • Page 60: Figure 4-6. Anchor Assembly For Use With Support Channel

    How to Install a T1000 AS Frame Figure 4-6. Anchor Assembly for Use with Support Channel Anchor Raised Floor Note: When an anchor assembly is used on a raised floor, the anchor assembly must be disassembled and the correct length of threaded rod of the proper diameter must be used for the floor height requirement.

  • Page 61: Figure 4-7. Anchoring Frame To Raised Floor With Support Channel

    How to Install a T1000 AS Frame Figure 4-7. Anchoring Frame to Raised Floor with Support Channel Tighten nut on Small washer Frame Large washer side (4 PLACES) Finger tighten nuts above 5 threads of the raised floor before tightening...

  • Page 62: Figure 4-8. Anchor Assembly For Support Channel With Spring Nut

    How to Install a T1000 AS Frame Replace tiles if necessary. This procedure is complete. Next, go to Procedure 4-8 on page 4-18. How to Anchor on Raised Floor Using Support Channel with Spring Nut Use the following procedure to anchor the HD frame to the raised floor tiles using the a support channel with spring nut.

  • Page 63: How To Anchor To Overhead Rack Of Hd Frame

    How to Install a T1000 AS Frame Finger tighten the rods into the spring nut in the support channels (see Figure 4-9). Figure 4-9. Anchoring Frame Using Support Channel/Spring Nut Tighten nut on Small washer Frame Large washer side Threaded...

  • Page 64: Figure 4-10. Hd Frame With Overhead Rack

    How to Install a T1000 AS Frame Procedure 4-8. Attach Overhead Rack Support Using the Cable Rack Mounting kit with ladder hooks, threaded rods, and insulators, place the assembly directly above the frame for overhead support. Secure the top of the frame to the overhead racks using threaded rods with hardware as shown in Figure 4-10 on page 4-18.

  • Page 65: How To Cable A T1000 As Frame

    How to Cable a T1000 AS Frame WARNING: Verify that all breakers are set to the OFF (O) position. Verify that the cables already attached are connected correctly. (The T1000 AS hardware system frame is shipped with most of the cables already attached.) Complete any other required cable connections.
  • Page 66 How to Cable a T1000 AS Frame 4-20 910-0095-001 Revision J November 2007...
  • Page 67 Existing Frame Introduction.......................5-2 How to Unpack and Conduct Inventory ............5-2 How to Unpack a T1000 AS Unit and Conduct Inventory ....5-2 How to Unpack a Rectifier and Conduct Inventory ......5-4 How to Install an Individual T1000 AS Unit ..........5-5 How to Install the Rectifier ................5-16 How to Cable Components Added to Existing Frames......5-16...

  • Page 68: Introduction

    How to Unpack and Conduct Inventory To unpack and conduct inventory, see one of the following sections: • “How to Unpack a T1000 AS Unit and Conduct Inventory” on page 5-2 • “How to Unpack a Rectifier and Conduct Inventory” on page 5-4...

  • Page 69: Figure 5-1. Slide Assembly

    Inspect the T1000 AS chassis for indication of damage. If damage is noted, go to step 7. Remove the slide assemblies from the shipping container. The slide assemblies (see Figure 5-1) consist of three sections that will be attached to the T1000 AS chassis and frame. Figure 5-1. Slide Assembly...

  • Page 70: How To Unpack A Rectifier And Conduct Inventory

    Inspect the slide assemblies for indication of damage. If damage is noted, go to step 7. If any damage is noted or parts are missing, contact Tekelec Customer Care Center (see “Customer Assistance” on page 1-7). How to Unpack a Rectifier and Conduct Inventory When a rectifier is received, perform the following procedure: Procedure 5-2.

  • Page 71: How To Install An Individual T1000 As Unit

    OFF by measuring the voltage with a VOM on the cable that connects the T1000 AS chassis to its breakers. Both A and B power LEDs on the front panel of the T1000 AS chassis should be OFF.

  • Page 72: Figure 5-2. Slide Assembly Extended View

    How to Install an Individual T1000 AS Unit NOTE: Each T1000 AS chassis is 4 U (7 inches) in height and can be mounted immediately above or below existing components (zero clearance). Limits to positioning the T1000 AS in a frame are data cable lengths, lengths of power cables to the breakers, and location of interconnected components.

  • Page 73: Figure 5-3. Slide Assembly Inner Member Roller Side View

    How to Install an Individual T1000 AS Unit Figure 5-3. Slide Assembly Inner Member Roller Side View Slide Release Button Set the slide members aside for use later in this procedure. Attach the four frame adapter brackets to the frame (23-inch frame only) using two each of the #12-24 Phillips screws.

  • Page 74: Figure 5-4. Frame Adapter Bracket Expanded

    How to Install an Individual T1000 AS Unit Figure 5-4. Frame Adapter Bracket Expanded Jog Toward Rear of Frame Slide Assembly Side Frame Mounting Side Figure 5-5. Frame Adapter Brackets and Slide Assemblies Front View Front and Rear Frame Adapter...

  • Page 75: Figure 5-6. Slide Assembly Outer Member

    NOTE: The inner slide members are shown inserted into the middle slide member in this view for clarity only. In the following steps the inner slide members will be attached to the T1000 AS chassis and inserted into the middle slide members.

  • Page 76: Figure 5-7. Slide Assembly Detail Left Side From Rear

    See Figure 5-8 for a view of the inner member on the left side of the T1000 AS chassis. The inner slide member orientation on the right side of the chassis is similar.

  • Page 77: Figure 5-8. Slide Assembly Inner Member Mounting

    Chassis Retention Center Tab Bracket Lift the T1000 AS chassis with the attached inner slide members and carefully insert the inner slide member rollers into the middle slide members that were previously mounted on the frame. Simultaneously press the release buttons on the inner slide members once when the buttons encounter the middle slide members.

  • Page 78: Figure 5-9. Detail Of A Side Cable Management Arm

    • For Side Cable Management Systems, attach the cable management arms to the rear of the frame using the bolts included with the system. Be sure that the arms can slide in toward the T1000 AS. Figure 5-9. Detail of a Side Cable Management Arm...

  • Page 79: Figure 5-10. Side Cable Management Arm Installation

    How to Install an Individual T1000 AS Unit Figure 5-10. Side Cable Management Arm Installation Attach Left Side Attach Right Side Cable Management Cable Managemen Arm Here Arm Here • For Rear Cable Management Systems, attach the cable management arm to the chassis and slide assembly using the captive knurled fasteners.

  • Page 80: Figure 5-11. Rear Cable Management Arm Installation

    Route and connect the power and data cables through the cable management arm to the T1000 AS chassis. Check the labels on the cables and attach them to the appropriate connectors on the rear of the T1000 AS chassis (see Figure 5-12).

  • Page 81: Figure 5-12. T1000 As Rear Detail

    RJ45 A Keyboard From the front of the frame, press the round release buttons and slowly push the T1000 AS into the frame while observing the cables to avoid binding or stretching (see Figure 5-13). Figure 5-13. Frame Mounting Detail...

  • Page 82: How To Install The Rectifier

    To cable equipment added to an existing frame, follow the directions in one of the following sections: • “How to Cable a T1000 AS Unit Added to an Existing Heavy Duty Frame” on page 5-16 • “How to Cable a T1000 AS and Rectifier Installed in Customer-Provided Frame”...

  • Page 83: How To Cable A T1000 As And Rectifier Installed In Customer-Provided Frame

    Customer-Provided Frame WARNING: Verify that all breakers are set to the OFF (O) position. In an Alternating Current (AC) environment, after the T1000 AS unit and the rectifier have been installed, attach cables. To determine the cables used and how to connect them, refer to the...
  • Page 84 How to Cable Components Added to Existing Frames 5-18 910-0095-001 Revision J November 2007...
  • Page 85 How to Power Up a Heavy Duty Frame ..........6-14 How to Power Up Added T1000 AS Unit in DC Environment..6-14 How to Power Up a T1000 AS Unit in an AC Environment....6-14 How to Change Passwords ................6-15 910-0095-001 Revision J November 2007...

  • Page 86: Introduction

    — “How to Connect Chassis Ground in an AC Environment” on page 6-11 • Ground the logic for the T1000 AS unit; see “How to Ground the Logic Connector in a DC Environment” on page 6-8 • Verify the grounding; see one of the following: —...

  • Page 87: Recommended Tools

    • Lacing cord and nylon cable ties How to Ground in a DC Environment In a Direct Current (DC) environment, a T1000 AS hardware system operates as a digital isolated ground plane in a central ground environment and requires a single connection to the central ground window.
  • Page 88 How to Connect Frame Ground and Logic Ground Procedure 6-1. Prepare the Ground Cables Butt and strip the ends of the green ground cable (P/N 690-0108-07 for the frame ground and P/N 690-0131-01 for the logic ground). Slide a clear heat-shrink (P/N 804-0229-01 for the frame ground and P/N 804-0228-R01 for the logic ground) on the butted end of the cable below the stripped end.

  • Page 89: Figure 6-1. Frame Ground Cable Routes In Dc Environment

    Label all cables with “TO” and “FROM” location information. Example: FROM T1000 AS frame ground, TO isolated main ground. Ensure that a bolt through any nut must show at least two threads beyond the nut, but no more than four threads should be showing.

  • Page 90: Figure 6-2. Frame Ground Cable Attachment Locations In Dc Environment

    NOTE 3: The size of the cable is determined by the overall length of the cable run. Refer to the Site File Book. This procedure is complete. Next, go to Procedure 6-3, “Connect T1000 AS Chassis Ground: T1000 AS Chassis to Frame,” on page 6-7. 910-0095-001 Revision J November 2007...

  • Page 91: Figure 6-3. Chassis Ground Cable Attachment Location In Dc Environment

    How to Connect Frame Ground and Logic Ground How to Connect T1000 AS Chassis Ground from T1000 AS Chassis to Frame in DC Environment In a DC environment, use this procedure for each T1000 AS unit in the heavy duty frame. Procedure 6-3.
  • Page 92 Connect the other end of the cable to the side of the frame nearest the T1000 AS chassis (see Figure 6-2 on page 6-6). Be sure that the T1000 AS can slide in and out on its rails without binding this cable.

  • Page 93: Figure 6-4. Logic Ground Cable Routes

    How to Connect Frame Ground and Logic Ground Figure 6-4. Logic Ground Cable Routes Ground window Producers Neutral Absorbers Isolated A reading of 0.01 amps is acceptable P A N I a higher reading is not acceptable Clamp amp meter To Ground Window test area * = Brackets...

  • Page 94: Figure 6-5. Frame And Logic Ground Cable Attachment Locations

    Figure 6-5. (One logic ground connection per T1000 AS.) This procedure is complete. Next, go to Procedure 6-5, “Connect Logic Ground: T1000 AS Logic Ground Port to Logic Ground Terminal Strip,” on page 6-11. 6-10...

  • Page 95: How To Ground In An Ac Environment

    Connect Chassis Ground: T1000 AS Chassis to Ground on Rectifier Attach the chassis cable into the back of the T1000 AS chassis. This cable can be used as delivered with the server. Connect the other end of the cable to the back of the rectifier chassis.

  • Page 96: Figure 6-6. Ground Cable Attachment Locations For T1000 As In Ac Environment

    How to Connect Frame Ground and Logic Ground Figure 6-6. Ground Cable Attachment Locations for T1000 AS in AC Environment Chassis ground Rectifier System Rear View AC grounding cable PWR B PWR A LOGIC GND USB A SERIAL PCI 8 PCI 7 PCI 6 PCI 5 PCI 4 PCI 3 PCI 2 PCI 1...

  • Page 97: Post-Installation Checklist

    All items listed in the Equipment Specification have been installed. Shipping container is properly packed with ramp and frame dollies and shipped to Tekelec. This check applies only after a heavy duty frame has been installed. The site is clean.

  • Page 98: How To Power Up

    • “How to Power Up Added T1000 AS Unit in DC Environment” on page 6-14 • “How to Power Up a T1000 AS Unit in an AC Environment” on page 6-14 When the breakers that supply power to the T1000 AS unit are switched ON, the unit will execute a power up sequence which includes a Power On Self Test (POST).

  • Page 99: How To Change Passwords

    “System OK.” If there are alarms present, refer to the documentation that came with the rectifier for troubleshooting assistance before proceeding. Set the rectifier output breakers to “ON” to send power to the T1000 AS unit. This procedure is complete. How to Change Passwords For security purposes, Tekelec recommends that all default passwords be changed to your own passwords.
  • Page 100 How to Change Passwords 6-16 910-0095-001 Revision J November 2007...
  • Page 101 How to Slide T1000 AS Chassis Back into Frame........7-9 How to Remove T1000 AS Chassis from a Frame.......7-10 How to Return a T1000 AS Chassis to the Frame........7-14 How to Replace T1000 AS FRUs..............7-18 How to Replace an Air Filter..............7-18 How to Replace a Fan Assembly ............7-19...

  • Page 102: Introduction

    Tekelec 1000 Application Server hardware systems are designed for the high-availability environments required by telephony networks. They use redundant power supplies and many of the components within a single T1000 AS chassis are redundant. Even with the advanced reliability of the T1000 AS design, hardware failures may still occur.

  • Page 103: T1000 As Frus

    Entire unit Remove chassis from frame * When a T1000 AS chassis needs to be replaced, the hard drive assemblies and the PCI cards can be moved from the failed chassis to the replacement chassis. Moving the hard drive assemblies from the failed server to the replacement server allows data to be preserved.

  • Page 104: How To Replace A Console Server, Router, Or Ethernet Switch Or Hub

    How to Replace a Console Server, Router, or Ethernet Switch or Hub How to Replace a Console Server, Router, or Ethernet Switch or Hub Perform the following procedure to replace miscellaneous equipment (such as a console server, router, or an Ethernet switch or hub) in a heavy duty frame. Procedure 7-1.

  • Page 105: How To Replace A Rectifier Module

    In an Alternating Current (AC) environment, a rectifier is used to convert the AC power of the environment to Direct Current (DC) power needed by the T1000 AS unit. The rectifier contains two or more individual rectifier modules. The rectifier modules are hot-swappable (one can be replaced without turning off power to the entire rectifier).

  • Page 106: How To Replace A Rectifier

    In an Alternating Current (AC) environment, a rectifier is used to convert the AC power of the environment to Direct Current (DC) power needed by the T1000 AS unit. If the entire rectifier needs to be replaced, perform the following procedure.

  • Page 107: How To Access T1000 As Frus

    “How to Replace an Air Filter” on page 7-18). • By sliding the chassis partway out of the frame (see “How to Slide T1000 AS Chassis Out from Frame” on page 7-7). This method can be used to access one or more of the following: —...

  • Page 108: Figure 7-1. T1000 As Chassis Front View

    DANGER: If the T1000 AS chassis is pulled too far out after the release buttons are disengaged, the inner slide members (attached to the chassis) could come out of the middle slide members (attached to the frame).

  • Page 109: How To Slide T1000 As Chassis Back Into Frame

    Chassis Back into Frame,” on page 7-9. How to Slide T1000 AS Chassis Back into Frame Perform the procedure in this section to slide the T1000 AS chassis back into the frame if one of the following FRUs was accessed by sliding the T1000 AS chassis out of the frame: •...

  • Page 110: How To Remove T1000 As Chassis From A Frame

    How to Access T1000 AS FRUs How to Remove T1000 AS Chassis from a Frame It may be necessary to remove a T1000 AS chassis from its frame for either of the following reasons: • To move the chassis to a workbench where one or more of the following FRUs can be replaced (be sure that a replacement FRU is on hand): —...
  • Page 111 How to Access T1000 AS FRUs Turn OFF the circuit breakers that supply power to the T1000 AS chassis to be removed. To locate the circuit breakers supplying power to the T1000 AS chassis, refer to the system interconnect diagram for the system type and/or read the labels on the breakers.

  • Page 112: Figure 7-2. Rear Cable Management Arm

    PCI 8 PCI 7 PCI 6 PCI 5 PCI 4 PCI 3 PCI 2 PCI 1 03_ts_flat-rear RJ45 B Mouse Serial PCI 1 RS-232 PCI slots slot (2) USB RJ45 A Keyboard NOTE: For clarity, the T1000 AS chassis is shown without any PCI cards installed. 7-12 910-0095-001 Revision J November 2007...

  • Page 113: Figure 7-4. Chassis Retention Hardware

    From the front of the frame, using the handles on the front top cover of the chassis, pull the T1000 AS chassis forward until the release buttons on the inner arms of the slide assemblies pop into the holes on each side.

  • Page 114: How To Return A T1000 As Chassis To The Frame

    — Procedure 7-12, “Replace a PCI Card,” on page 7-37 • If the T1000 AS chassis is being replaced, but the hard drives and/or the PCI cards from the failed chassis are to be used in the replacement chassis, go to: —...
  • Page 115 OFF by measuring the voltage with a VOM on the cable that connects the T1000 AS chassis to its breakers. Both A and B power LEDs on the front panel of the T1000 AS chassis should be OFF.

  • Page 116: Figure 7-5. Right Slide Assembly Mounting And Retention Bracket

    How to Access T1000 AS FRUs Lift the T1000 AS chassis and carefully insert the inner slide members into the middle slide members in the frame. See Figure 7-5. Figure 7-5. Right Slide Assembly Mounting and Retention Bracket Rear frame...

  • Page 117: Figure 7-6. T1000 As Chassis Rear View

    Route and connect the power and data cables through the cable management system to the T1000 AS chassis. Check the labels on the cables and attach them to the appropriate connectors on the rear of the T1000 AS chassis. Consult the cable running list, labels on the cables, and PCI configuration labels on the right of the chassis as seen from the rear.

  • Page 118: How To Replace T1000 As Frus

    • Procedure 7-13, “Replace a T1000 AS Chassis FRU,” on page 7-43 How to Replace an Air Filter It is recommended that the air filter on the T1000 AS chassis be replaced at least once a month. Before beginning this procedure, ensure that a spare filter is on hand.

  • Page 119: How To Replace A Fan Assembly

    NOTE: Fan filters can be removed from the chassis without turning off the power. A finger-safe perforated panel separates the moving fans from the filters. The T1000 AS chassis does not have to be extended from the frame for this procedure.
  • Page 120 The T1000 AS chassis can operate with one fan assembly for brief periods. Perform ALL of this procedure without delay. If the replacement fan assembly is not available, DO NOT begin this procedure. Prepare the T1000 AS chassis for access to the FRU using one of the following procedures: WARNING: Always wear an ESD wrist strap grounded to the bench or frame when working on electronic components.

  • Page 121: Figure 7-8. T1000 As Front Top Cover

    How to Replace T1000 AS FRUs Figure 7-8. T1000 AS Front Top Cover Handles Captive Cover Screws (Do NOT Remove These Screws) Chassis Retention Brackets (Remove these Screws) Grasp the handles on the front top cover of the chassis and lift up until the constant torque hinges support the weight of the cover and the four attached disk drives located under the cover.

  • Page 122: Figure 7-9. Fan Assemblies And Connectors

    How to Replace T1000 AS FRUs Figure 7-9. Fan Assemblies and Connectors Fan Assembly Connectors Finger Holes Fan Assembly Retention Screws TekServer Front View 03_ts_fan-connector-location Loosen the captive fan assembly retention screws on both ends of the fan assembly. See Figure 7-9.

  • Page 123: How To Replace Hard Disk Drive Assemblies

    Use the procedure in this section for either of the following purposes: • To replace a failed hard disk drive • To remove both hard disk drive assemblies from a failed T1000 AS chassis and place them in a replacement T1000 AS chassis...
  • Page 124 Turn OFF the circuit breakers that supply power to the T1000 AS chassis containing the hard disk drive assembly to be removed. To locate the circuit breakers supplying power to the T1000 AS chassis, refer to the system interconnect diagram for the system type and/or read the labels on the breakers.
  • Page 125 OFF by measuring the voltage with a VOM on the cable that connects the T1000 AS chassis to its breakers. Both A and B power LEDs on the front panel of the T1000 AS chassis should be OFF.

  • Page 126: Figure 7-10. T1000 As Front Top Cover

    “C” drive is on the right. It is recommended that this entire procedure be performed to remove the “A” hard disk drive assembly from the failed T1000 AS chassis and replace it into the “A” position in the replacement chassis, and then the procedure be repeated to remove the “C”...

  • Page 127: Figure 7-11. Chassis Front View Top Cover Open

    How to Replace T1000 AS FRUs WARNING: When replacing both drives in a failed T1000 AS chassis always place the drives in the locations they were removed from. Failure to replace the drives in the correct locations will cause data corruption and render the unit inoperable.

  • Page 128: Figure 7-12. Front Cover With Drive Mounting Brackets

    NOTE: DO NOT remove the drive from the drive mounting bracket. The mounting bracket is part of the drive assembly. A replacement drive is shipped with the bracket. A replacement T1000 AS chassis is not shipped with drive brackets installed.
  • Page 129 How to Replace T1000 AS FRUs Inspect the four # 6-32 pan-head screws inserted in the cover standoffs for enough clearance (approximately 1/4 inch) to slide the disk mounting bracket over the large keyholes slots in the bracket. Add any missing screws or loosen screws if necessary.

  • Page 130: Figure 7-13. Hard Disk Drive Jumper Pins And Settings

    A and C positions on the base unit/hard disk label on the front of the left side of the replacement T1000 AS chassis (see Figure 7-14 and Figure 7-15). If the part numbers do not match, contact Tekelec Customer Care Center.

  • Page 131: Figure 7-14. T1000 As Chassis Label Locations

    Figure 7-15. Hard Disk Drive Label on T1000 AS Chassis 03_ts_chassis_config_label WARNING: When replacing both drives in a failed T1000 AS chassis always place the drives in the locations they were removed from. Failure to replace the drives in the correct locations will cause data corruption and render the unit inoperable.

  • Page 132: Figure 7-16. Hard Disk Drives

    • If this procedure is being performed to move hard disk drive assemblies from a failed T1000 AS chassis to the replacement T1000 AS chassis, repeat step 7 through step 17 to move the other drive.

  • Page 133: How To Replace Removable Media Disk Drives

    B-22. Depending on how the hard disk drive assembly was accessed in step 4, return the T1000 AS chassis to its original position using one of the following procedures: • Procedure 7-5, “Slide T1000 AS Chassis Back into Frame,” on page 7-9 •...
  • Page 134 OFF by measuring the voltage with a VOM on the cable that connects the T1000 AS chassis to its breakers. Both A and B power LEDs on the front panel of the T1000 AS chassis should be OFF.

  • Page 135: Figure 7-17. T1000 As Front Top Cover

    • Procedure 7-6, “Remove a T1000 AS Chassis from Frame,” on page 7-10 Using a Phillips screwdriver, loosen the captive spring-loaded screws on the T1000 AS chassis top cover until they are free. See Figure 7-10 for locations. Figure 7-17. T1000 AS Front Top Cover...

  • Page 136: Figure 7-18. Removable Media Disk Drive Adapter Assembly

    Power Mounting Adapter Connectors NOTE: T1000 AS removable media drives and adapter are considered one FRU. Remove and replace the entire adapter assembly including both removable media drives. Using the #1 Phillips screwdriver, loosen but do not remove the four 6-32 pan head screws that connect the slimline CDRW/DVD drive adapter assembly to the standoffs on the front lid.

  • Page 137: How To Replace Pci Cards

    Use the procedure in this section for either of the following purposes: • To replace a failed PCI card • To remove PCI cards from a failed T1000 AS chassis and place them in a replacement T1000 AS chassis Procedure 7-12. Replace a PCI Card Do one of the following: •...

  • Page 138: Figure 7-19. Pci Card Part Label

    03_ts_pci_config_label WARNING: This procedure CANNOT be performed while the T1000 AS chassis is powered on. Never power OFF a T1000 AS chassis until the application software and platform operating system (OS) are shut down. If possible, use the procedures in the application manual for a “soft shutdown.”...
  • Page 139 OFF by measuring the voltage with a VOM on the cable that connects the T1000 AS chassis to its breakers. Both A and B power LEDs on the front panel of the T1000 AS chassis should be OFF.

  • Page 140: Figure 7-21. Chassis Rear Cover Views

    How to Replace T1000 AS FRUs Figure 7-21. Chassis Rear Cover Views Cover In Place Cover Removed Guide Screws Captive Fastener PCI Card Type/Slot Assignment Lable Using a #1 Phillips screwdriver remove the retention screw located at the top of the PCI faceplate.

  • Page 141: Figure 7-22. Pci Cards And Slot Assignments

    How to Replace T1000 AS FRUs Figure 7-22. PCI Cards and Slot Assignments PCI Card Face Plate PCI Connectors Slot 8 Slot 1 i_ c a s _ p c 0 3 _ t Place the card in an approved ESD storage bag or container.
  • Page 142 T1000 AS chassis to the replacement T1000 AS chassis, repeat step 4 through step 15 for each PCI card to be moved. Replace the rear cover on the T1000 AS chassis. Slide the guide slots over and past the screws loosened in step 6 on page 7-39.

  • Page 143: How To Replace A T1000 As Chassis Fru

    Return Material Authorization (RMA) is obtained. Usually, when a T1000 AS chassis needs to be replaced, the PCI cards and hard disk drive assemblies are removed from the failed T1000 AS chassis and placed in the replacement chassis.

  • Page 144: Figure 7-23. Left Slide Member Mounting

    How to Replace T1000 AS FRUs WARNING: This procedure CANNOT be performed while the T1000 AS chassis is powered on. Never power OFF a T1000 AS chassis until the application software and platform operating system (OS) are shut down. If possible, use the procedures in the application manual for a “soft...
  • Page 145 T1000 AS chassis. See Figure 7-23. If the hard disk drives and/or PCI cards from the failed T1000 AS chassis need to be moved to the replacement chassis, perform either or both of the following procedures: •...
  • Page 146 How to Replace T1000 AS FRUs 7-46 910-0095-001 Revision J November 2007...
  • Page 147 T1000 AS Hardware Feature Information Introduction......................A-2 Hardware Components ..................A-2 Interfaces......................A-2 Electrical Features....................A-3 Mechanical Design ..................A-4 Component Access Front Lid ..............A-5 Mechanical Maintenance Features ............A-4 Fans, Fan Trays, and Air Filters ..............A-5 Tekelec 1000 Main Board................A-6 T1000 AS Diagnostics..................A-6 910-0095-001 Revision J November 2007...

  • Page 148: Introduction

    • Four devices for storage media (for example, hard disk drives and CD-RW/DVD ROMs) for internally supporting persistent storage In addition, the Tekelec 1000 platform has a variety of internal and external interfaces, as described in “Interfaces” on page A-2.

  • Page 149: Electrical Features

    (although it is not typical that all PCI slots contain Ethernet cards). Serial PCI cards that supply additional serial interfaces can be added to the T1000 AS platform. These serial interfaces are used to connect to other servers located in the same frame.

  • Page 150: Mechanical Design

    “Component Access Front Lid” on page A-5). The PCI cards are located at the rear of the T1000 AS chassis and plug into the main board. All other components, which are less likely to fail and are more difficult to replace, are located in the Tekelec 1000 main unit.

  • Page 151: Component Access Front Lid

    Mechanical Design Component Access Front Lid The Tekelec 1000 platform has a hinged lid at the front that is locked in place by captive screws during normal operation. This lid allows access to the fan trays, BIOS select switch, reset button, and two USB ports that are located under the lid.

  • Page 152: Tekelec 1000 Main Board

    1. Power-On Self Test (POST) diagnostics run once at start-up to determine whether all required devices are installed and functional. POST can also be run by Tekelec Customer Care Center to verify that the Tekelec 1000 platform is operational. 2. Online diagnostics actively monitor the health of a running Tekelec 1000 platform.
  • Page 153 Hardware Repair and Return Introduction...................... B-2 How to Obtain a Return Material Authorization ........B-2 How to Locate T1000 AS Part Numbers ............B-3 Air Filter Part Number Information............B-3 Fan Assembly Part Number Information..........B-3 Removable Media Disk Drive Assembly Part Number Information B-7 Hard Disk Drive Assembly Part Number Information .....

  • Page 154: Introduction

    Any system components being returned for repair or replacement must be processed through the Tekelec Return Material Authorization (RMA) procedures. A hardware repair is defined as an item returned to Tekelec due to a failure, with the returned item being repaired and returned to the customer or replaced with a functionally identical item.

  • Page 155: How To Locate T1000 As Part Numbers

    • CLEI (Common Language Equipment Identifier, an identifier used by some customers which indicates the customer, the manufacturer, and the part) In addition to part numbers on each FRU, the T1000 AS chassis has several labels that contain part number information for FRUs that are internal to the chassis.

  • Page 156: Figure B-1. Fan Assembly Part Label

    How to Locate T1000 AS Part Numbers Figure B-1. Fan Assembly Part Label SERIAL NUMBER PART NUMBER CLEI Finger holes Fan assembly Fan assembly part labels connectors Fan assembly retension screws Front View Procedure B-2. How to Locate RMA Numbers for Fan Assembly...

  • Page 157: Figure B-2. T1000 As Chassis Front View

    DANGER: If the T1000 AS chassis is pulled too far out after the release buttons are disengaged, the inner slide members (attached to the chassis) could come out of the middle slide members (attached to the frame).

  • Page 158: Figure B-3. T1000 As Front Top Cover

    NOTE: When the chassis stops moving, the front of the T1000 AS should be slightly recessed to allow clearance of the handles behind the frame door when closed.

  • Page 159: Removable Media Disk Drive Assembly Part Number Information

    How to Locate T1000 AS Part Numbers Adjust the chassis retention brackets on the front of the T1000 AS chassis to contact the frame adapter brackets when the chassis is positioned correctly in the frame. Secure the chassis with one # 12-24 screw in the chassis retention brackets on each side.

  • Page 160: Figure B-5. T1000 As Chassis Front View

    DANGER: If the T1000 AS chassis is pulled too far out after the release buttons are disengaged, the inner slide members (attached to the chassis) could come out of the middle slide members (attached to the frame).

  • Page 161: Figure B-6. T1000 As Front Top Cover

    How to Locate T1000 AS Part Numbers Using a Phillips screwdriver, loosen the captive spring-loaded screws on the T1000 AS chassis top cover until they are free. See Figure B-6 for locations. Figure B-6. T1000 AS Front Top Cover Handles...

  • Page 162: Hard Disk Drive Assembly Part Number Information

    Adjust the chassis retention brackets on the front of the T1000 AS chassis to contact the frame adapter brackets when the chassis is positioned correctly in the frame.

  • Page 163: Figure B-8. Base Unit/Hard Disk Label On T1000 As Chassis

    Determine whether the required Hard Disk area (A or C) of the base unit/hard disk label on the front of the left side of the T1000 AS chassis can be viewed from the side of the frame without sliding the chassis out from the frame.

  • Page 164: Figure B-9. T1000 As Chassis Front View

    DANGER: If the T1000 AS chassis is pulled too far out after the release buttons are disengaged, the inner slide members (attached to the chassis) could come out of the middle slide members (attached to the frame).

  • Page 165: Pci Card Part Number Information

    (see Procedure 7-12, “Replace a PCI Card,” on page 7-37). • The PCI slots label on the outside of the T1000 AS chassis. Figure B-10 shows where this label is located and Figure B-11 shows a closeup view of a blank label.

  • Page 166: Figure B-11. Pci Slots Label On T1000 As Chassis

    Determine whether the required PCI slot area of the PCI slots label on the rear of the left side of the T1000 AS chassis can be viewed from the side of the frame without sliding the chassis out from the frame. See Figure B-10 for the placement of the label on the chassis and Figure B-11 for the location of each PCI slot information on the label.

  • Page 167: Figure B-12. T1000 As Chassis Front View

    DANGER: If the T1000 AS chassis is pulled too far out after the release buttons are disengaged, the inner slide members (attached to the chassis) could come out of the middle slide members (attached to the frame).

  • Page 168: T1000 As Chassis Part Number Information

    • Memory information from a label on the right side of the T1000 AS chassis • PCI card information from a label on the left side of the T1000 AS chassis Use the following procedure to locate the necessary part information:...

  • Page 169: Figure B-13. Frame Identification Label

    Procedure B-6. How to Locate RMA Numbers for a T1000 AS Chassis Supply the frame number for the frame in which the failed T1000 AS chassis is located (this label is located at the top left of the frame; see Figure B-13).

  • Page 170: Figure B-14. T1000 As Chassis Label Locations

    Memory label Determine whether the base unit/hard disk label, PCI slots label, and memory label on the sides of the T1000 AS chassis (see Figure B-14) can be viewed from the sides of the frame without moving the chassis: • If all labels can be viewed, go to step 6 on page B-19.

  • Page 171: Figure B-15. T1000 As Chassis Front View

    DANGER: If the T1000 AS chassis is pulled too far out after the release buttons are disengaged, the inner slide members (attached to the chassis) could come out of the middle slide members (attached to the frame).

  • Page 172: Figure B-16. Base Unit/Hard Disk Label On T1000 As Chassis

    How to Locate T1000 AS Part Numbers Figure B-16. Base Unit/Hard Disk Label on T1000 AS Chassis 03_ts_chassis_config_label • Base chassis part number, serial number, and CLEI (in the middle of label) • Software applications (at the left side of label) •...

  • Page 173: Figure B-17. Memory Label On T1000 As Chassis

    • If the replacement chassis does not need to contain replacement PCI cards, Tekelec manufacturing will use the information to create a new PCI slots label and apply it to the replacement chassis Figure B-18. PCI Card Label on T1000 AS Chassis...

  • Page 174: How To Arrange Return Shipping

    Adjust the chassis retention brackets on the front of the T1000 AS chassis to contact the frame adapter brackets when the chassis is positioned correctly in the frame.

  • Page 175: General Instructions

    26604 West Agoura Road Calabasas, California 91302 Returning a Crate Use the following procedure to return a shipping crate and dollies to Tekelec. Procedure B-7. Preparing Crate and Dolly for Return to Tekelec Replace the retaining brace. Replace the shipping container front panel using the bolts saved previously...
  • Page 176 • If the equipment is not being immediately installed, ship the dollies back to Tekelec in the box supplied with the crate. After unpacking the equipment, return the crate to Tekelec and retain the box to return the dollies. After installing the equipment, return the dollies to Tekelec in the supplied box.

  • Page 177: Network Integration

    DRAFT ELAP or EPAP Network Integration Introduction......................C-2 Network Overview..................C-2 Customer-Supplied Information ..............C-4 IP Address Assignment ..................C-4 Netmask and Broadcast ..................C-6 Network Interface Functions .................C-6 Network Assumptions..................C-7 Network Interface Functions .................C-6 Network Assumptions..................C-7 Network Configuration ..................C-8 Firewall and Router Filtering Considerations..........C-8 Serial Communication ..................C-10 Modems ....................C-10 Printers......................

  • Page 178: Introduction

    MPS. Only the provisioning network connects to the customer’s network. The Ethernet interfaces are -10/100BaseT for Netra-based systems and Gigabit for T1000 AS or T1100 AS-based systems. All networks use TCP/IP and UDP/IP as the transport protocol. • The provisioning network uses the Ethernet interface that typically connects to an external wide area network (WAN).

  • Page 179: Figure C-1. Mps Network Connections, Netra

    /dev/term/a001 /dev/term/a001 Sync Network Sync Network Dialup PPP Dialup PPP EAGLE #1 EAGLE #2 Network Network Figure C-2. MPS Network Connections, T1000 AS, T1100 AS Provisioning Network eth0 eth0 eth1 eth1 eth2 eth2 Server A Server A eth3...

  • Page 180: Customer-Supplied Information

    • If the ELAP or EPAP is configured as ELAP B or EPAP B, the fourth octet has a value of 200. TEKELEC recommends that the addresses range between 192.168.1.0 and 192.168.255.0. The netmask of these networks must be 255.255.255.0. Table C-1 depicts the IP address allocation for the DSM Network.

  • Page 181: Table C-2. Ip Address For The Sync Network

    IP Address Assignment Preliminary The same network address range selected for the MPS interfaces must be used when configuring the DSM cards within the EAGLE 5 ISS. Table C-2 depicts the IP address allocation for the Sync Network. Table C-2. IP Address for the Sync Network IP Range Function...

  • Page 182: Netmask And Broadcast

    Netmask and Broadcast — Draft —Preliminary Table C-3. EAGLE 5 ISS IP Addresses (Continued) IP Range Function 192.168.122.3 DSM #3 Main DSM Network IP Address 192.168.122.100 MPS Server A Main DSM Network IP Address 192.168.122.200 MPS Server B Main DSM Network IP Address 192.168.123.1 DSM #1 Backup DSM Network IP Address 192.168.123.2...

  • Page 183: Network Assumptions

    Network Assumptions Preliminary Table C-4. Interface Functions Required for MPS (Continued) Speed Netra Assigned to Assigned to Interface Function Protocol Tekserver (Netra/Tekserver) (Netra/Tekserver) Dial-up PPP server TCP/IP PPP modem MPS Server A Client PPP MPS Server A Client PPP on Sync Network serial port serial port Dial-up PPP server...

  • Page 184: Network Configuration

    Network Configuration — Draft —Preliminary Network Configuration DSM and Sync Network addresses are configured to default values at EPAP or ELAP initialization and should not need to be changed. If they need to be changed for any reason, refer to sections “Network Connection” and “Configuration Menu”...
  • Page 185 MPS in recovery ELAP (eth0) situations TCP (ssh) - ssh connections use TCP EPAP and ELAP telnet - needed by customer or Tekelec EPAP and customer service ELAP NTP - needed for time-sync EPAP and ELAP...

  • Page 186: Serial Communication

    Serial Communication — Draft —Preliminary Serial Communication Each MPS server has two onboard serial ports. Serial port A is the Console port and serial port B is connected by a null-modem cable to serial port A on the mate MPS server. The lower ELAP or EPAP server is configured with an additional 8 serial ports in a multiport PCI serial port card.

  • Page 187: Printers

    Serial Communication Preliminary If the remote dial-in serial port is not functional at one EAGLE 5 ISS site, dialing into the remote EAGLE 5 ISS site and connecting back to the functional MPS at the failed EAGLE 5 ISS site will allow remote recovery. Modem Configuration To simplify configuring the modem to the setting described in the previous section ““Dial-in Capability,”...

  • Page 188: Tip Utility (Eagle Only

    Platform Security — Draft —Preliminary Tip Utility (EAGLE Only) On MPS Server B, the UNIX tip utility is also used to connect an MPS Server to the EAGLE 5 ISS attached to serial port a002. A tip utility can be opened using the Connect to EAGLE MMI Port menu item in the debug menu of the ELAP or EPAP user interface.
  • Page 189 Glossary BIOS Basic Input Output System. Compact Disk. CD-RW Compact Disk-Read/Write. CLEI Common Language Equipment Identifier, a code used by some telephony companies to identify manufacturer, part number, and customer. Central Processing Unit, the computing part of a computer. European Digital Signal Level-1 (2.048 Mbits/sec). Error Correction Coded.
  • Page 190 The North American telecommunications standard defining a circuit that multiplexes and switches 24 channels and operates at speeds of 1.544 Mbps. Underwriters Laboratories. Universal Serial Bus, a hardware interface for low-speed peripherals such as the keyboard, mouse, joystick, scanner, printer and telephony devices. It also supports MPEG-1 and MPEG-2 digital video.
  • Page 191 — Draft — Index configuration, Dialup PPP network serial port C-10 C-10 8-Port Connector configuring the modem C-11 Connect to Eagle MMI Port menu item C-12 connections addresses, network IP DSM network administrator requirements, customer EPAP or ELAP Sync network (provisioning) network provisioning (customer) network air filter...
  • Page 192 HVAC requirements raised floor 4-10 anchoring frame using support chan- nel and spring nut 4-16 anchoring with support channel inspection, post-installation 6-13 installing slab heavy duty frame anchor assembly Tekelec 1000 chassis in a frame Index-2 910-0095-001 Revision J, November 2007...
  • Page 193 Index — Draft — interface Multi-Purpose Server customer (provisioning) network firewall protocol filtering functions, network network inventory connections, ELAP and EPAP additional server customer (provisioning) C-2, C-4, C-8 frame C-5, C-10 Dialup PPP IP addresses DSM main and backup default for EPAP or ELAP Sync network EPAP or ELAP Sync interface functions Dialup PPP network...
  • Page 194 Index — Draft — preparing RMA, obtaining floor for heavy duty frame rotary impact drill C-11 Printers router filtering protocol filtering, firewwall Protocol, Point-to-Point (PPP) safety provisioning (customer) network safety glasses <Italics>see also customer (provisioning) script to configure modems C-11 network serial ports connection...
  • Page 195 Index — Draft — vacuum cleaner VT100 Ports C-12 VT100 ports for Eagle VT520 terminal C-12 VT520 Eagle terminal C-12 910-0095-001 Revision J, November 2007 Index-5...
  • Page 196 Index — Draft — Index-6 910-0095-001 Revision J, November 2007...

This manual is also suitable for:

1000

Table of Contents
