COOLING SYSTEM

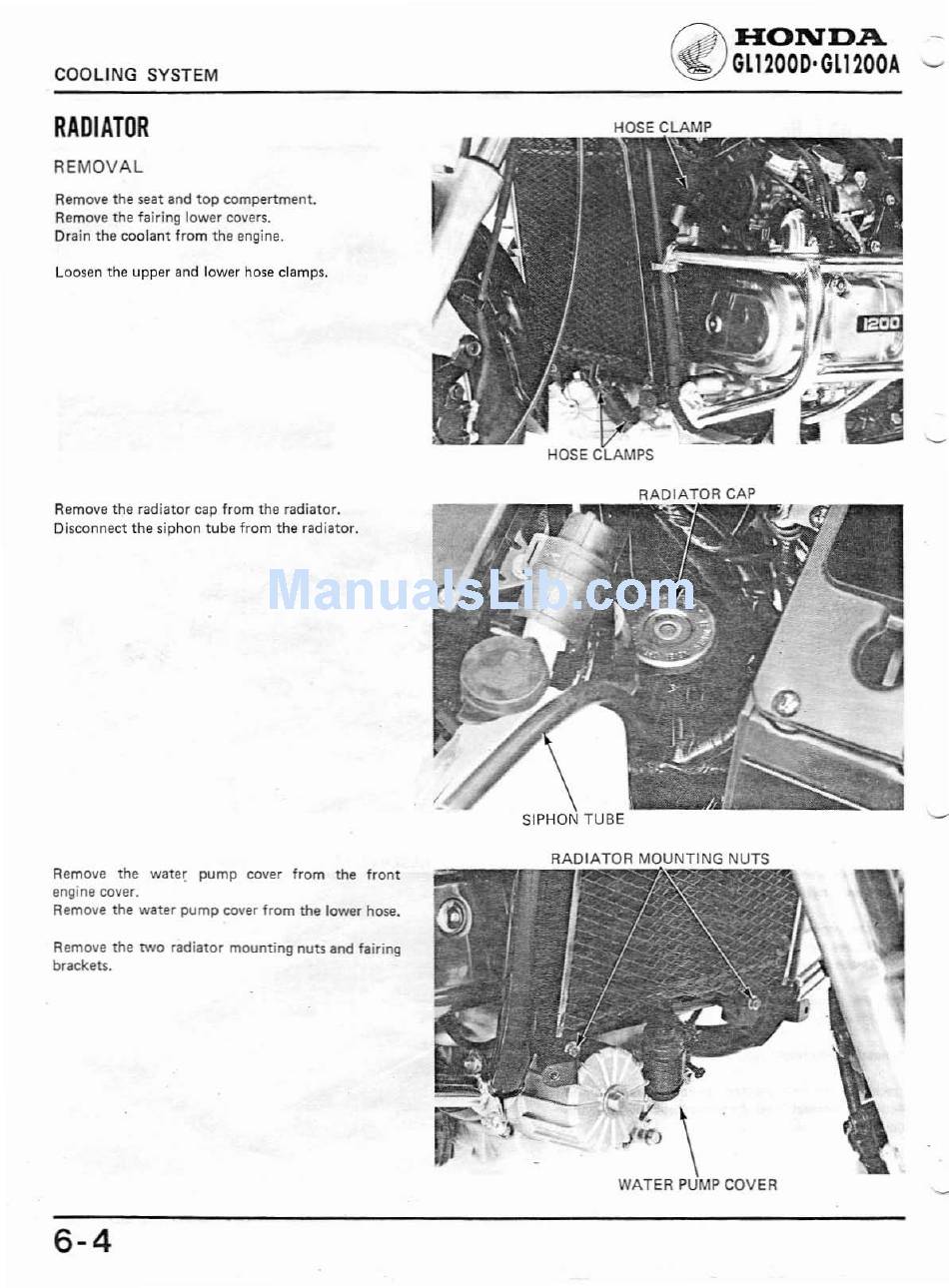

RADIATOR
REMOVAL
Remove the seat and top compertment.
Remove the fairing lower covers.
Drain the coolant from the engine.
Loosen the upper and lower hose clamps.
Remove the radiator cap from the radiator.
Disconnect the siphon tube from the radiator.
Remove the
wate~
pump cover from the front
engine cover.
Remove the water pump colier from the lower hose.
Remove the two radiator mounting nuts and fairing
brackets.
6-4
Cif\HONDA
~GL1200D'GL1200A ~
HOSE CLAMP
HOSE CLAMPS
RADIATOR CAP
SIPHON TUBE
RADIATOR MOUNTING NUTS
\
WATER PUMP COVER
