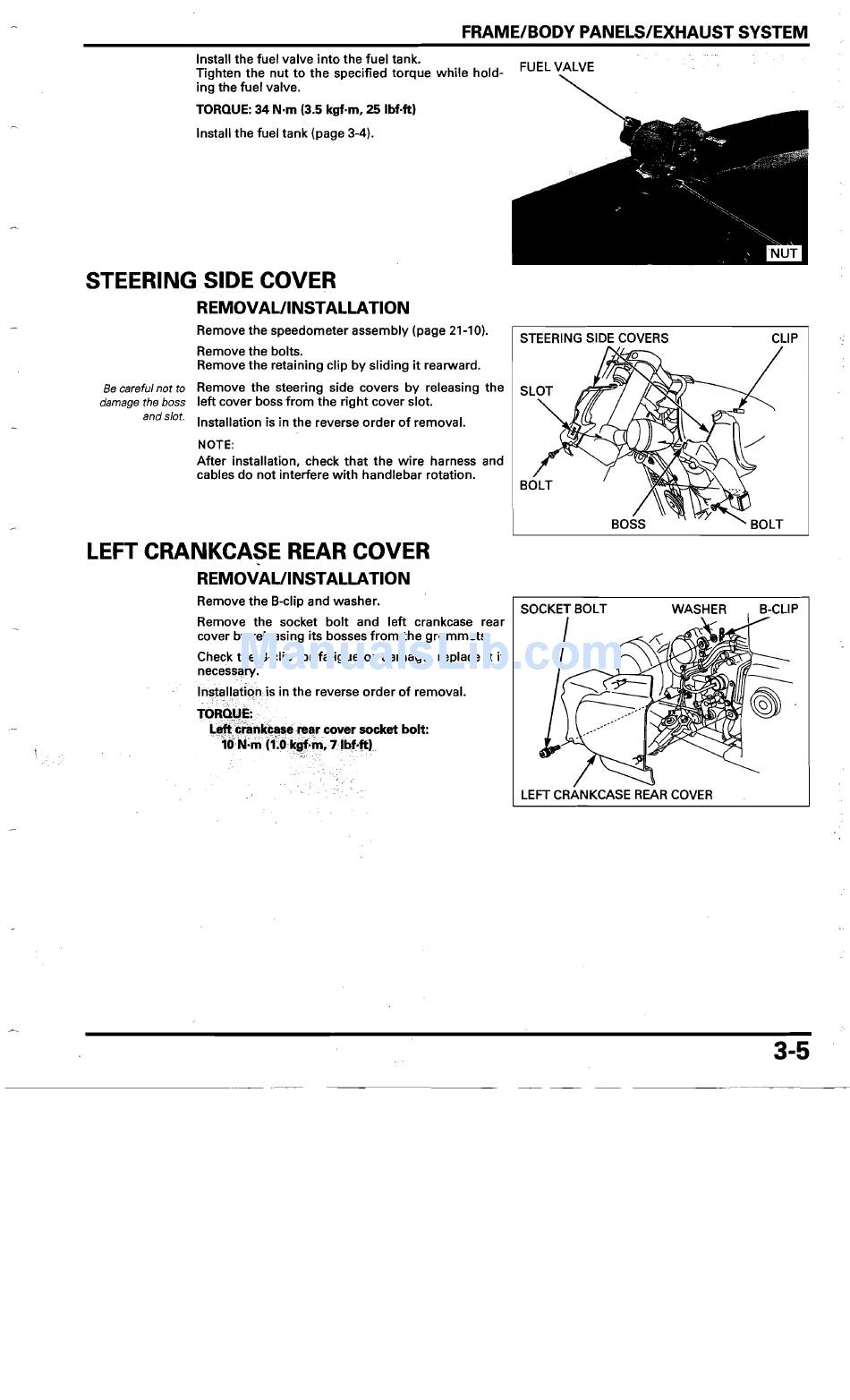

FRAME/BODY PANELS/EXHAUST SYSTEM
Install the fuel valve into the fuel tank.
Tighten the nut to the specified torque while hold ­
ing the fuel valve.
TORQUE: 34 N·m (3.5 kgf·m, 25 Ibf·tt)
Install the fuel tank (page 3-4).
FUEL VALVE
STEERING SIDE COVER
REMOVAL/INSTALLATION
Remove the speedometer assembly (page 21-10).
STEERING SIDE COVERS CLIP
Remove the bolts.
Remove the retaining clip by sliding it rearward.
Be careful not to
Remove the steering side covers by releasing the
damage the boss
left cover boss from the right cover slot.
and slot.
Installation is in the reverse order of removal.
NOTE:
After installation, check that the wire harness and
cables do not interfere with handlebar rotation.
f
~
LEFT CRANKCASE REAR COVER
REMOVALIINSTALLATION
Remove the B-clip and washer.
Remove the socket bolt and left crankcase rear
cover by releasing its bosses from the grommets.
Check the B-clip for fatigue or damage, replace it if
necessCiry·
InlrtallatiQnis in the reverse order of removal.
TORQU.E:·
L.~.~fil'1J(~fl!~e~,!rcover
socket bolt:
10N·m (1;() kQ"·m, 7 IbHI:)
SOCKET BOLT WASHER
I B-CLIP
LEFT CRANKCASE REAR COVER
3-5
