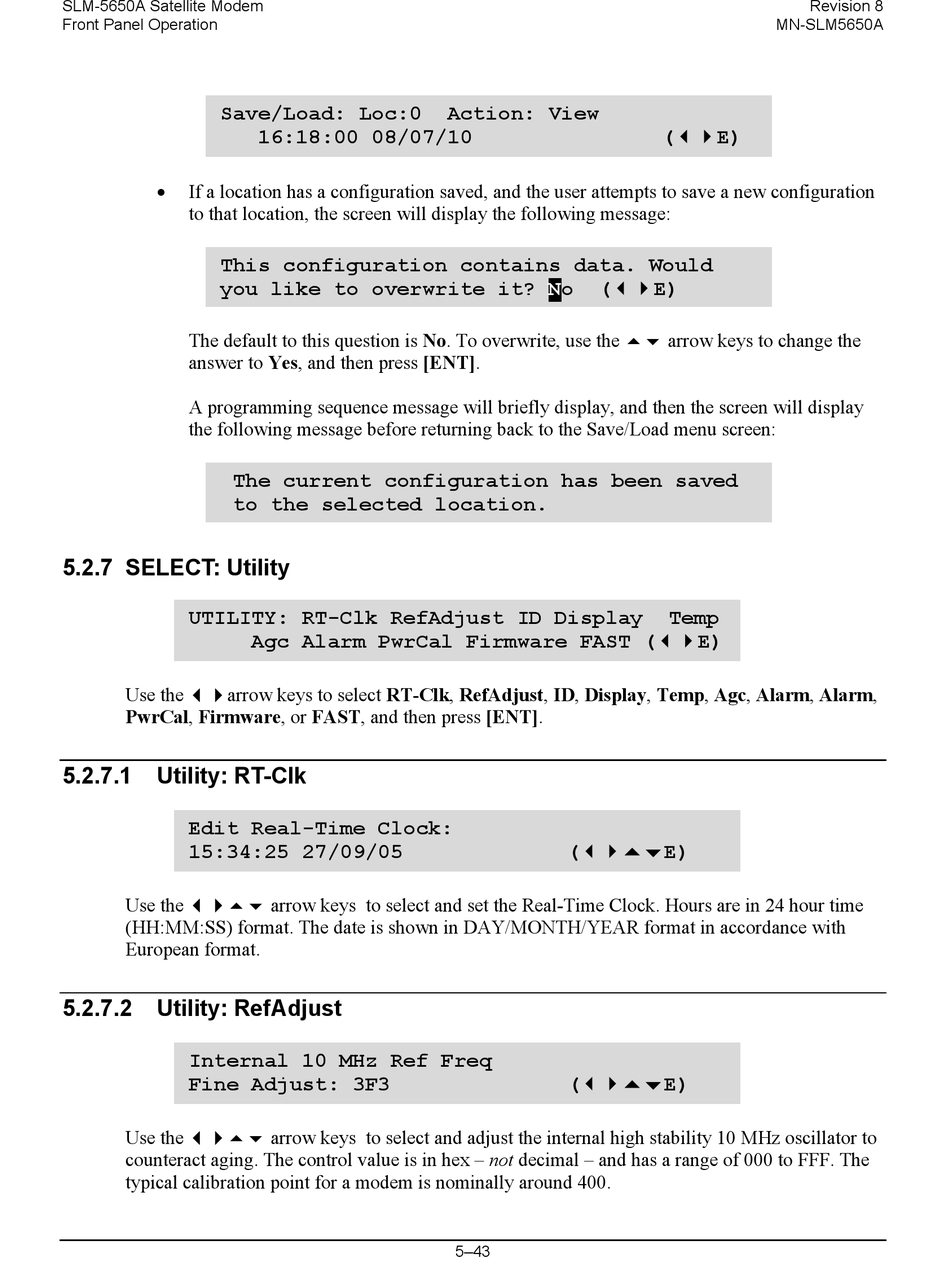

Save/Load: Loc:0
• If a location has a configuration saved, and the user attempts to save a new configuration
to that location, the screen will display the following message:
This configuration contains data. Would
you like to overwrite it? No
The default to this question is No. To overwrite, use the  arrow keys to change the
answer to Yes, and then press [ENT].
A programming sequence message will briefly display, and then the screen will display
the following message before returning back to the Save/Load menu screen:
The current configuration has been saved
to the selected location.

5.2.7 SELECT: Utility

UTILITY: RT-Clk RefAdjust ID Display
Use the arrow keys to select RT-Clk, RefAdjust, ID, Display, Temp, Agc, Alarm, Alarm,
PwrCal, Firmware, or FAST, and then press [ENT].
5.2.7.1 Utility: RT-Clk
Edit Real-Time Clock:
15:34:25 27/09/05
Use the  arrow keys to select and set the Real-Time Clock. Hours are in 24 hour time
(HH:MM:SS) format. The date is shown in DAY/MONTH/YEAR format in accordance with
European format.
5.2.7.2 Utility: RefAdjust
Internal 10 MHz Ref Freq
Fine Adjust: 3F3
Use the  arrow keys to select and adjust the internal high stability 10 MHz oscillator to
counteract aging. The control value is in hex – not decimal – and has a range of 000 to FFF. The
typical calibration point for a modem is nominally around 400.
16:18:00 08/07/10
Agc Alarm PwrCal Firmware FAST (E)
Action: View
(E)
(E)
(E)
5–43
Revision 8
MN-SLM5650A
