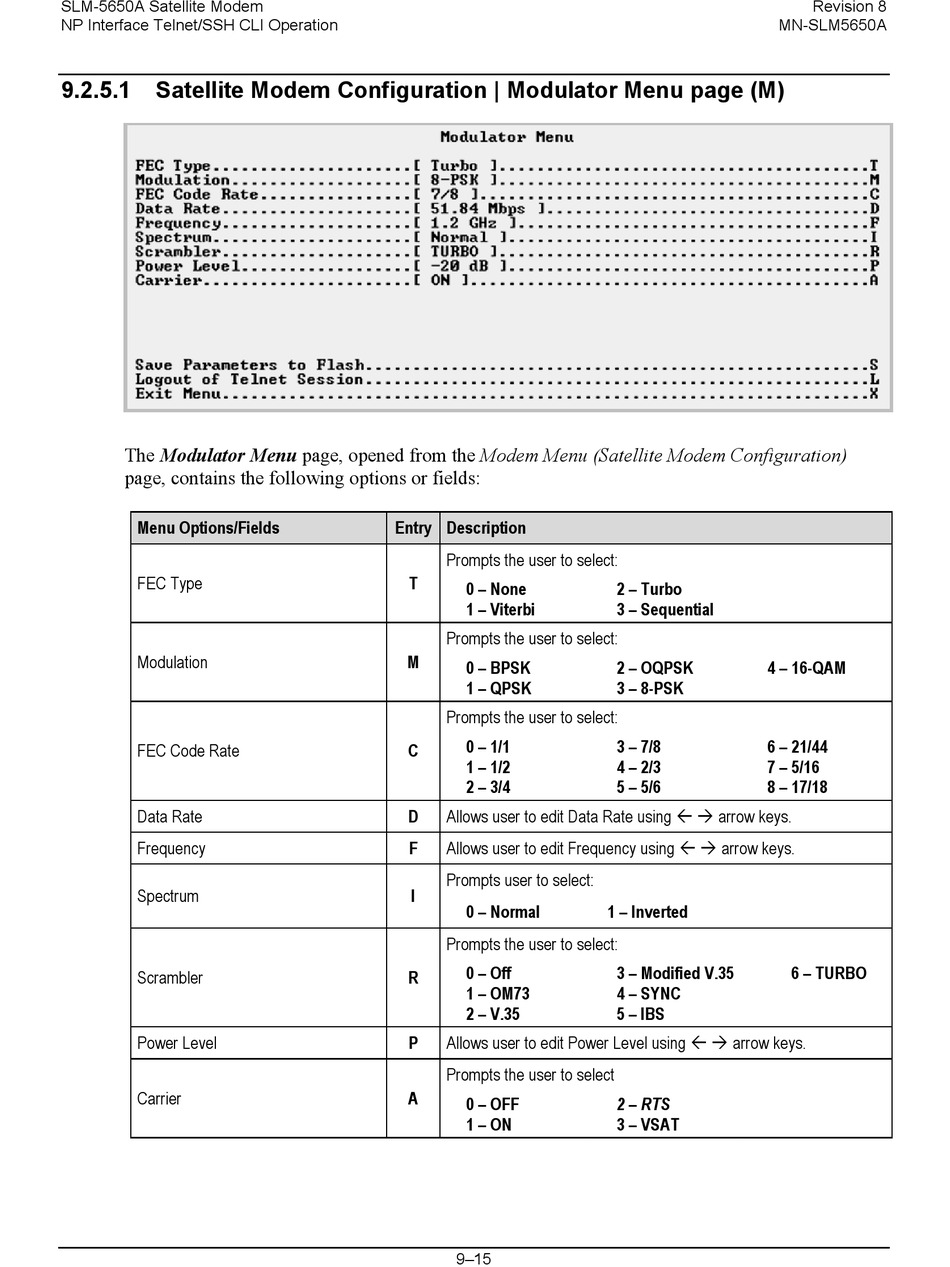

9.2.5.1 Satellite Modem Configuration | Modulator Menu page (M)
The Modulator Menu page, opened from the Modem Menu (Satellite Modem Configuration)
page, contains the following options or fields:
Menu Options/Fields
FEC Type
Modulation
FEC Code Rate
Data Rate
Frequency
Spectrum
Scrambler
Power Level
Carrier
Entry Description
Prompts the user to select:
T
0 – None
1 – Viterbi
Prompts the user to select:
M
0 – BPSK
1 – QPSK
Prompts the user to select:
0 – 1/1
C
1 – 1/2
2 – 3/4
D Allows user to edit Data Rate using   arrow keys.
F Allows user to edit Frequency using   arrow keys.
Prompts user to select:
I
0 – Normal
Prompts the user to select:
0 – Off
R
1 – OM73
2 – V.35
P
Allows user to edit Power Level using   arrow keys.
Prompts the user to select
A
0 – OFF
1 – ON
9–15
MN-SLM5650A
2 – Turbo
3 – Sequential
2 – OQPSK 4 – 16-QAM
3 – 8-PSK
3 – 7/8 6 – 21/44
4 – 2/3 7 – 5/16
5 – 5/6 8 – 17/18
1 – Inverted
3 – Modified V.35
4 – SYNC
5 – IBS
2 – RTS
3 – VSAT
Revision 8
6 – TURBO
