SLM-5650A Satellite Modem
Front Panel Operation

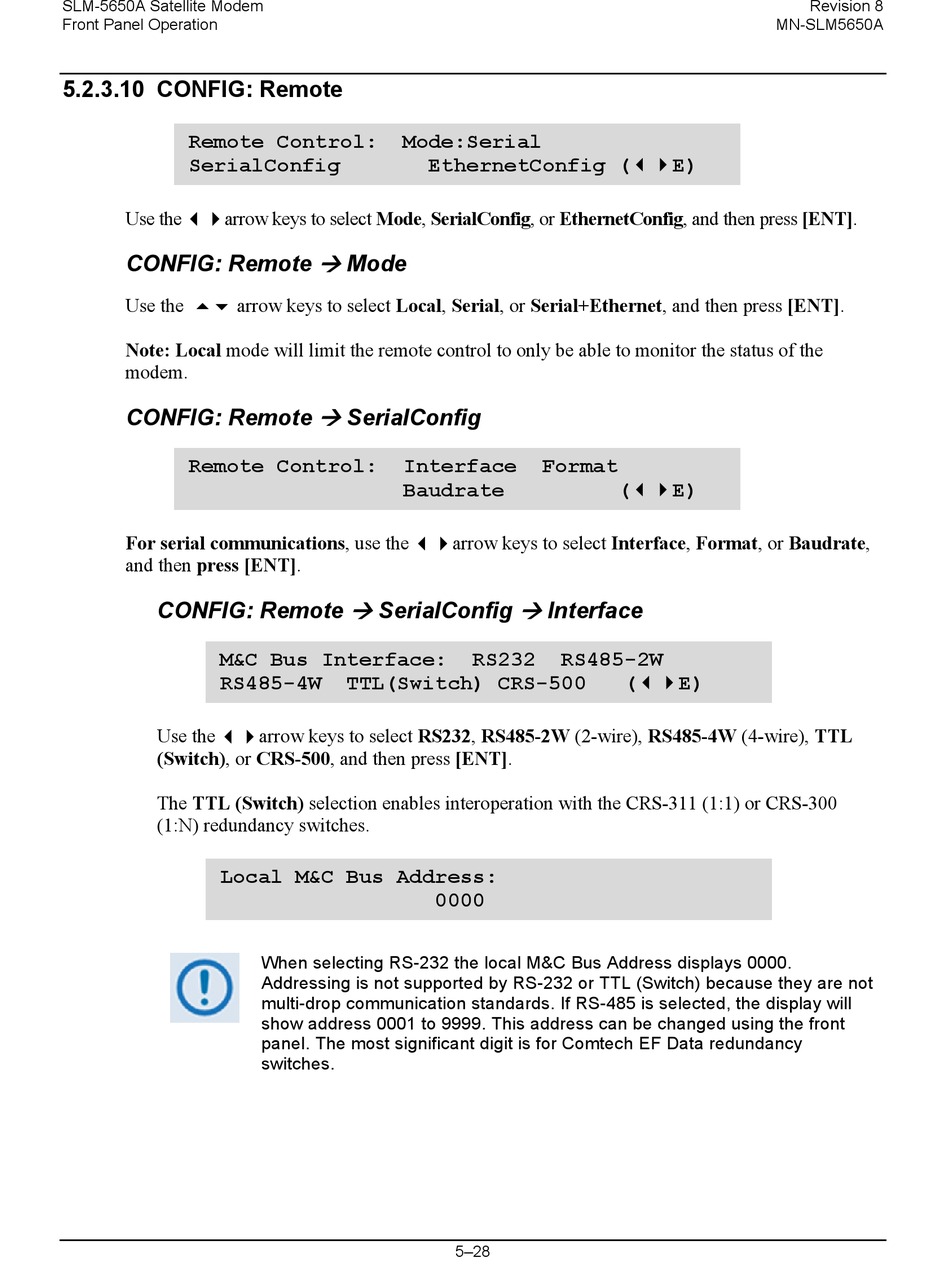

5.2.3.10 CONFIG: Remote
Remote Control:
SerialConfig
Use the arrow keys to select Mode, SerialConfig, or EthernetConfig, and then press [ENT].
CONFIG: Remote
Use the  arrow keys to select Local, Serial, or Serial+Ethernet, and then press [ENT].
Note: Local mode will limit the remote control to only be able to monitor the status of the
modem.
CONFIG: Remote
Remote Control:
For serial communications, use the arrow keys to select Interface, Format, or Baudrate,
and then press [ENT].
CONFIG: Remote
M&C Bus Interface:
RS485-4W
Use the arrow keys to select RS232, RS485-2W (2-wire), RS485-4W (4-wire), TTL
(Switch), or CRS-500, and then press [ENT].
The TTL (Switch) selection enables interoperation with the CRS-311 (1:1) or CRS-300
(1:N) redundancy switches.
Local M&C Bus Address:
Mode:Serial
EthernetConfig (E)
Mode

SerialConfig

Interface
Baudrate
SerialConfig

TTL(Switch) CRS-500
0000
When selecting RS-232 the local M&C Bus Address displays 0000.
Addressing is not supported by RS-232 or TTL (Switch) because they are not
multi-drop communication standards. If RS-485 is selected, the display will
show address 0001 to 9999. This address can be changed using the front
panel. The most significant digit is for Comtech EF Data redundancy
switches.
Format
(E)
Interface

RS232 RS485-2W
(E)
