SLM-5650A Satellite Modem

Low Voltage Differential (LVDS) Interface

Figure 14-2 shows the functional block diagram for this interface. It provides a single Type 'D'

25-pin female (DB-25F) connector wired as described in Table 14-1. (Refer back to Figure 14-1

for the LVDS Interface Module as viewed from the rear panel.)

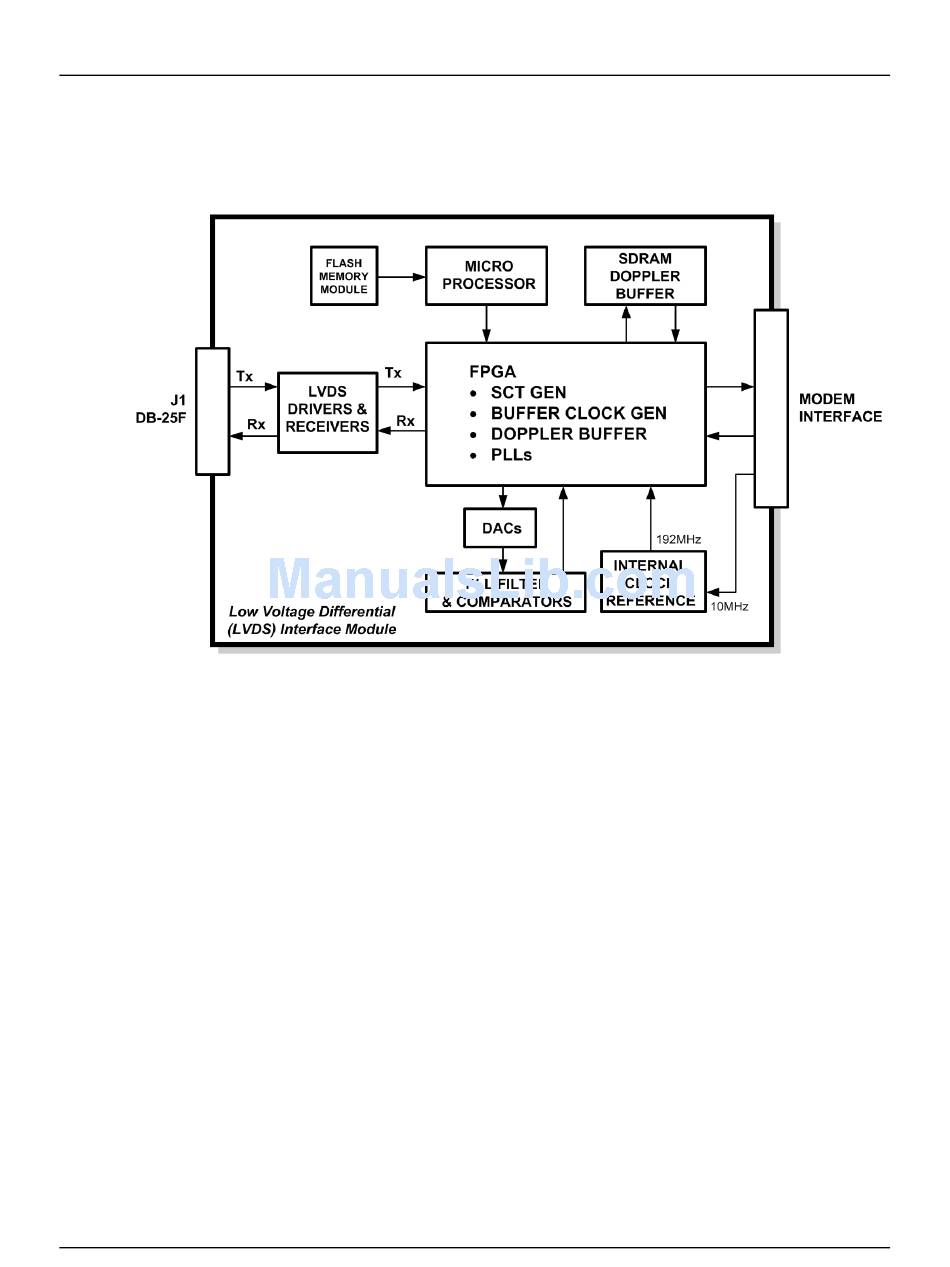

Figure 14-2. LVDS Interface Functional Block Diagram
