SLM-5650A Satellite Modem
Appendix B

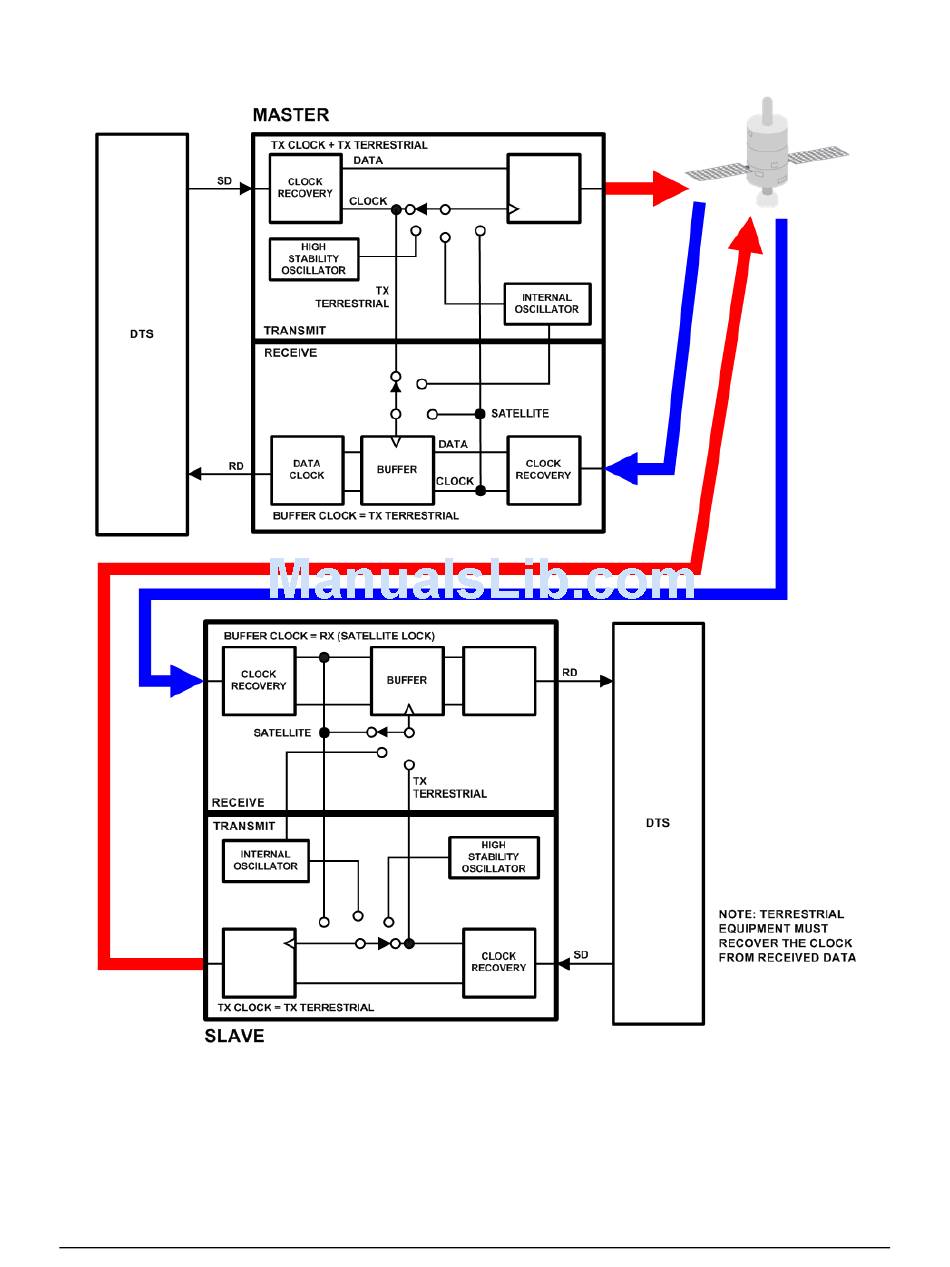

Figure B-2. IDR/IBS G.703 Master/Slave Clocking Diagram

The disadvantage of the master/slave application is that the signal received at the slave station is
subject to Doppler shift. The length of the buffer at the master end will need to be twice the
length that is normally required, compensating for the Doppler shift on the outward and return
paths
B–14
Revision 8
