Figure 2-3. Optional Rear Support Bracket Installation - Comtech EF Data SLM-5650A Installation And Operation Manual

SLM-5650A Satellite Modem
Installation
Item
1
2
3
4
5
6
Detail Description
1 Back of modem
2 Rack Enclosure Rear Rail (typical)
Kit / Quantity
KT/6228-2 KT/6228-3
2 2
4 4
2 2
2 2
4 4
2 –
– 2

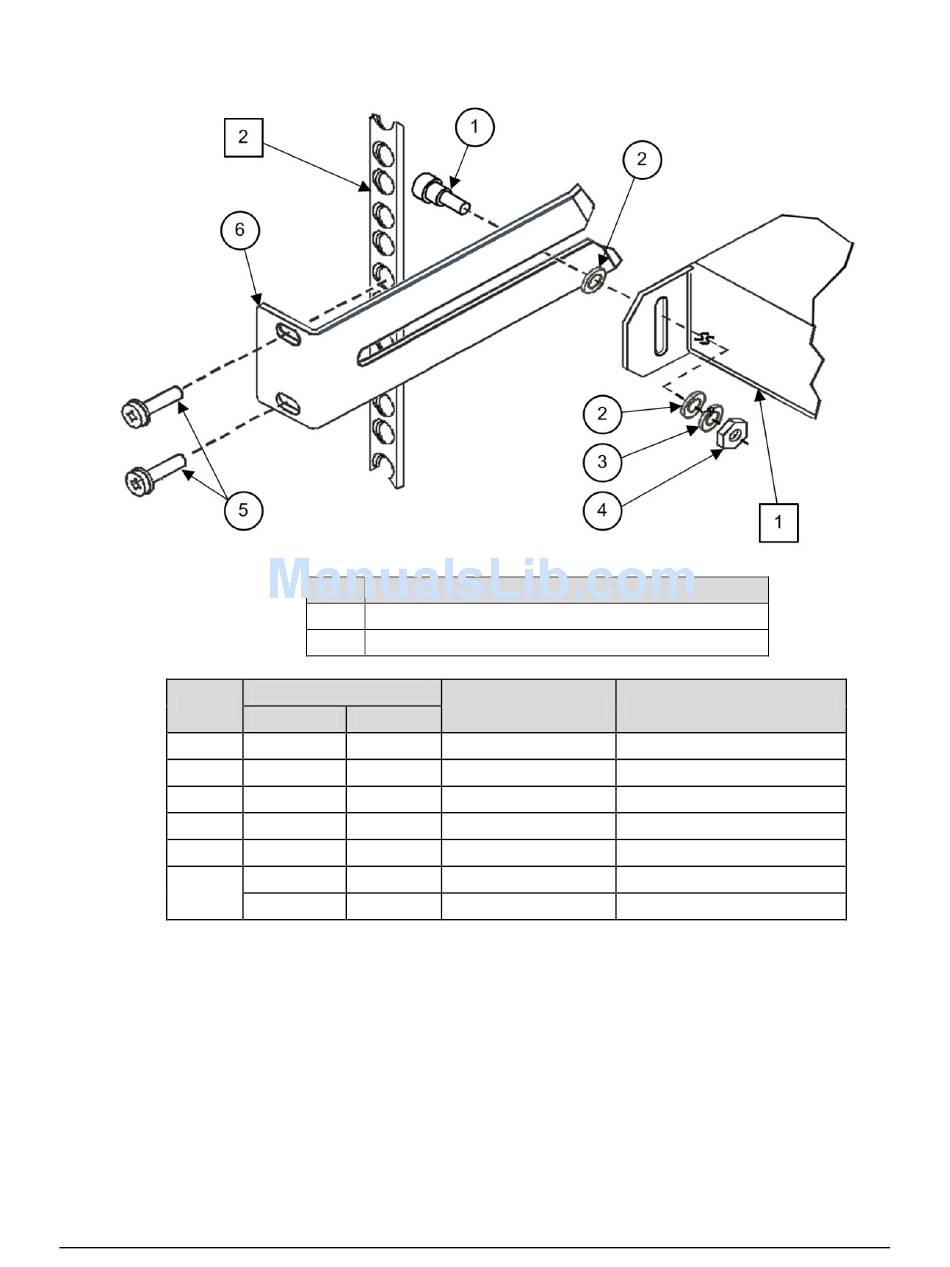

Figure 2-3. Optional Rear Support Bracket Installation

Part Number Description
HW/10-32SHLDR Shoulder Screw, #10
HW/10-32FLT Flat Washer, #10
HW/10-32SPLIT Lock Washer, #10
HW/10-32HEXNUT Hex Nut, #10
HW/10-32x1/2RK Bolt, #10, Rear Support Bracket
FP/6138-2 Bracket, Rear Support – 4"
FP/6138-3 Bracket, Rear Support – 10"
