Front Panel Operation
CDM-760 Advanced High-Speed Trunking Modem

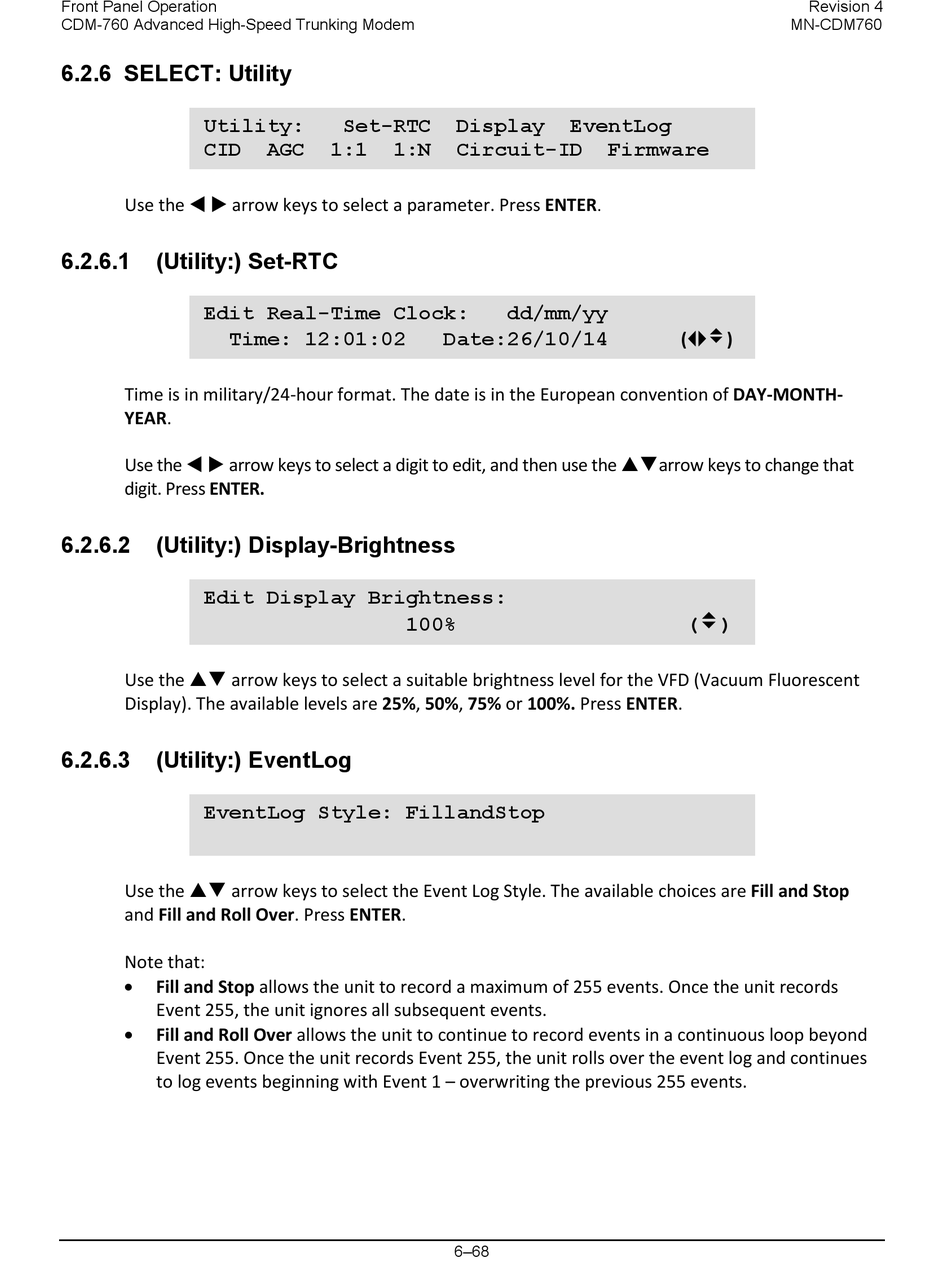

6.2.6 SELECT: Utility

Utility:
CID
Use the   arrow keys to select a parameter. Press ENTER
6.2.6.1

(Utility:) Set-RTC

Edit Real-Time Clock:
Time: 12:01:02
Time is in military/24-hour format. The date is in the European convention of DAY-MONTH-
YEAR.
Use the   arrow keys to select a digit to edit, and then use the arrow keys to change that
digit. Press ENTER.
6.2.6.2

(Utility:) Display-Brightness

Edit Display Brightness:
Use the  arrow keys to select a suitable brightness level for the VFD (Vacuum Fluorescent
Display). The available levels are 25%, 50%, 75% or 100%. Press ENTER.
6.2.6.3

(Utility:) EventLog

EventLog Style: FillandStop
Use the  arrow keys to select the Event Log Style. The available choices are Fill and Stop
and Fill and Roll Over. Press ENTER.
Note that:
•
Fill and Stop allows the unit to record a maximum of 255 events. Once the unit records
Event 255, the unit ignores all subsequent events.
•
Fill and Roll Over allows the unit to continue to record events in a continuous loop beyond
Event 255. Once the unit records Event 255, the unit rolls over the event log and continues
to log events beginning with Event 1 – overwriting the previous 255 events.
Set-RTC
AGC 1:1 1:N
Date:26/10/14
100%
Display EventLog
Circuit-ID Firmware
.
dd/mm/yy
6–68
Revision 4
MN-CDM760
()
()
