SLM-5650A Satellite Modem
Base Modem HTTP Interface
7.3.4.2 Stats | Event Log
Use this read-only page to view a scrollable display of recorded modem events.
Modem Event Log
• (Event #) Date / Time: The first three columns display the event by the order in which it was
logged, along with the date and time the event was recorded.
• Type: The event is identified by its type in this column. Four event types are classified:
o Info
o Unit.
o Tx Traffic
o Rx
Code: Click on a hyperlinked fault code to display a page that describes the error code bit
•
positions.
Click [Refresh] to update the display with the most recently logged events.
Click [Clear Log] to clear the log. Once the log is cleared, the next time [Refresh] is clicked any
new events are logged and numbered beginning with '1'.

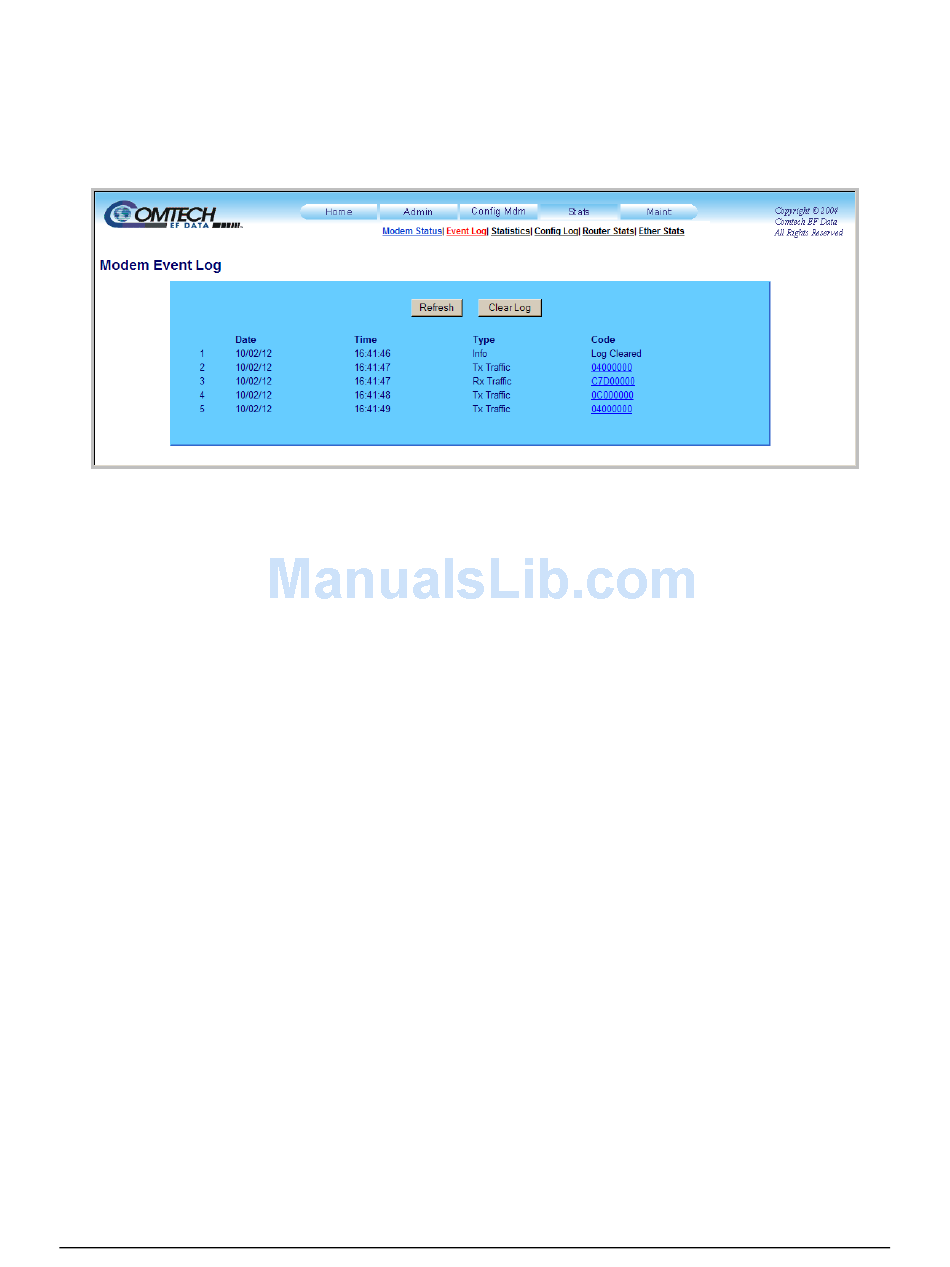

Figure 7-12. Stats | Modem Event Log page

Traffic.
7–16
Revision 8
MN-SLM5650A
